Could someone check my math(s) on this one?

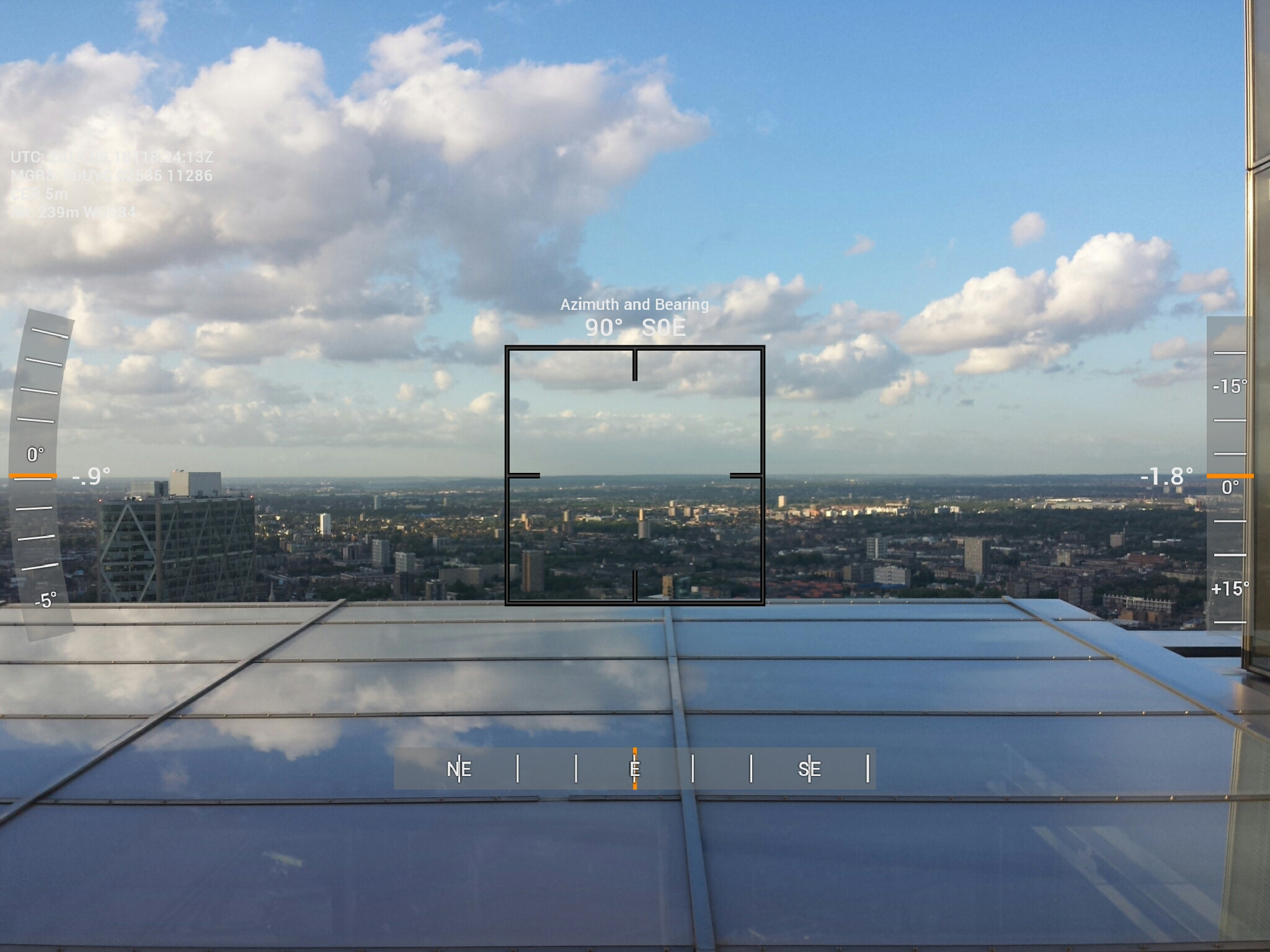

Picture taken with a theodolite app from a skyscraper in London:

We have altitude of 239m (769 feet) and I'm going to assume the horizon is at the same ground level (about 115 feet above sea level), which I think makes it 31 miles away.

Given those figures, I come up with an expected angle of -2.2°.

Is that right? Pretty close to what's displayed...
