Debunked: Claim MH 17 wreckage engine fan is wrong size

[derwoodii]

The claim is that the seen engine fan is too small to be from MH17 - 777




It would seem they have missed that these fan engines have many stages and that the larger 1st stage fan section not designed for heat or force has been destroyed in the crash.



[Teejoo]

The claim is that the seen engine fan is too small to be from MH17 - 777




It would seem they have missed that these fan engines have many stages and that the larger 1st stage fan section not designed for heat or force has been destroyed in the crash.

View attachment 8414

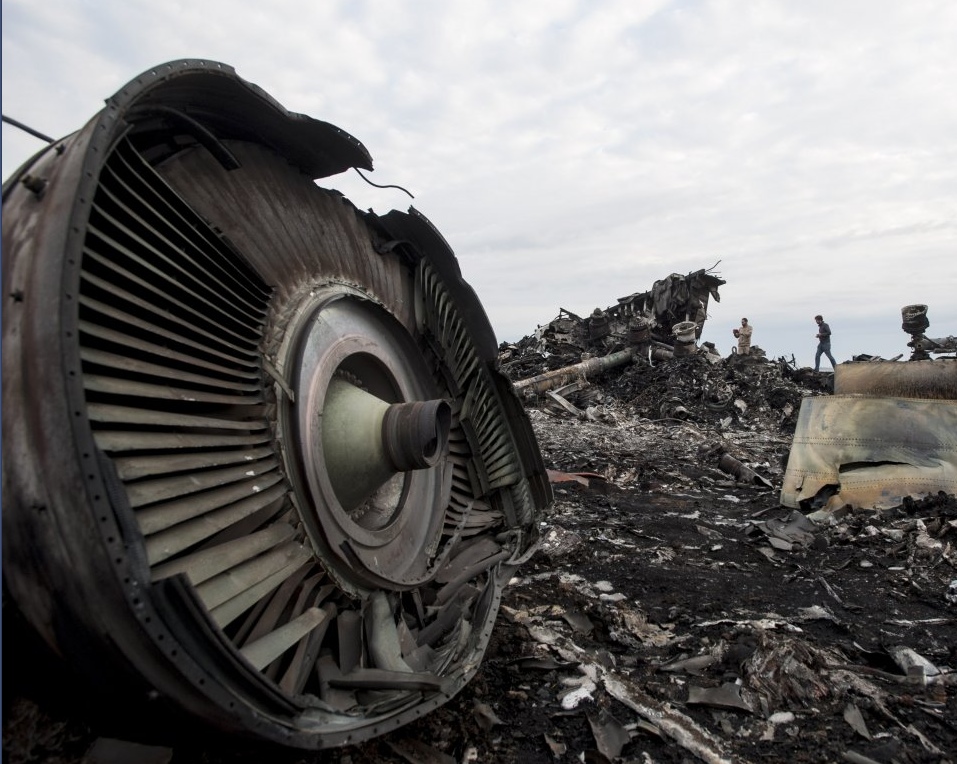

And what can be seen on this picture? Yes, it's the fan of one of the engines



[Mick West]

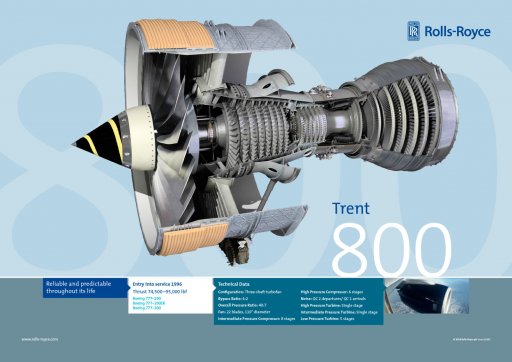

MH17 had Rolls Royce Trent 892 engines
http://www.rolls-royce.com/Images/trent-800-poster.html

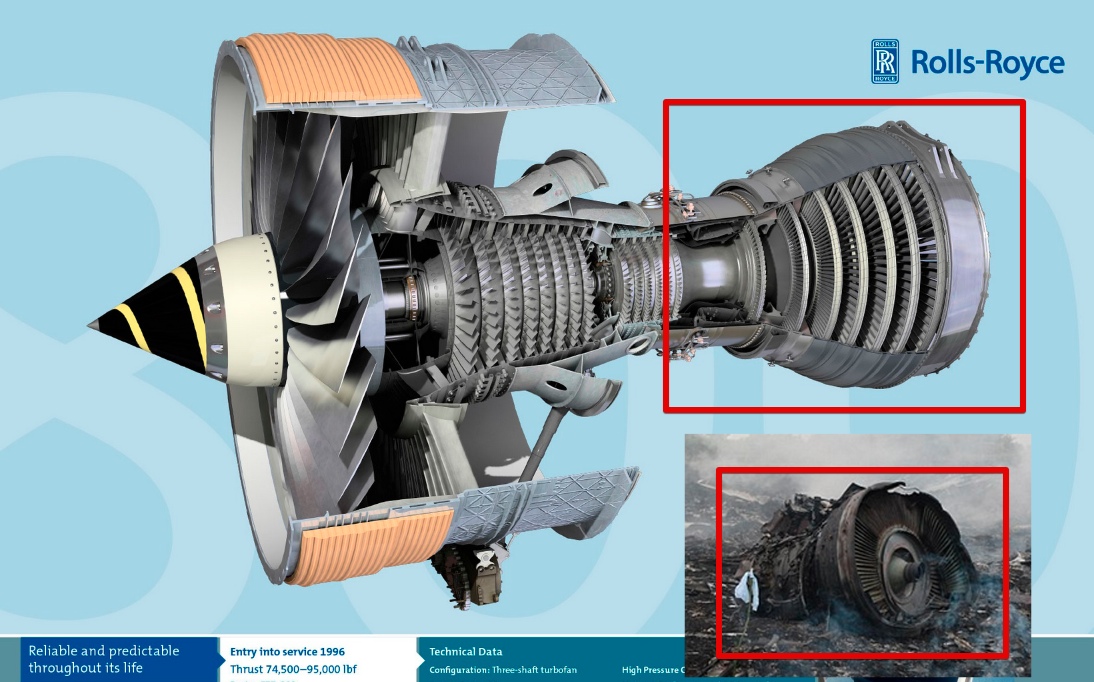

The smaller fan with the large number of closely spaced blades is from the low pressure turbine at the back of the engine

You can see the multiple stages here:
