Rosetta: Alien structures

RFMarine

RFMarine

Member
again we have the magic of photoshop and pattern recognition claiming to see structures on the comet being orbited by the spacecraft rosetta. Once the lander philae lands expect more

Quick google:
http://www.forbiddenknowledgetv.com...ta-imagesof-alien-buildings-on-comet-67p.html
External Quote:

On August 11, 2014 the YouTube publisher called "secureteam10" claims to have received an email sent through an anonymizing proxy server, from a spoofed email address, claiming to be from a current employee at the European Space Agency (ESA), which secureteam10 describes as a "Monumental find." Per the description, the emailed attachments were undoctored, raw images recently taken by the ROSETTA space craft of Comet 67P, revealing the true nature of the "space rock". Namely, that an outbuilding and a disk-shaped object appear on the unretouched version sent of this photo, differing from the images officially released. These are compared with one another, along with the alleged, decades-long, true back story that motivated this mission to capture images of this specific "space rock" out of so many others, out there. The publishers of secureteam10 say, "Stay tuned for updates as soon as we get them!"
And the video (why this had to be sent through so many hoops when it was publicly released is beyond me):


Typing up some points as I view it:

The ESA does not claim it was randomly chosen, and it was not from millions of candidates. Targets for probes are never randomly chosen. Orbital mechanics are a bizarre and nonsensical thing, and it's all ruled by delta-V. 67P was chosen because, out of the handful of candidates, it required by far the lowest delta-V for a landing attempt. Faster comets like Sliding Spring would take too much delta-V, sungrazers like ISON might not survive to the rendezvou time (and in fact it didn't), and short period comets tend to be too depleted from repeated passages to provide the data desired. 67P was chosen out of only a few remaining candidates, and not randomly.

Pretty much everything the email says about the comet is utter nonsense - and I'm not talking about the secret reasons for sending a probe or the alien stuff yet, but fundamental facts like what it's made out of, and even who launched the mission (despite claiming to work for the ESA, the email slips back and forth between talking about it as an ESA mission and a NASA mission).

The video makes a strong point of saying these are original undoctored versions of the images not released to the public, but they're all the same ones already available from the mission website and academic resources.

At 3:25, the video zooms in on a rectangular looking feature claimed to be a building. This feature does stand out, but it's not at all rectangular. It's near the limb of the comet, and is sharply sloped away from the camera, yet rather than appearing sloped to the camera, the face presented to the camera is the rectangular one. The features supposedly airbrushed out are still visible in the publicity images, the only manipulation done was the brightness adjustment to make it look less washed out.

The other structure is a "fuzzy circle" effect that's something seen in a lot of ROSETTA images. Quote from the ESA's CometWatch blog:
The central part of each frame has a circular "cloud" that is Not due to dust but a self reflection in the camera and is called Narcissus effect by optics designers like me. It is present on all dark frames in the Navcam.
Click to expand...

There are also ROSETTA limb images where the dot is hanging out in space, with the exact same shape.


EDIT: Reading down that particular discussion on the blog, I actually think this might be referring to a separate effect also present in a lot of ROSETTA images and not the small fuzzy circles at the center of some frames.


The "unedited" image is actually the edited one, and the edited one the original - the ESA frequently uses 2x2 rasters from the Navcam to eliminate this and other artifacts and get better views of the comet (the camera's FOV is only about 5 degrees, the probe is too close to the comet to get full images with it anymore).


While I'm at it, a couple other related youtube videos:


In order presented:
UFO: Rock
Castle: Crater
Buddha: Rock that does not in any way look like a Buddha
Antennae: Rocks casting shadows
Arch: Rock (unlike an asteroid, it's conceivable that an arch could form on a comet, at least temporarily, but the shadow is in the wrong direction for an arch - it's convex, not concave)
Building: Rock, I'm starting to think this video isn't really trying.
Crumbled wall: Crumbled something. Guessing another rock. Also starting to regret picking this video to look at first.
Towers: Shadows. Considering they're laying sideways on the ground, kind of hard to call them towers, isn't it?
Platform: Plateau.
"Hairy rock or wtf": slightly blurry rock (note in the image they're using, the limb is blurry all the way around)
Worm: *sigh* seriously? There's two of these, the brightness has to be manipulated to bring them out, and when each one is brought out, the other can be clearly seen to be a solid ridge.
Roman Colosseum: Ok, you know what? You're done, get off the stage.
(stopped watching at this point because seriously?)



This one was actually a pretty exciting find, for the kind of people who get excited about slightly different holes on a rock full of holes (i.e. scientists). That kind of crater chain is something you find when a previously shattered object hits another object. There's a few such structures known on Earth (mostly 2 and 3 crater groups), and many on the Moon, Mars, Mercury, and the moons of Jupiter and Saturn, and of course we observed comet Shoemaker Levy 9 breaking up in the same way before it hit Jupiter. This is actually the second such impact chain ROSETTA has found, since it found one on asteroid (2867) Steins as well.

Exciting from a scientific standpoint, but not particularly interesting.



This one had me stumped at first, but a few things do stand out. The Navcam doesn't produce images with raster lines like that, and the control room for it is modern with LCD displays, lines like that would come not just from a CRT, but an OLD one at that. The Navcam can't track a moving object in real time. It also doesn't take video, though it can take pictures in short succession. Its resolution is substantially higher than that seen here. As the camera (or the comet) turns, there's no shift in perspective or shadows, everything stays entirely flat, even though the comet itself is anything but.

Conclusion: Cropped bits of a single larger Navcam image (or 2x3 raster) assembled to look like a video, with an object added. Note tiling artifacts around the object in the closely zoomed images.




Basically, 67P is exactly what you expect a comet to be: really, really boring, unless you're that special kind of nerd, in which case everything about it is really, really exciting.

I'm a special kind of nerd, of course, and the Philae lander pictures should be coming out later today or tomorrow, so I've been checking CometWatch and Bad Astronomy pretty heavily today.

Last edited:
Out of curiosity, has anybody seen anything on this front since the Philae landing? I wonder if the deafening silence since the anchors failed has resonated with the CTs. The lander's working and has apparently taken pictures, but right now the CSA is more concerned with figuring out if it'll stay where they put it or not than getting science done.

Hevach said:
I wonder if the deafening silence since the anchors failed
Click to expand...

Actually, I heard on NPR this PM that the lander is secure, the anchors fired.

http://www.npr.org/blogs/thetwo-way...ding-european-craft-due-to-make-contact-today

External Quote:
As Ulamec said the lander was secured to the comet's surface by ice screws and the craft had fired its tethering harpoons — and it was now doing its job and communicating with Earth — he sparked an uproar of applause from workers and spectators at the European Space Operations Center in Darmstadt, Germany.
This is such exciting news for "space nerds", eh??

Also to add a sense of "scale", a spokesperson from ESA was asked by an NPR reporter about relative "sizes". The comet is said to be about 2 1/2 miles long, the lander "size of an armchair". (Of course, the "Google Machine" can no doubt provide more accuracy!!).

WeedWhacker said:
Actually, I heard on NPR this PM that the lander is secure, the anchors fired.

http://www.npr.org/blogs/thetwo-way...ding-european-craft-due-to-make-contact-today

External Quote:
As Ulamec said the lander was secured to the comet's surface by ice screws and the craft had fired its tethering harpoons — and it was now doing its job and communicating with Earth — he sparked an uproar of applause from workers and spectators at the European Space Operations Center in Darmstadt, Germany.
This is such exciting news for "space nerds", eh??

Also to add a sense of "scale", a spokesperson from ESA was asked by an NPR reporter about relative "sizes". The comet is said to be about 2 1/2 miles long, the lander "size of an armchair". (Of course, the "Google Machine" can no doubt provide more accuracy!!).
Click to expand...
Anyone know when we might have a glimpse at the first pics from the comet?

I'm surprised no one is talking about the face on Comet 67P. LOL


WeedWhacker said:
Actually, I heard on NPR this PM that the lander is secure, the anchors fired.

http://www.npr.org/blogs/thetwo-way...ding-european-craft-due-to-make-contact-today

External Quote:
As Ulamec said the lander was secured to the comet's surface by ice screws and the craft had fired its tethering harpoons — and it was now doing its job and communicating with Earth — he sparked an uproar of applause from workers and spectators at the European Space Operations Center in Darmstadt, Germany.
Click to expand...
Unfortunately, as of now (2337:28 pst) that does not appear to be the case...the NPR article later added:

"After analyzing telemetry data from the Philae lander, ESA says it seems that the craft's harpoons didn't fire as first thought."

Hevach said:
Out of curiosity, has anybody seen anything on this front since the Philae landing? I wonder if the deafening silence since the anchors failed has resonated with the CTs. The lander's working and has apparently taken pictures, but right now the CSA is more concerned with figuring out if it'll stay where they put it or not than getting science done.
Click to expand...

I would not be surprised at that. If I were in charge, after checking that everything like radio, cameras, solar panel, etc still works I would stop all the science missions (and all the juicy news and photos) and concentrate on finding out 1. why the harpoons didnt fire and 2. are the backups like the spikes on philae's feet enough so that the lander is not falling or drifting away from its landing spot. That probably makes for pretty boring news until they find out what went wrong

ESA blog this morning is reporting there were two bounces, the first one carried the lander about a kilometer out of position and rotated around the vertical axis. It didn't settle into place for over two hours after the first touchdown. Battery and memory are intact and all the data its collecting is getting sent back, but it's not getting as much solar power as they hoped, meaning most of it is probably in shadow.

Since it's not anchored, outgassing from the surface below it would be enough to reach escape velocity and it'd be lost, so it sounds like they're rushing to get the more scientifically valuable data quickly over pictures. They did release this one, though:


Hevach said:
ESA blog this morning is reporting there were two bounces, the first one carried the lander about a kilometer out of position and rotated around the vertical axis. It didn't settle into place for over two hours after the first touchdown. Battery and memory are intact and all the data its collecting is getting sent back, but it's not getting as much solar power as they hoped, meaning most of it is probably in shadow.

Since it's not anchored, outgassing from the surface below it would be enough to reach escape velocity and it'd be lost, so it sounds like they're rushing to get the more scientifically valuable data quickly over pictures. They did release this one, though:

Click to expand...

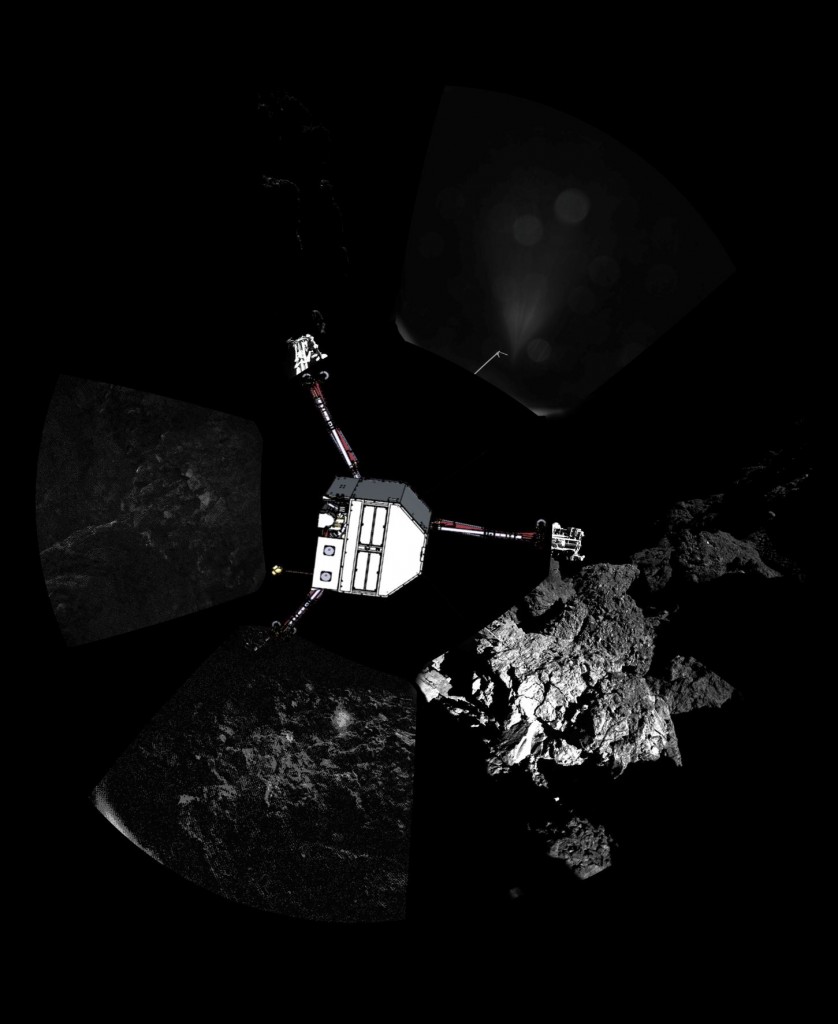

I don't know if this photo is a blessing or if they are upset because I'm sure they wanted 360 pano views of the comet. Now with this wall or boulder in their view they are limited with visibility.

Debra said:

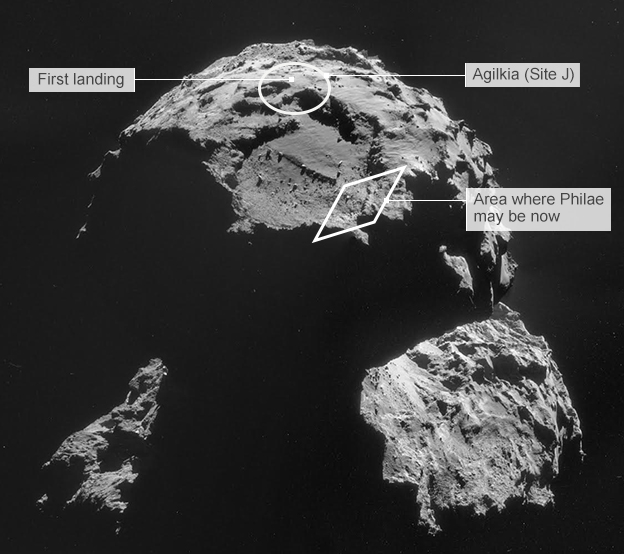

http://www.bbc.com/news/science-environment-30034060

They think it is in the shadow of a cliff, so recharging the batteries might now be a problem.
Click to expand...

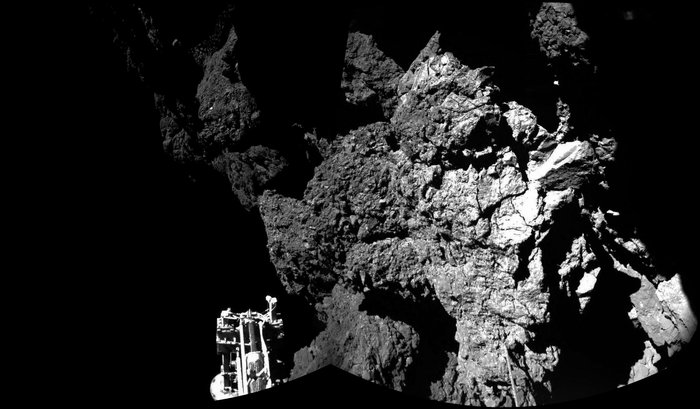

Thanks, based on the initial photos it appeared to be alongside a cliff or giant boulder. It seems like its in a really precarious position. I'm sure the much celebrated landing is giving cause for concern as well. It's amazing this thing bounced off the surface and actually didn't fly off into space. I wonder how they kept it from doing that. Maybe they still had some additional thrust left in the overhead thrusters.

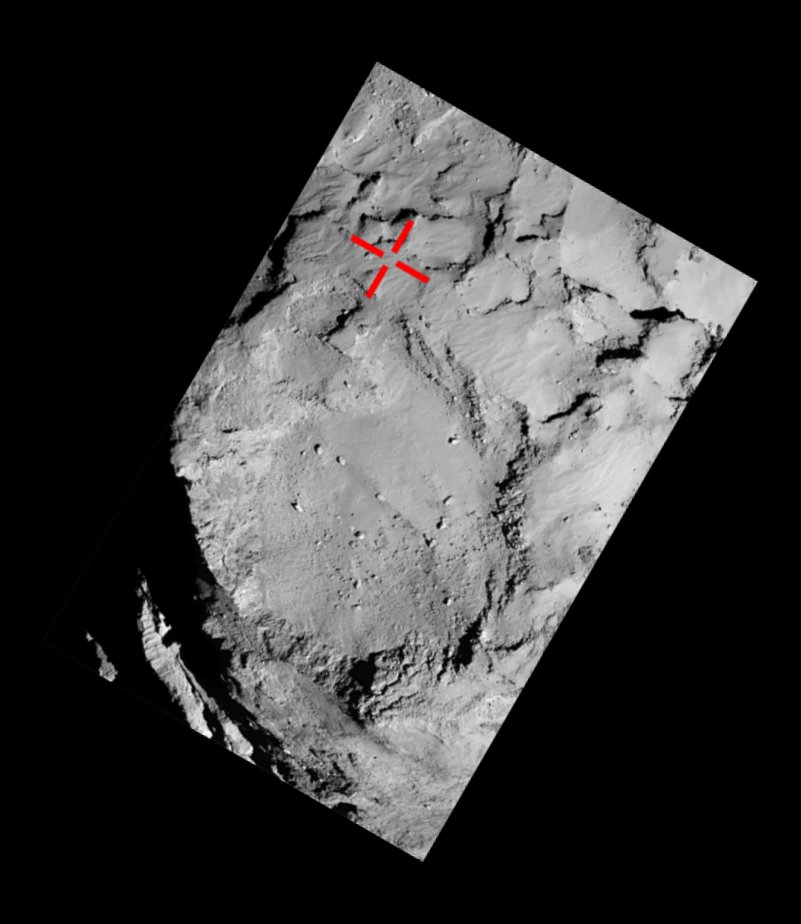

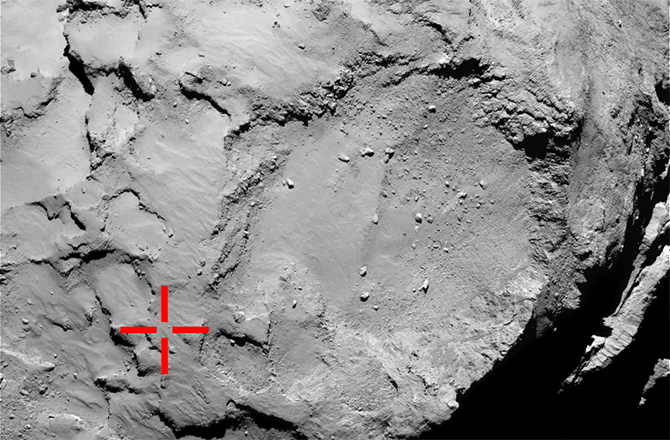

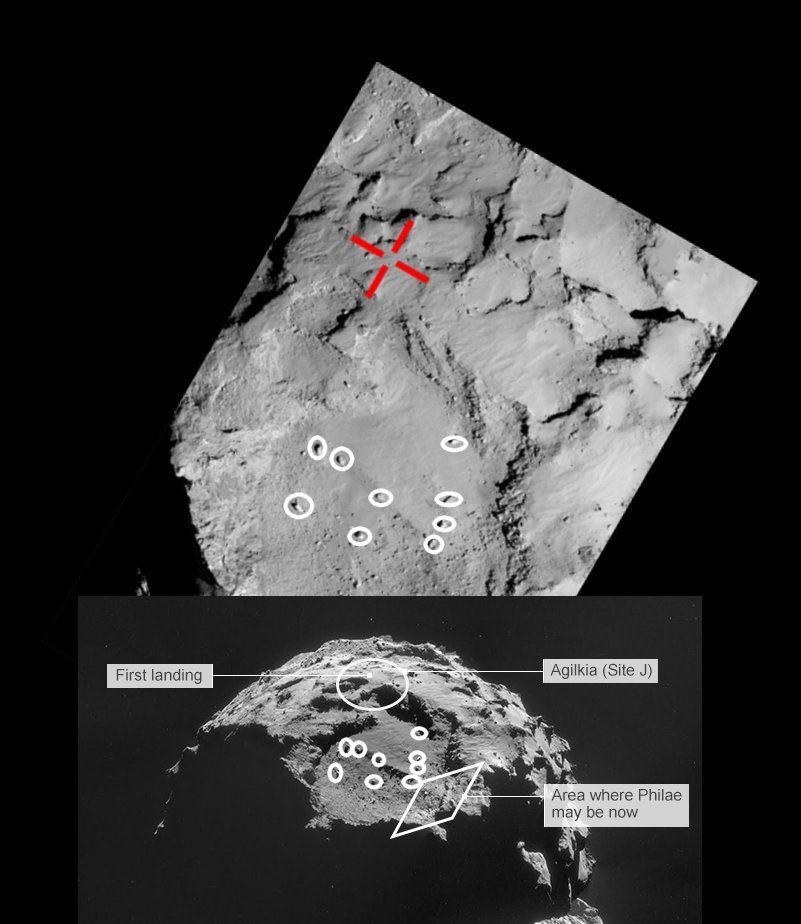

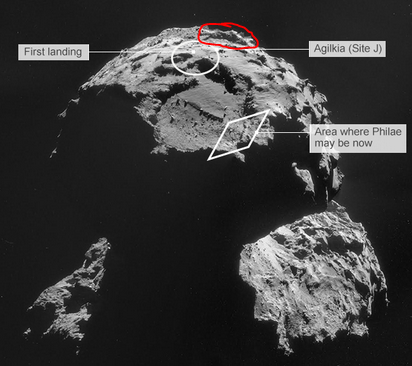

I think the red circle below are actually the cliffs in the lower part of the photo we are discussing, but it's definitely hard to tell based on this view.


http://spaceweather.com/
Sadly, the lander has gone to sleep since it isn't receiving enough sunlight to keep it operating. What a damn shame! Why does it seem like NASA is the only space agency that get's these sort of missions done. I can't believe they didn't prepare for this. Perhaps using a tether would've proved more successful. If they shot a tether into the comet from "x" distance perhaps it could've pulled itself onto the comet.

Jason said:
http://spaceweather.com/
Sadly, the lander has gone to sleep since it isn't receiving enough sunlight to keep it operating. What a damn shame! Why does it seem like NASA is the only space agency that get's these sort of missions done. I can't believe they didn't prepare for this. Perhaps using a tether would've proved more successful. If they shot a tether into the comet from "x" distance perhaps it could've pulled itself onto the comet.
Click to expand...
I understand why you would disagree @WeedWhacker, but honestly it seems like NASA is always at the forefront when it comes to daring maneuvers like this, and they usually always come out successful. It wasn't a put down on the ESA, they've come a long way and are usually partnered up with NASA on most of their missions.

Jason said:
I understand why you would disagree @WeedWhacker, but honestly it seems like NASA is always at the forefront when it comes to daring maneuvers like this, and they usually always come out successful. It wasn't a put down on the ESA, they've come a long way and are usually partnered up with NASA on most of their missions.
Click to expand...

But the ESA are the people who actually landed a spaceship on a comet. NASA didn't.

Mick West said:
But the ESA are the people who actually landed a spaceship on a comet. NASA didn't.
Click to expand...
I wasn't trying to mock the ESA. I have a great deal of respect for this, but it just seems like NASA takes the cake when it comes to difficult 1st time missions. NASA did slam into a comet to collect particulants, and then sent it back to earth to be studied.
I guess I'm just disappointed from space geek perspective. I really had big hopes for this project, and was hoping to gain some insight into the creation of our solar system.

Is there any chance of this lander waking up if the comet begins to rotate differently as it approaches the sun..

Unfortunately, the harpoon anchor system was never going to work. The nitrocellulose system was going to be the first of its kind, but they system was eventually proven to be unreliable... in 2013.... only 8 years after the probe was launched. https://translate.google.dk/transla...ksplosiv-problem-paa-philae-172274&edit-text=

However the orbit of the comet should bring its alignment into a more favorable position to power Philae, but not until August next year http://spaceflightnow.com/2014/11/15/loss-of-contact-with-philae/

Jason said:
Is there any chance of this lander waking up if the comet begins to rotate differently as it approaches the sun..
Click to expand...

THIS was my thought...and you "zeroed in" Jason!! A comet isn't likely to be just a 'blob in space" it is part of the original debris of the fotmation of our entire Solar System, and thus as such "probably" has a rotational aspect in it. NOW.....other space bodies can have their rotaional aspects affected, such as proximity.....(Our own Moon, fort example, is "tidally locked" to the Earth).

(EDIT): As observed, the surviving bodies IN our own Solar System tend to rotate in a similar direction, when referencing an arbitrary "top", or "north". (I use this as a well-known reference to the globe of the Earth. I think that in the future we will reference this for "Galactic Navigation"....or may devise a better reference system).

But comets don't "suffer" this fate, of "tidal lock"....since they are "free and clear" for the majority of their "lives".

MEANING.....this comet that the "philae" has landed on MAY WELL rotate, and allow the lander's solar panels to pick up some "regeneration".

Just a guess.....depends much on the axis of rotation OF this comet, as well as many other factors.

I can't find much information on this one, but comets and asteroids frequently rotate on two perpendicular axes. Which can be a good thing or a bad thing for it coming back into sunlight as it approaches the sun, since it can make for very chaotic patterns.

Philae's problem is that it's blocked horizontally, which is the best direction for its solar panels, and it can't move them to a better angle like the orbiter can. They chose the initial landing site to maximize sunrise and sunset exposure, and now the best they can hope for is maybe it'll get some morning and afternoon exposure later.



And if you want to try and say NASA is the better agency because Philae had problems, remember this is almost the exact same mission NASA rejected in favor of Deep Impact because they felt putting a stable lander on a comet was impossible. The ESA had a 50% success where NASA declined to try.

Jason said:
http://spaceweather.com/
Sadly, the lander has gone to sleep since it isn't receiving enough sunlight to keep it operating. What a damn shame! Why does it seem like NASA is the only space agency that get's these sort of missions done. I can't believe they didn't prepare for this. Perhaps using a tether would've proved more successful. If they shot a tether into the comet from "x" distance perhaps it could've pulled itself onto the comet.
Click to expand...

As long as it didn't shoot itself in the opposite direction in the process ;)

Jason said:
http://spaceweather.com/
Sadly, the lander has gone to sleep since it isn't receiving enough sunlight to keep it operating. What a damn shame! Why does it seem like NASA is the only space agency that get's these sort of missions done. I can't believe they didn't prepare for this. Perhaps using a tether would've proved more successful. If they shot a tether into the comet from "x" distance perhaps it could've pulled itself onto the comet.
Click to expand...

If I had to take bets Jason, Id wager that the way the comet is spinning and moving is different from what was predicted by models and math. Comets are strange critters.. as they warm in the sun the jets that stream out (eventually causing the trail) can cause the comet to begin to tumble. There's no way to predict when or how the comet is going to tumble because the escaping gasses break out in random areas.

Thats most likely why the little guy's sitting there in the dark, the comet hasnt spun back around to a position that brings it back into sunlight again. Math is great.. we can predict a LOT of things, like the orbits of bodies millions of miles away, but mother nature is unpredictable. The comet's gonna do, what the comet wants to do regardless of the plans of mice and men. I wouldnt be too hard on the ESA.. I can understand the pride you have in NASA.. I wish more ppl had that enthusiasm... but we're in uncharted territory here.

Some hopeful good news;

http://www.foxnews.com/world/2014/1...-lander-will-wake-up-again-when-it-nears-sun/
External Quote:
BERLIN – A burst of sunshine in the spring could be just the wakeup call for Europe's comet lander.

Scientists raised hopes Monday that as the Philae lander nears the sun its solar panel-powered battery will recharge, and the first spacecraft to touch down on a comet will send a second round of scientific data back to Earth.
External Quote:
Shortly before that happened, the European Space Agency decided to attempt to tilt the lander's biggest solar panel toward the sun — a last-ditch maneuver that scientists believe may have paid off.

"We are very confident at some stage it will wake up again and we can achieve contact," Stephan Ulamec, the lander manager, told The Associated Press.

That should happen next spring, when Philae and the comet it's riding on — called 67P/Churyumov-Gerasimenko — get closer to the sun, warming up a secondary battery on board and bringing it out of its unplanned hibernation. A few days of sunshine on the solar panels should be enough to charge the battery sufficiently to resume collecting scientific data, Ulamec said.

There's another side to that, though. Without the harpoons, there's a real chance that outgassing could blow Philae right off the planet. Escape velocity is just absurdly low, and its weight is less than a sheet of paper.



Showing my nerdy side, I found this video very interesting. Scott Manley, who is much better at Kerbal Space Program than me, has recreated the mission in the game. It's not the most accurate recreation of Rosetta or Philae (it takes a lot of mods to accurately recreate them), but he recreated the Mars gravity assist maneuver and the insertion at the comet, which is an impressive demonstration of orbital mechanics.



Particularly subtle work for KSP. Even good players like him usually do direct Kerbin-to-target transfers, skipping gravity boosts in favor of absurdly large rockets.


This also puts into perspective the quips about "throwing a rocket in California and hitting a specific key on a keyboard in New York" accuracy. When your rock gets to adjust its path and zero in on the key several times during the flight, it's actually not as hard as it sounds - as long as you got your rock inside the New York city limits, you can correct along the way.

Also, prophetically, his claw failed to arm during his descent, leaving him no way to anchor.

Last edited:
