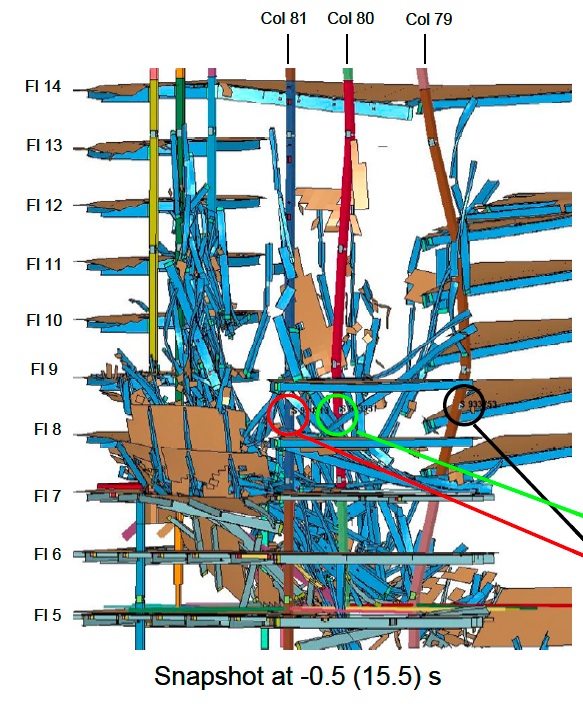

You didn't base it on that at all. You based it on captures from an animation that I made. There are no stiffener plates in the NIST figures that you have there. Just out of interest, which analysis is that (the NIST one, not mine) is it ansys or lsdyna? And do you think that either of these modelled the connection ay column 79 accurately?It's an artists impression, not a physical rendering. I roughly based it on:
![]()
I thinking there would be a range of heating order/amount scenarios, so a variety of girder distortion scenarios.
