Oroville Dam Spillway Failure

Status
Not open for further replies.

jman0war

New Member
Will we be getting new pictures this morning of the damage to the spillway?
I suppose they'd have to stop the flow to do that.

Looks like an old light pole ;-)

Square base - curved top ...
Looks to me like an old "service entrance". The curved part sticks up from a building and the power line for the building comes into it. The square bottom is fastened to the side of the building and electrical conduit brings the wires inside. I suspect it was on the side of a construction shack on this side of the dam, and was disposed of by burying it in the surrounding gravel in the landscaping surrounding the road to the parking lot.

That road below the emergency spillway is obviously sacrificial. It only takes a few days with gravel trucks and asphalt to rebuild the road, and the recreational boaters will find someplace else in the meantime.


skicopper

New Member
There is so much spam on youtube now I can't find reliable current video or images of the spillway. And even news articles are using old images. Does anyone know of a reliable source that is releasing current images or video?


TomPandit

New Member
Peaked at 902 ft regarding elevation. Currently at 889. To reach 852ft, 50ft lower than the peak, the lake will need to drop another 37ft. With the current flow of the main spillway stable at 100,000cfs, will they be able to reach this goal before the rains begin to increase inflows? Of course, it must be considered that each subsequent drop in elevation contains less water volume respectively. Additionally, the current inflows are fluctuating. However, these variables appear to have had negligible impact so far, as seen in the local media's graph, which strongly suggests they will not reach the goal ahead of stronger inflows in time without considerably larger releases from the main spillway. Unless, the increase of inflow volume from precipitation will be delayed enough for the goal to be met.

Screen Shot 2017-02-14 at 10.43.04 AM.png1487086578538.png


Trailblazer

Moderator
Staff member
I'm not an engineer or a hydrologist so I didn't appreciate what 100k CFS meant and what the dam engineers are dealing with. So I looked at Mississippi flow https://waterdata.usgs.gov/mo/nwis/current/?type=flow At Saint Louis the median flow of the Mississippi is 121,000 cfs. Holy cr&p that's a LOT of H2O, unless I have missed something. I kept checking to see if I had an order of magnitude error but I don't think so. Did I miss something?
Sounds about right.

The flow over Niagara Falls is maintained at 100,000 CFS (except at night when they switch the falls off ;)).


deirdre

Moderator
Staff member
Correct me if I am wrong here, but if by a dry spillway you mean just rainfall and not another overflow over the lip, then continuing this work should be OK. Assuming that they will fill the area with rocks and boulders and pour concrete over it in order to mitigate erosion effects, then this should be fine for the weeks to come.
I'm saying 1" of rain isnt going to wipe out the weir. (maybe, hence 'the math'). And they should take their time if that is the case.


PhyllisO

New Member
There hasn't been this much hydraulic excitement here since the heyday of hydraulic mining. "Hydraulic mining in the Sierra Nevada" covers the environmental impacts of that mining as well as other human activities such as logging and grazing, on the draininges including the Feather and Yuba, all the way to the Sacramento delta and San Francisco Bay navigation. This extensive report was commissioned by Congress to the USGS when petitioned by the miners, who had been enjoined from mining, partly because of damage to farmlands and other lands downstream of the mining. Marysville was particularly hard hit by floods which strew gravel all over their lands. https://pubs.usgs.gov/pp/0105/report.pdf
Thanks for bringing up hydraulic mining, which was another form of man-made stripping down to bedrock. I'm looking forward to reading the report. Thanks for posting.


alec

Member
Thank you Rock Whisperer.
That's what we needed.
An additional tool that might help widespread understanding of this event, might be a dated sequence of photographs from the same location, or close to the same location, that record the time and date of the image, the amount of CFS prior to the image, and perhaps a scale.(i.e. distance to dam, vertical scale too)
The first location I'd be interested in seeing would be the concrete spillway. Perhaps the best way to do this would be to organize by CFS and duration of that flow. Obviously a simplistic, but telling, overview. I apologize for not having the access to the imagery, the time, and the skills to this and I apologize for advocating someone else do the work, however , the power of such a presentation and this compelling situation overrides my few social graces.
This approach might also helpfully illuminate other areas of concern.
Thank you metabunk for providing this forum, or as George Orwell might say, double-thank you.

Last edited by a moderator:

Mick West

Administrator
Staff member
Peaked at 902 ft regarding elevation. Currently at 889. To reach 852ft, 50ft lower than the peak, the lake will need to drop another 37ft. With the current flow of the main spillway stable at 100,000cfs, will they be able to reach this goal before the rains begin to increase inflows?
Probably not with a straight line extrapolation, but they will keep drawing down as the inflows increase, so the level will keep falling until inflow reaches 100K cfs. Heavy rain will arrive Wednesday night, with moderate rain for a week. Expected to be less than last time.

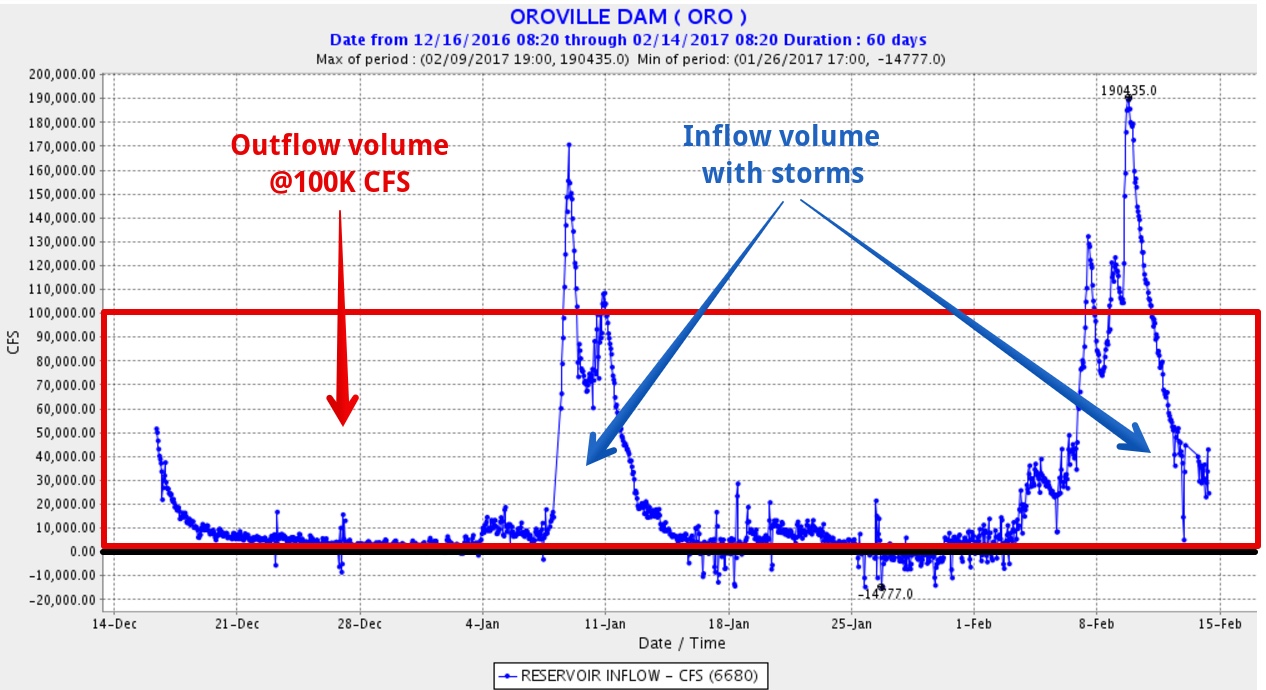

A solid 100K outflow is far more total water than the storms bring. Have a look at the last two months on inflow

The volume of water coming is in the area under the blue line - so pretty much just the two peaks in Jan and Feb.

If they had been running 100K out the whole time, the volume of water outflowed would be the area of the red rectangle, which is several times more than the inflow.

So I think they will be fine, if they can keep up 100K.


Mick West

Administrator
Staff member
Another look at that, focussing on just the last 10 days. You can see we are making some very solid room compared to the amount above 100K in the last storm.

(I should have started that lower rectangle a bit to the right, as it only counts when not overflowing. Close enough).


Again, if they can keep up 100K there will not be a problem from the rain overtopping the emergency spillway again.


TomPandit

New Member
There is so much spam on youtube now I can't find reliable current video or images of the spillway. And even news articles are using old images. Does anyone know of a reliable source that is releasing current images or video?
Probably not with a straight line extrapolation, but they will keep drawing down as the inflows increase, so the level will keep falling until inflow reaches 100K cfs. Heavy rain will arrive Wednesday night, with moderate rain for a week. Expected to be less than last time.

A solid 100K outflow is far more total water than the storms bring. Have a look at the last two months on inflow
View attachment 24589

The volume of water coming is in the area under the blue line - so pretty much just the two peaks in Jan and Feb.

If they had been running 100K out the whole time, the volume of water outflowed would be the area of the red rectangle, which is several times more than the inflow.

So I think they will be fine, if they can keep up 100K.
Thanks for supplying this data! You're quite knowledgable. Do you think the main spillway could become more problematic, such as the failure area creeping upward?


Mick West

Administrator
Staff member
Do you think the main spillway could become more problematic, such as the failure area creeping upward?
That's the most significant risk right now. It looked solid yesterday, so I await pics of the "waterfall" area from today with great interest.


alec

Member
I'm not an engineer or a hydrologist so I didn't appreciate what 100k CFS meant and what the dam engineers are dealing with. So I looked at Mississippi flow https://waterdata.usgs.gov/mo/nwis/current/?type=flow At Saint Louis the median flow of the Mississippi is 121,000 cfs. Holy cr&p that's a LOT of H2O, unless I have missed something. I kept checking to see if I had an order of magnitude error but I don't think so. Did I miss something?
for anecdotal perspective, the CFS i experienced on a three week Grand Canyon trip was 6,000 -12,000 which is in the very lowest range, and not anywhere near the high range...still...it felt like a boatload world of water and I keep that experience in mind here thinking about having that or some high multiple of that coming across that frsh hill face....at minimum, the debris field at the discharge point will increase.
Here's a couple of quotes and a number from today's(Tuesday Feb14,2017 morning edition) LA Times...."Officials say they want to lower the lake level 50' by Wednesday to avoid another overflow on the ...emergency spillway.....peak (aux-spillway) flows were 12,600cfs compared with the designed capacity of 450,000cfs, according to the DWR."


alec

Member
Second place of interest to me if aux spillway is used is the washout in the bend of the road that crosses the spillway.
Might be telling to know where crews are working.
Truly appreciate this moderated forum. Thank you.


Mick West

Administrator
Staff member
Some interesting comments sent via email:

The key point here being that "ripping" (essentially excavating with large-toothed buckets or large clawed attachments) implies softer rock. I'm not entirely sure this is correct, as even the quote above notes the rock was so hard it wore out the ripping claws.

Here's a Quad D9 with ripping attachments. They basically just pull it though the ground. Height seems adjustable for harder terrain.

I suspect they used ripping even with relative hard rock because they needed a lot of precision. However it does suggest some limits on the toughness.


john r

New Member
spillway repairs.png

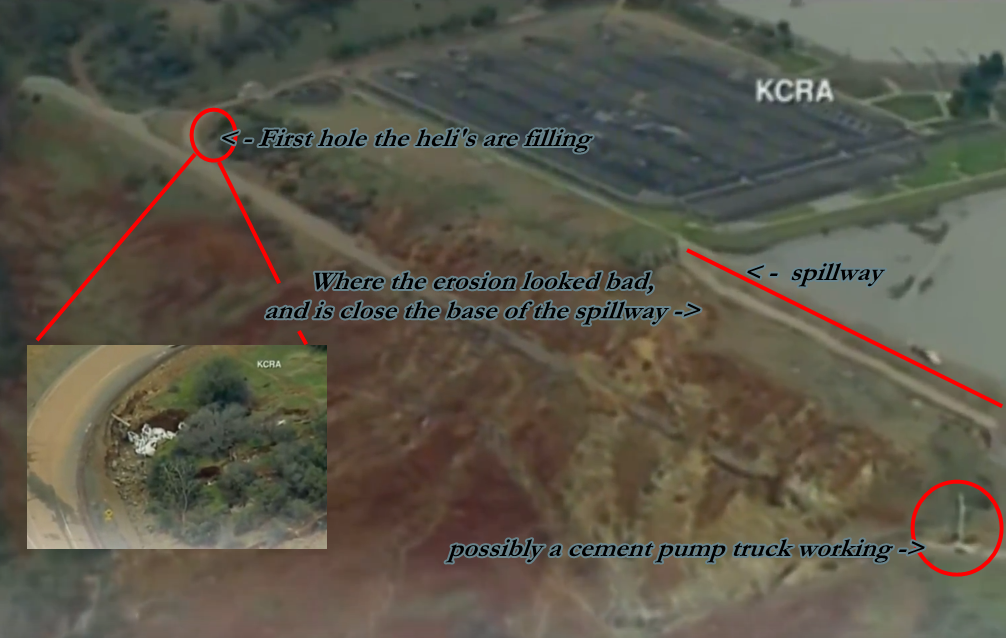

I am curious, the helicopters started working on a hole yesterday at the entrance to the parking lot, WAY to the left of the spillway. Where did that water/hole come from. Water over the parking lot, or under?? thoughts?

The key point here being that "ripping" (essentially excavating with large-toothed buckets or large clawed attachments) implies softer rock. I'm not entirely sure this is correct, as even the quote above notes the rock was so hard it wore out the ripping claws.
Picture on first page of thread shows the intake to the normal overflow area shortly after construction. The sides look as if they were shaped by many parallel drill cuts, not scraping. The plans also show intent to trim the sides of the spillway chute the entire way down the slope, although I haven't seen mention of the method used.

Oh, that same picture shows trees/bushes in the reservoir area near the overflow intake. That implies that specific areas were carved as desired, and there wasn't heavy equipment casually sculpting the whole area.

Edit: found the image.


Edit: Hmm. Interesting. Look on our right side of the spillway. Gravel on the new concrete. That rock has broken down enough that there were too many bits of rock to remove it all during construction.

Last edited:

Mick West

Administrator
Staff member
View attachment 24595
I am curious, the helicopters started working on a hole yesterday at the entrance to the parking lot, WAY to the left of the spillway. Where did that water/hole come from. Water over the parking lot, or under?? thoughts?
Over. The parking lot is essentially part of the spillway (by design) and was underwater.


Mick West

Administrator
Staff member
Edit: Hmm. Interesting. Look on our right side of the spillway. Gravel on the new concrete. That rock has broken down enough that there were too many bits of rock to remove it all during construction.
Gravel? I think you are looking at the fill behind the concrete side walls?

Loose rock up there isn't really an issue. It's what lies beneath.


Pat Dilling

New Member
From a newby to this blog, thank you all very much for the great information. Although some of the technical posting is beyond me, you folks have been a great source of info. I live in Olivehurst, currently evacuated, and have been checking here often. I have been a "user" of Lake Oroville for many years and spent a few years in the IT division at DWR so I have some laymen's knowledge. Trying to forecast how fast they will be able to drop the lake based on elevation is more challenging because the lake is wider as the was rises so the same amount of water released will have different results at different elevation. Perhaps an easier prediction is the time it will take to reduce to a particular volume of water. Watching how many acre feet to get to the TOC might be easier to do.


Wim Röst

New Member
Gravel? I think you are looking at the fill behind the concrete side walls?
The 'gravel' looks like an easy to erode layer. More to the corner right under there is another such (up standing) layer. For the spillway it is important where you can find those erodable weaker layers. And how much of them.


Mick West

Administrator
Staff member
Trying to forecast how fast they will be able to drop the lake based on elevation is more challenging because the lake is wider as the was rises so the same amount of water released will have different results at different elevation.
Yes, the lake will drop more rapidly as the level goes down, as less water needs to be removed, probably not that significant though, for the first 50 feet.


Mick West

Administrator
Staff member
Yes, the lake will drop more rapidly as the level goes down, as less water needs to be removed, probably not that significant though, for the first 50 feet.
I don't think that's a "layer" it's just what's on top of the ground at that point. Possibly just a gravel road for inspection of the spillway wall.


Wim Röst

New Member
I don't think that's a "layer" it's just what's on top of the ground at that point. Possibly just a gravel road for inspection of the spillway wall.

I suppose the red lines represent soft erodable layers. In between (blue) you find the more solid layers. By upheavel and turning in the far past the layers now have this direction.


Don Turner

New Member

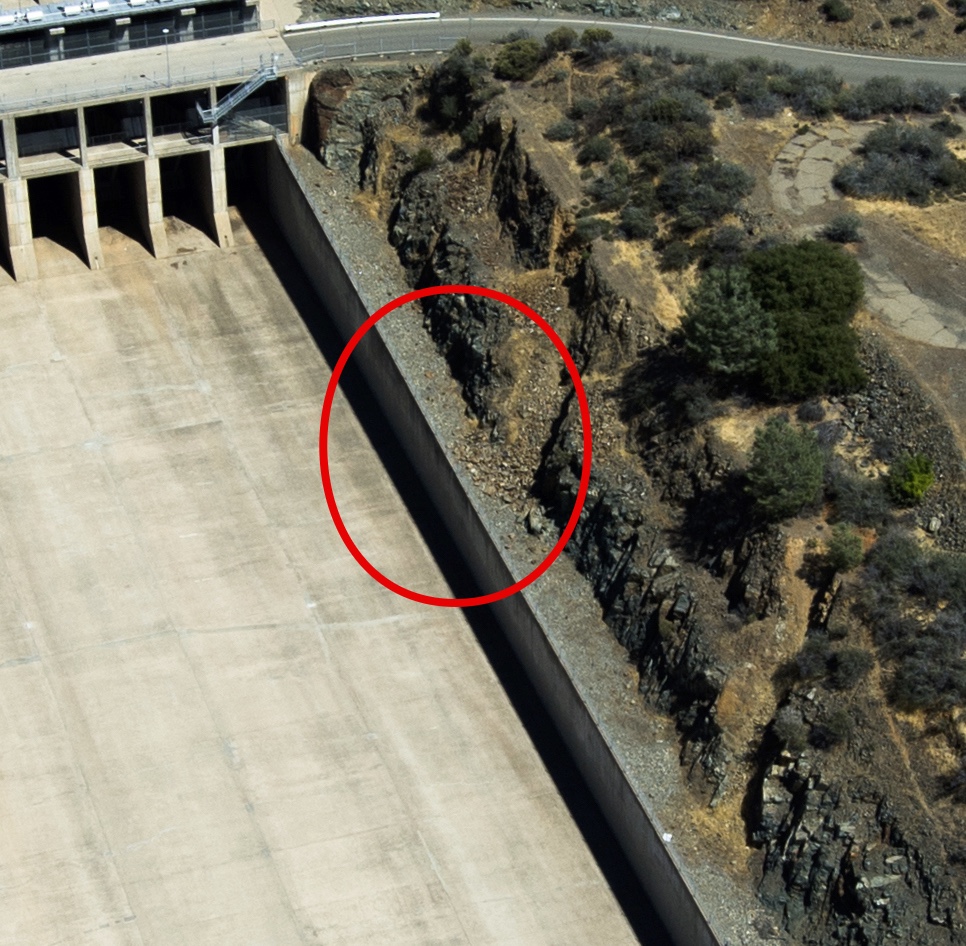

Gravel? I think you are looking at the fill behind the concrete side walls?
View attachment 24598

Loose rock up there isn't really an issue. It's what lies beneath.
I believe what you see is a weathered rock slope that was originally blasted using the standard controlled blasting method. The "gravel" is the continued rockfall from the weak zones in the slope. The weak zones have a higher degree of soil in between each rock fragment and when the soil erodes out, the remaining rock fragment falls.

It is true that it is important what is under the spillway, and presumably the tightness of the rock increased with depth of cut. Without the original geology investigation report, it's not easy to tell from the photo, however.


Mick West

Administrator
Staff member
Yes, the lake will drop more rapidly as the level goes down, as less water needs to be removed, probably not that significant though, for the first 50 feet.
We can approximate the lake as an inverted cone of full radius 15,000 feet and full depth 722 feet, based on the reported depth and area of 25 sq miles (700,000,000 sq feet, so r = sqrt(700000000/PI) = 15,000 feet)

If the depth is d, then the radius will be 15000*(d/722)

So you can work out the nominal volume at certain heights d/3*PI*(15000*(d/722))^2/43559 (the /43559 converts to acre feet), this gives 3.9M AF for the full dam (722 feet), close enough to the nominal capacity of 3.5M AF to demonstrate the formula works.

If we plot the volume of water in AF per five feet of depth, we get:



So the five feet at 20 foot depth, is 77253 AF, five feet at 40 foot depth is 72929 AF, so will drain approximately 6% faster. Not hugely significant.


stuart little

New Member
That's the most significant risk right now. It looked solid yesterday, so I await pics of the "waterfall" area from today with great interest.
I'm not an engineer or a hydrologist so I didn't appreciate what 100k CFS meant and what the dam engineers are dealing with. So I looked at Mississippi flow https://waterdata.usgs.gov/mo/nwis/current/?type=flow At Saint Louis the median flow of the Mississippi is 121,000 cfs. Holy cr&p that's a LOT of H2O, unless I have missed something. I kept checking to see if I had an order of magnitude error but I don't think so. Did I miss something?
#1 as i was going to sleep last night it dawned on me... they won't be putting out any new pics... cuz thats how things tend to work nowdays... secondly to Joe... i fish the Missouri and Mississippi rivers.. there's no way in hell to my mind that the feather river/oroville spillway put out anywhere near the volume of the missouri or the mississippi... but they are the same numbers.. hard to believe it... very hard.


stuart little

New Member

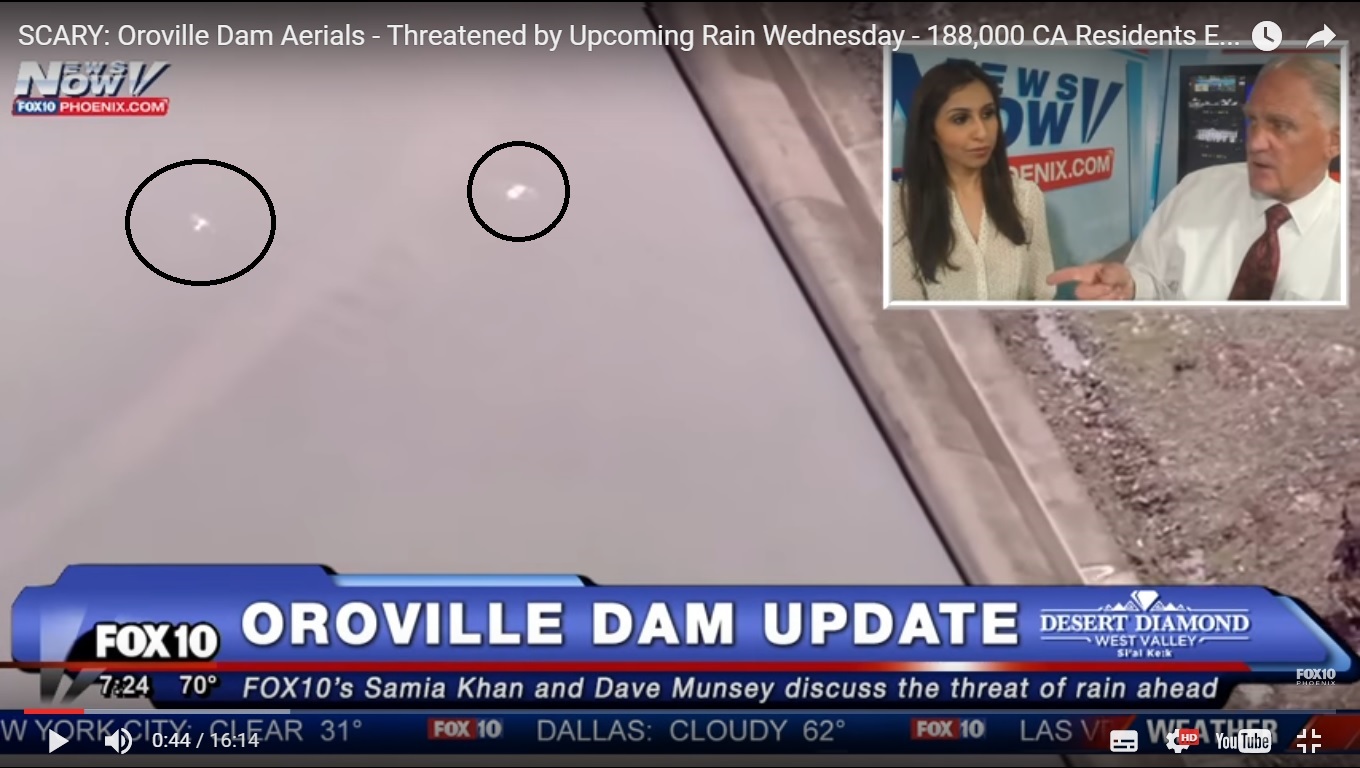

That's what it looks like. The video is from yesterday though, I think if this was a sink/boil it would have developed by now.
maybe just trapped methane... or better insects on the surface and/or glint ...indication of a sink forming... ? maybe not so much but good eye! could be..


Mick West

Administrator
Staff member

Scott Gates

Active Member

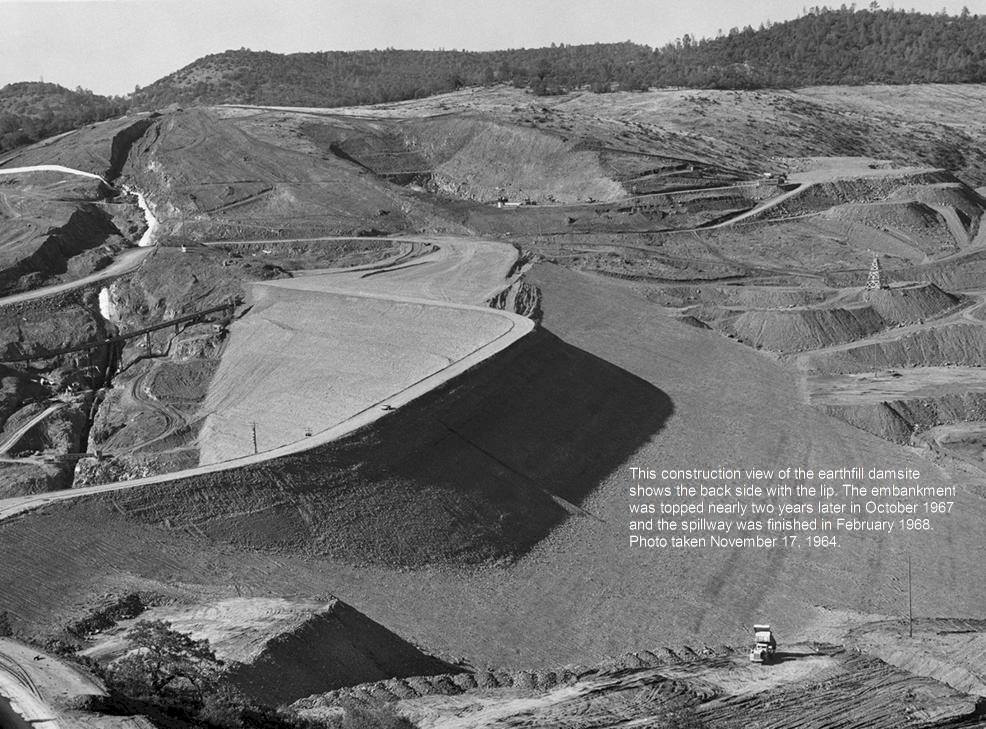

Historic photo during 1964 ... the final top of dam I believe is top of hill to left of the big cut in hillside (which are I believe the water intakes below the main spillway.

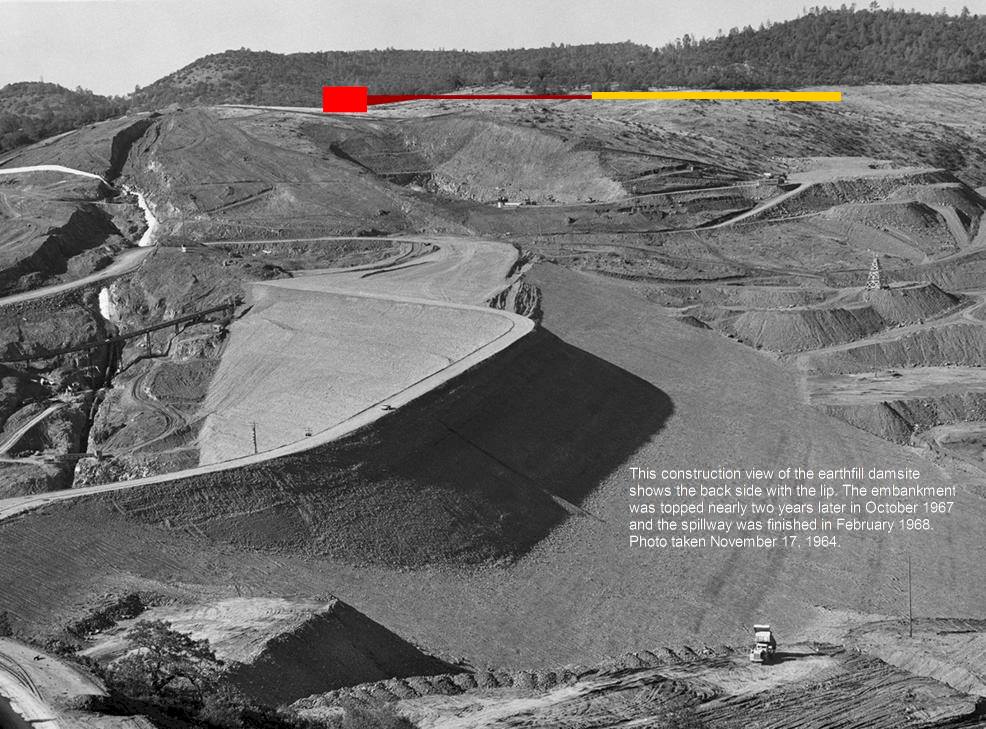

The reservoir side of the dam when finished curves just barely to left as viewed in pic below. The main spillway is appx top of existing hill above and just behind the cut.

The emergency spillway follow the cleared upslope from above the cut to the right and the parking lot is appx at tree line as slope flattens from right to left ...
