Investigating "Active Thermitic Material Discovered in Dust from the 9/11 WTC Catastrophe"

[Mick West]

The experience debunking the angle cut column was interesting, as it showed that even though something may well have been debunked sufficiently for most people years ago, that debunking information is often inaccessible and arguable - sometimes buried in discussion threads. The cut column discussion resulted in an inarguable debunk, with accompanying simple graphics.

So I'd like to do the same with one of the most popular claims - that thermite was found in the remains of the towers. Specifically with this 2009 paper:

http://www.911research.wtc7.net/mirrors/bentham_open/ActiveThermitic_Harrit_Bentham2009.pdf

Active Thermitic Material Discovered in Dust from the 9/11 World Trade Center Catastrophe

Abstract: We have discovered distinctive red/gray chips in all the samples we have studied of the dust produced by the destruction of the World Trade Center. Examination of four of these samples, collected from separate sites, is reported in this paper. These red/gray chips show marked similarities in all four samples. One sample was collected by a Manhattan resident about ten minutes after the collapse of the second WTC Tower, two the next day, and a fourth about a week later. The properties of these chips were analyzed using optical microscopy, scanning electron microscopy (SEM), X-ray energy dispersive spectroscopy (XEDS), and differential scanning calorimetry (DSC). The red material contains grains approximately 100 nm across which are largely iron oxide, while aluminum is contained in tiny plate-like structures. Separation of components using methyl ethyl ketone demonstrated that elemental aluminum is present. The iron oxide and aluminum are intimately mixed in the red material. When ignited in a DSC device the chips exhibit large but narrow exotherms occurring at approximately 430°C, far below the normal ignition temperature for conventional thermite. Numerous iron-rich spheres are clearly observed in the residue following the ignition of these peculiar red/gray chips. The red portion of these chips is found to be an unreacted thermitic material and highly energetic.

I took some steps along this road with the post discussing the misidentification of "abundant manganese" via X-EDS, which taught me a little about the X-EDS process and problems. Jones, it seems, had difficulty correctly interpreting X-EDS back in 2006. Perhaps there were similar errors in the 2009 paper?

I recognize this is old ground, however my goal here is to produce a go-to debunk of the paper using past, synthesizing past debunks with any more recent information, and presenting it in an accessible manner.

So let's begin by gathering the past debunks, much of which was done deep within the JREF/ISF forum.

SE Jones, crawling under the name of Niels Harrit as lead author, published their study "Active thermitic material found..." of red-gray chips in 04/2009 in a pay-to-publish "paper" of Bentham publishers. Within days, debunkers had noticed that the hexagonal platelets in some of the chips is almost certainly kaolin clay, an aluminium silicate, which is essentially inert, of no use in any thermite preparation, and an ingredient of many paints. Also, it was clear almost immediately that the rhomic particles of hematite are simply red pigments - the very thing that makes steel primer paint red.

In 2010 or 11, Sunstealer at the JREF forum found an SE Jones presentation with XEDS analysis of actual paint from the external columns of the twin towers - it was a very good match with the red-gray chip from the Bentham paper that they soaked in MEK solvent to, purportedly, show that the aluminium is separate from the silicon - figur 14 in the Bentham paper. That paint ("Tnemec Red") has no aluminium silicate (such as kaolin) in its recipe - and that chip also was no match at all for the chips (figures 6 to 11) that contained the kaolin plates.

In summer 2011, the late Czech chemist Ivan Kminek discovered a second, different paint recipe used in the twins: The shop primer of LaClede steel manufacturer, who made the floor trusses.
This recipe does contain aluminium silicate, and simulated XEDS charts of that recipe are an excellent match for Harrit's and Jones's figures 6-11!

In early 2012, James Millette sent his analysis report of red-gray chips from another batch of WTC dust samples to Chris Mohr of the then JREF/today ISF forum. Clearly, the chips that best matched the Harrit/Jones main chips contain kaolin, hematite pigment, and epoxy binder - just like the LaClede primer.

That is the last achievement in this issue so far. Current status: Chips are primer paint - very little doubt.

There are small problems with Millette's report:
1. The chips I mentioned do not show a trace of strontium in Millette's analysis, as they ought to, if they are LaCLede primer - the recipe calls for a small amount of strontium chromate primer. However, we know from two of Jones' co-authors, Niels Harrit and Jeff Farrer, that THEY found strontium and chromium!
2. Millette didn't try to identify any of the other of various different "kinds" of chips, that quite certainly represent different paint recipes

Oy's summary likely refers to these thread on ISF (formally JREF)

• WTC Dust Study Feb 29, 2012 by Dr. James Millette
• Thread to Discuss The Excellent Analysis of Jones latest paper . [Sunstealer analysis]
• Chris Mohr's YouTube Part 23 Epilogue: WTC Dust Update; Saying Goodbye to 9/11 Truth
• The sad case of Niels Harrit

Which in total contain over five thousand posts. Discussion continues to this day in:

• Any Updates on Mark Basile's Study?

So what I'd like to do is create a simple yet deep summary of the evidence for paint, and present it in a a permanently findable format with nice large graphics, and maybe a short explanatory video.


More useful references:

http://oystein-debate.blogspot.com/2011/03/steven-jones-proves-primer-paint-not.html

Thursday, March 31, 2011
Steven Jones proves primer paint, not thermite
In their paper "Active Thermitic Material Discovered in Dust from the 9/11 World Trade Center Catastrophe"[1] of April 2009, the authors sought to identify the chemical nature of tiny "red-grey chips". In November 2009, one of the authors, Steven E. Jones, presented new data in Sydney, Australia[3]. This new data proves that the authors had looked at two different materials, and that one of them is primer paint from WTC steel. At the same time, it invalidates two of the main conclusions of the paper, namely Conclusion 3 ("Elemental aluminum became sufficiently concentrated to be clearly identified in the pre-ignition material") and Conclusion 6 ("From the presence of elemental aluminum and iron oxide in the red material, we conclude that it contains the ingredients of thermite."), as well as the main conclusion ("we conclude that the red layer of the red/gray chips we have discovered in the WTC dust is active, unreacted thermitic material...")



[Mick West]

Likely this has come up before, but looking X-EDS (EDX) and SEM pics of kaolin I found this paper:
http://nopr.niscair.res.in/bitstream/123456789/2251/1/JSIR 67(10) 812-818.pdf
Which contained such similarities to the Harrit paper that I was momentarily confused as to which one I was looking at:

Second image is from Harrit, with a spectra overlaid and scaled.



[Mick West]

I've always wanted some red/grey chips of my own, and it turns out I had them all along.

That's a steel wheelbarrow that's been outside for years. There's rust, but there's also lots of red paint

So, I hit it with a hammer.

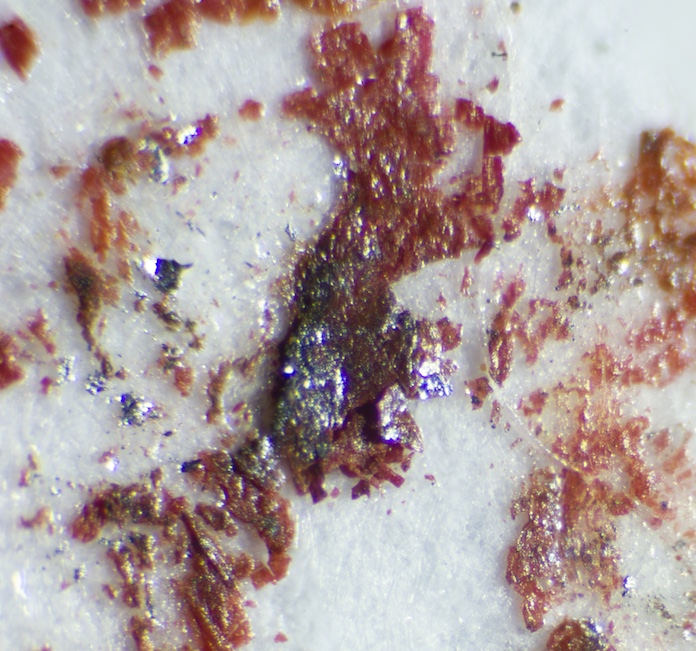

Collected a bunch of flakes. Lots of rust, but some chips of paint.

Found one!

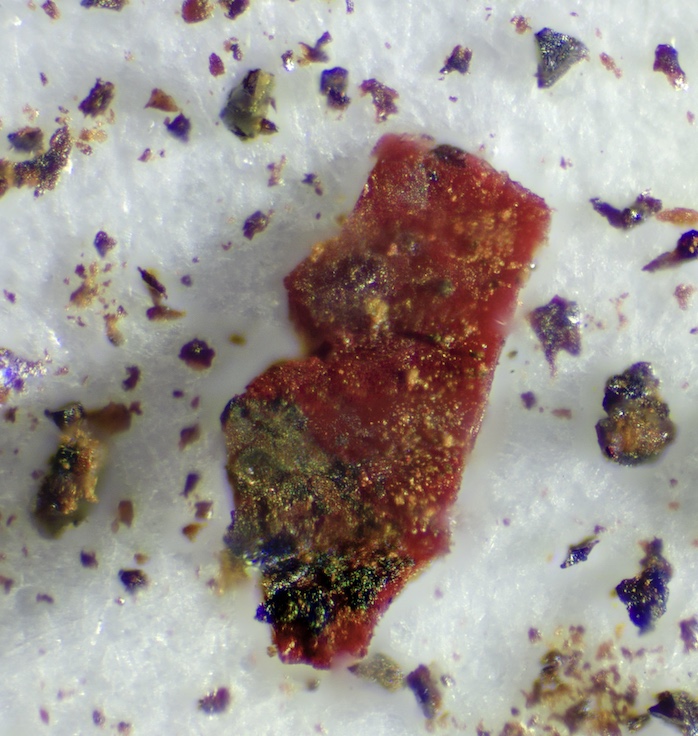

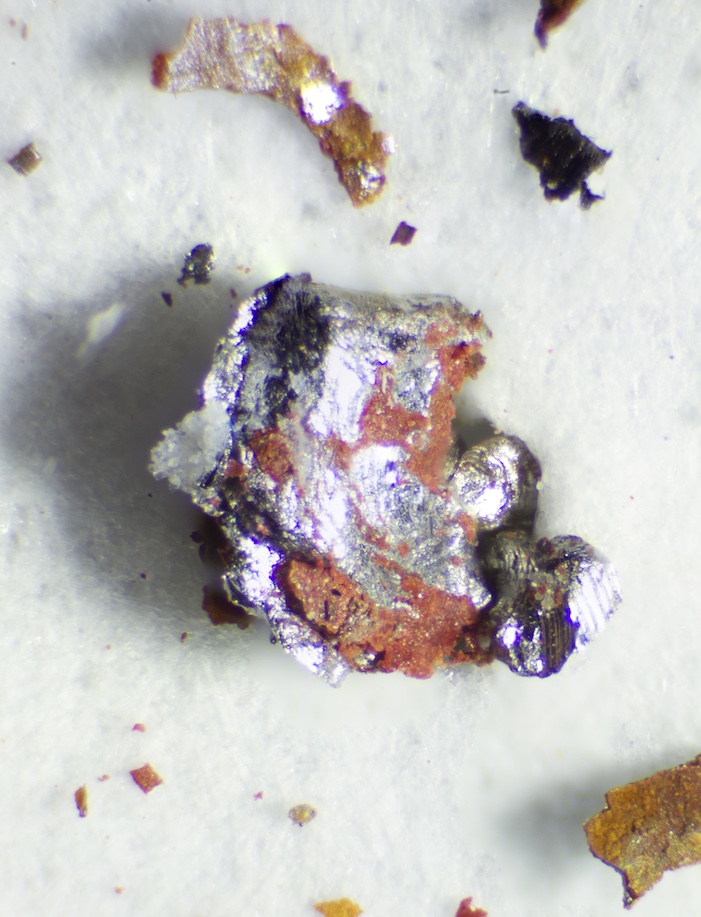

It's red on one side, and grey on the other:

Viewed edge on

It's a red/grey chip, and I've got a wheelbarrow full of them!



[deirdre]

sorry to interrupt.. are ae911 saying these truss things are literally covered in thermite?



[Mick West]

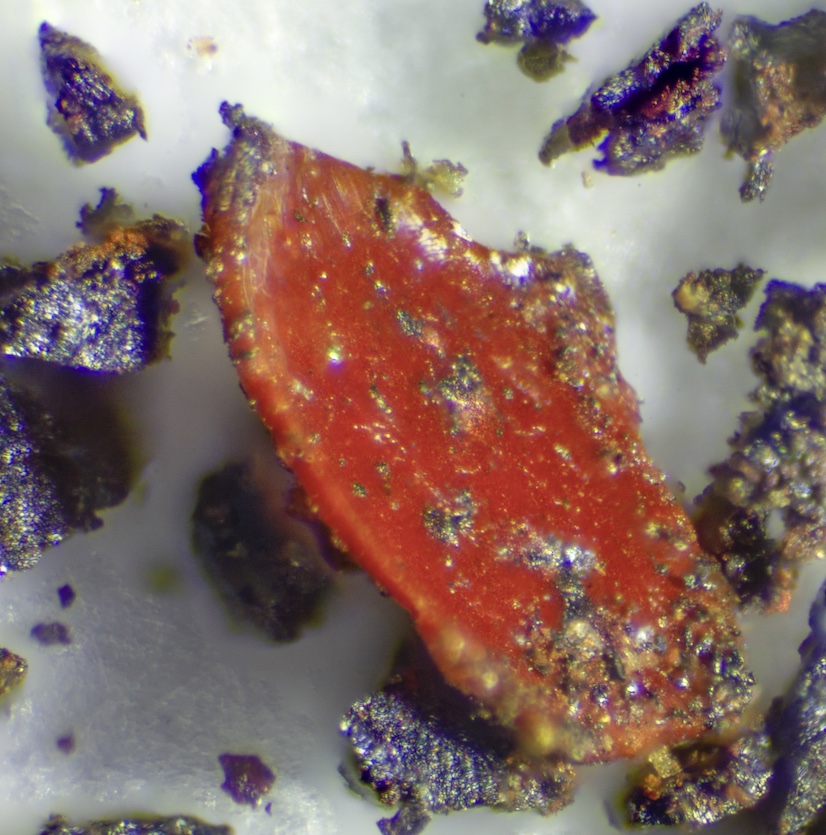

I bashed off a bunch of pain chips from my red painted steel wheelbarrow and waved a butane flame over them. Result = iron microspheres

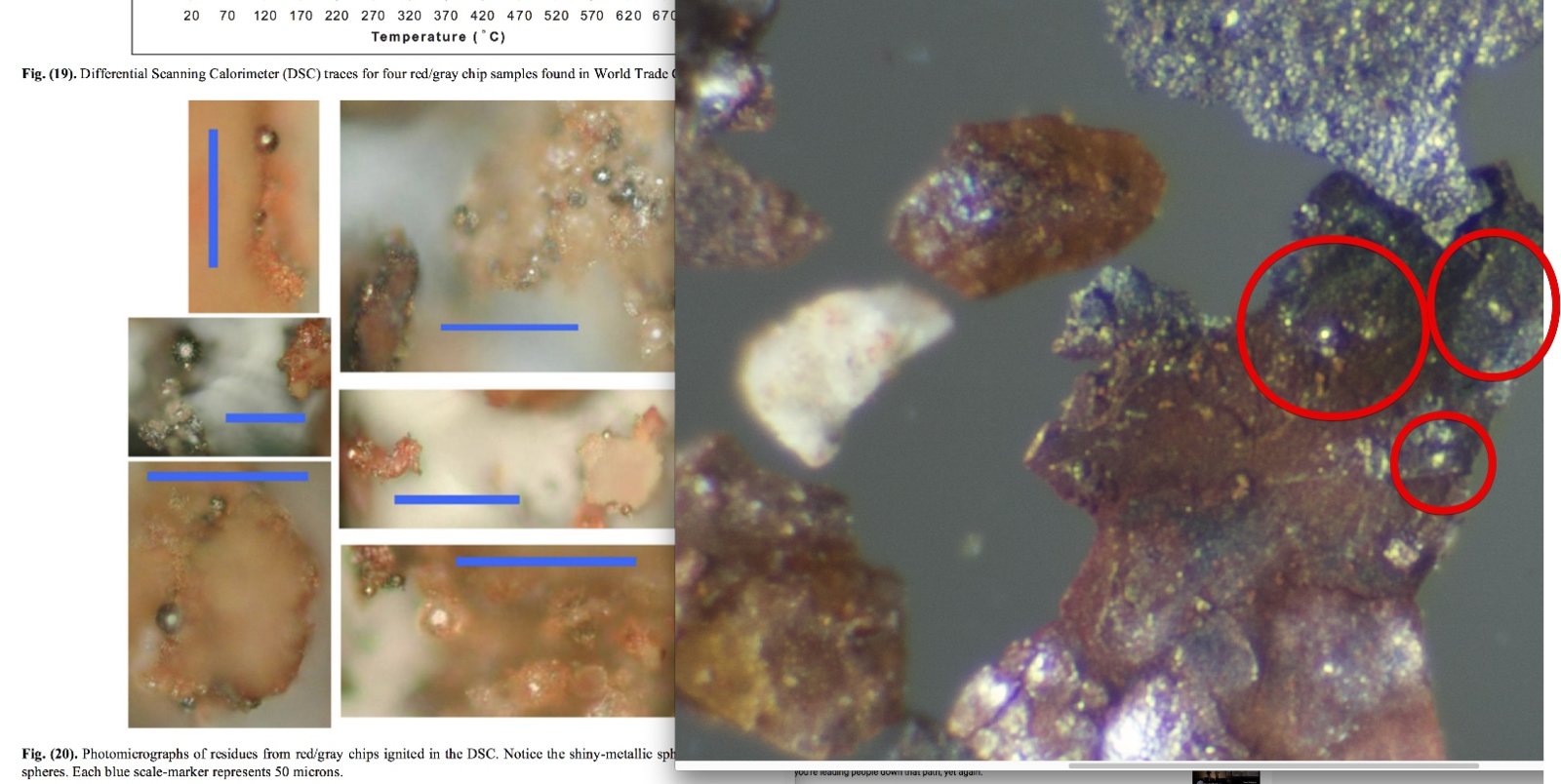

Here's a scale comparison with the Harrit microspheres (left) and mine (right).

View attachment 31573

Of note, in both their photos and mine the red layer appears undamaged. Curious, since that's supposed to be the one that's nanothermite. What seems to have happened is the iron oxide layer has "burnt" (perhaps with some of the paint, of some intermediate layer), and created some iron microspheres.

Added a 50 micron blue line. The range of sizes of shiny microsphere is very similar to those in the Harrit paper.



[Mick West]

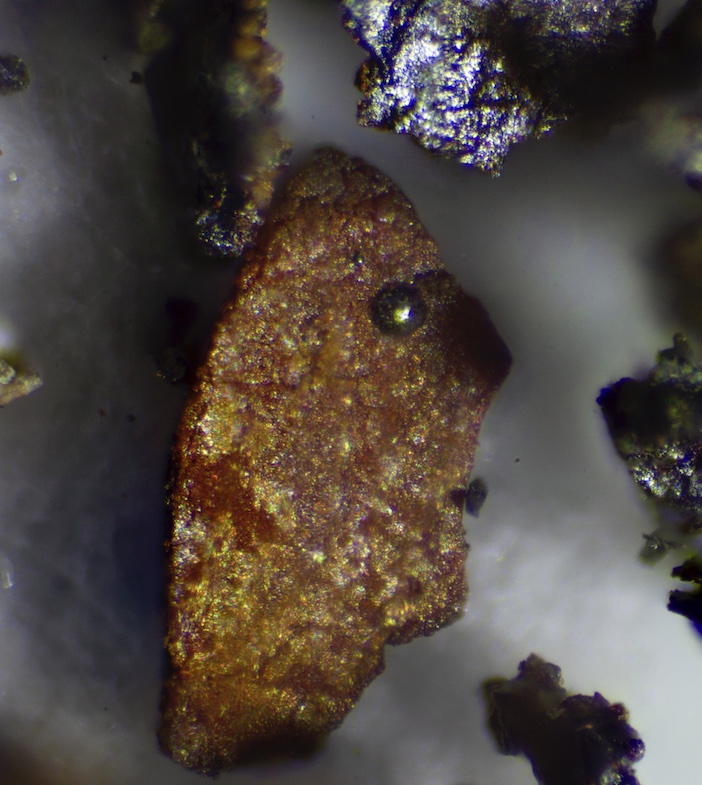

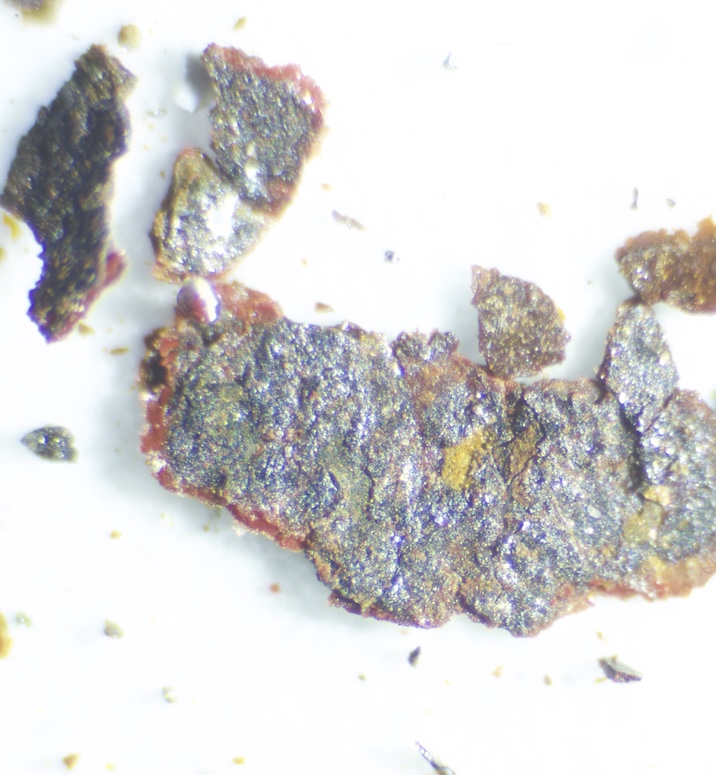

Here's a shot at imaging from the side, so you can see the shape a bit better (different chip, they get lost)

Again, unburnt paint, molten iron.



[Oystein]

I am away this weekend and only checking a few sites before nodding off to sleep.
Hint:

Do not conflate the topic "what are these chips" with "what are they not" or "are they thermitic". There are several grave problems with Harrit et al that render their conclusion "thermite" untenable and ridiculous, with no need to come up with a different concusion.

I love however your micrographs!!!



[Mick West]

Do not conflate the topic "what are these chips" with "what are they not" or "are they thermitic". There are several grave problems with Harrit et al that render their conclusion "thermite" untenable and ridiculous, with no need to come up with a different concusion.

Agreed, however it's also good to have a reasonable alternative explanation, even if it can't be proven 100%.



[Mick West]

I was wondering how to make a paint chip as close as possible to those found in the WTC dust. The obvious candidate is the primer paint on the floor joists (trusses)

This image above shows how they were mangled in the fall, and this is probably one of the more pristine examples.

Here's a specification for the paint used.
http://ws680.nist.gov/publication/get_pdf.cfm?pub_id=101042 (appendix B)

So there's several issues

1. Paint. Is there anything on the market I can get a can of that's a close match? Can I mix it from other things?
2. Steel. What should I apply it to? A piece of A36 uncoated steel sheeting? How to clean the surface?
3. Application. Presumably spray-on? What does "bake" mean? Heat the steel to 350°F before or after application? How to get it 1 mil (1/1000") thick?
4. Aging. How long should I leave it? Should I simulate any weathering, heating cooling cycles?
5. Flaking. How do I make flakes? Bend the steel? Hit it with a sledgehammer? Heat it? All three, and more?
6. Testing. Beyond heating the flakes, checking for magnetism, and looking at them under a microscope, wha tother tests can I do to see if they match (or don't match) tests done on WTC dust flakes by Harrit, et al?
7. Other. ???



[Mick West]

#1 Paint,
http://ws680.nist.gov/publication/get_pdf.cfm?pub_id=101042

4.2.7 Primer
The trusses supplied by Laclede Steel were shop primed during production using an electro-deposition
process. The formulation for the primer was designated as Formula LREP – 10001 and was found in
Laclede files (see Appendix B). The exact formulation could not be reproduced due to current
environmental considerations. A stock structural steel primer, manufactured by Sherwin Williams and
designated Type B50NV11 (recommended by Isolatek International, the manufacturer of the sprayed
fire-resistive material used in these tests and in the original construction of the WTC towers) was
determined to be an acceptable substitute. The primer was field applied to the trusses after assembly in
the ULN and ULC fire test facilities.

#3 applicaiton
B50NV11
https://www.paintdocs.com/docs/webPDF.jsp?SITEID=SWPROTECT&doctype=PDS&lang=E&prodno=B50NV12

Finish: Flat Color: Gray and Brownish Red Volume Solids: 56% ± 2%, may vary by color Weight Solids: 78% ± 2%, may vary by color VOC: <340 g/L; 2.8 lb/gal

be clean, dry, and in sound condition. Remove all oil, dust, loose rust, loose mill scale or other contamination to ensure good adhesion. Iron and Steel: Minimum required surface prep is SSPC-SP2
Surface Preparation*: SSPC-SP10

Weight per gallon: 12.50 ± 0.2 lb, may vary by color Application Methods Brush, conventional spray, and airless spray. Brush: China bristle Confined to small areas and touch-up Conventional Spray: 50 psi atomization pressure, 15-25 psi pressure, Binks gun: model 18 Air nozzle: 63 PB Fluid nozzle: 63C or equivalent equipment Airless Spray: Unit: 1800-1300 psi pressure Tip: .015" - .019" Filter: 60 mesh Hose: 1/4" Mixing Instructions: Mix paint thoroughly by boxing and stirring or mechanically agitate for uniformity and consistency

B50NV12 is the red one, B50NV11 is grey.



[Jedo]

There are several references in the Harrit et al. paper where they compared their red/grey chips with paint flakes:

In June 2007, Dr. Steven Jones observed distinctive bi-layered chips, with both a red and a gray layer, in a sample of the WTC dust. Initially, it was suspected these might be dried paint chips, but after closer inspection and testing, it was shown that this was not the case.

Red/gray chips were soaked in methyl ethyl ketone (MEK) for 55 hours with frequent agitation and subsequently dried in air over several days. The chips showed significant swelling of the red layer, but with no apparent dissolution. In marked contrast, paint chips softened and partly dissolved when similarly soaked in MEK.

Therefore tests were also performed with a small oxyacetylene flame applied to red/gray chips. Samples were either heated on a graphite block (Fig.22) or held with tweezers in the flame. Several paint samples were also tested and in each case, the paint sample was immediately reduced to fragile ashes by the hot flame. This was not the case, however, with any of the red/gray chips from the World Trade Center dust.

and

7. Could the Red Chip Material be Ordinary Paint?

We measured the resistivity of the red material (with very little gray adhering to one side) using a Fluke 8842A multimeter in order to compare with ordinary paints, using the formula:

Specific resistivity =RA / L​

where R = resistance (ohms); A = cross-sectional area (m2); L = thickness (m).

Given the small size of the red chip, about 0.5 mm x 0.5 mm, we used two probes and obtained a rough value of approximately 10 ohm-m. This is several orders of magnitude less than paint coatings we found tabulated which are typically over 10^10 ohm-m [31].

Another test, described above, involved subjection of red chips to methyl ethyl ketone solvent for tens of hours, with agitation. The red material did swell but did not dissolve, and a hard silicon-rich matrix remained after this procedure. On the other hand, paint samples in the same exposure to MEK solvent became limp and showed significant dissolution, as expected since MEK is a paint solvent.

Further, we have shown that the red material contains both elemental aluminum and iron oxide, the ingredients of thermite, in interesting configuration and intimate mixing in the surviving chips (see Results, section 1). The species are small (e.g., the iron oxide grains are roughly 100 nm across) in a matrix including silicon and carbon, suggesting a super-thermite composite. Red chips when ignited produce very high temperatures even now, several years after the 9/11 tragedy, as shown by the bright flash observed and the production of molten iron-rich spheres (see photomicrographs in Fig. (20) above). Correspondingly, the DSC tests demonstrate the release of high enthalpy, actually exceeding that of pure thermite. Furthermore, the energy is released over a short period of time, shown by the narrowness of the peak in Fig. (29). The post-DSC-test residue contains microspheres in which the iron exceeds the oxygen content, implying that at least some of the iron oxide has been reduced in the reaction. If a paint were devised that incorporated these very energetic materials, it would be highly dangerous when dry and most unlikely to receive regulatory approval for building use. To merit consideration, any assertion that a prosaic substance such as paint could match the characteristics we have described would have to be accompanied by empirical demonstration using a sample of the proposed material, including SEM/XEDS and DSC analyses.

I can't find anything where they specify which paint they used, except in reference 31, which reads

[31] Abu Ayana YM, El-Sawy SM, Salah SH. Zinc-ferrite pigment for corrosion protection. Anti-Corros Methods Mater 1997; 44(6): 381-8. Available from: http://www.emeraldinsight.com/Insig...eraldFullTextArticle/Articles/1280440604.html

So it seems they tested at least for Zinc ferrite corrosion protection paint.

However, as their data shows and as @Oystein correctly mentioned, they probably should have tested it against paint containing aluminium silicates. They have no mention that they used such.

------------
ETA:

So other tests you could do are:

1. put it in methyl ethyl ketone solution for 55 hours +

2. try to burn the paint chips with a oxyacetylene flame

3. test the conductivity / resistance
4. try to ignite them by heating them up to 435°C, and
5. try to obtain microspheres when heated to 700°C



[Oystein]

B50NV12 (B50AV12?) differs from the LaClede shop primer in several regards:
a) It's Alkyd based, not Epoxy
b) It has a much higher percentage of solids (pigments): 78 wt-% vs. 28.5 wt-% (this may be due to the application process, spray-on vs. electro-deposition)
c) No chromate (LaClede has 1.1 wt-% strontium chromate, which is elusive in Millette's study, but has some blips in Harrit's and Farrer's apocryphal data)
d) It's brownisg-red, rather than orange-red, indicating a larger particle size of the iron oxide pigment

It may have been an acceptable replacement in NIST's fire test, but may be of rather limited value for comparison with Harrit's chips.

Better go searching for a recipe that has epoxy binder and also some kaolin.



[Mick West]

I wonder if electrodeposition of paint is at all responsible for the two layers? (red and grey). It seems like this would be a tricky process to duplicate in my garage.

Here's what seems to be something similar:
http://www.chiefbuildings.com/assets/pdf/e-coat.pdf

The Process

To fully understand the benefits of electrocoating,it is necessary to understand the mechanics of the process. We use gray oxide primer carefully balanced with resins, pigments and corrosion inhibiting agents. As processed, resins are water insoluble and must be converted chemically into salts that are easily dispersed in the water.

In electrocoating, our tanks are filled with this water dispersion of paint. The paint particles have a negative surface charge due to the salt formation. The structural members to be painted are connected to the positive side of a powerful DC power supply, giving them a positive charge. The tank itself is wired to the negative side of the power source. When the power supply is activated, the current flows from the negatively charged tank to the positively charged structural steel, causing the negatively charged paint particles to migrate to the steel and be plated to the surface.

The Results

During this plating process, taking one to two minutes, electrochemical reactions take place on the surface of the structural parts, changing the salts in the paint back to their original acid state. The voltages involved (200-300 VDC) act as a kind of electronic pressure to densify the resin, resulting in a paint film not only water insoluble, but virtually 100% solid.

After coating, the parts are baked in an oven, converting the paint films to an enamel composition that is hard, abrasive resistant and it's with this process, superior corrosion resistance is achieved.

It would also seem like this process would explain some of the physical and chemical differences between red/grey WTC chips, and just "paint"

Is it possible that Laclede might have used a two stage coating process? A grey oxide layer then a red oxide/pigment layer? If you look at electrocoating in automobile manufacturing they use multiple layers.



[Mick West]

Application. Presumably spray-on? What does "bake" mean? Heat the steel to 350°F before or after application? How to get it 1 mil (1/1000") thick?

So this question is answered by the above. Not spray on, and baked AFTER the electrodeposition.



[Jedo]

So by electrodeposition they mean the following process, where the paint is in solution, and the object completely dipped into it?



There is also a simpler version of it by using electrostatic charging of the paint particles as the leave the spray nozzle:



or here with an demonstration with / without potential:



On the Wikipedia page on Electrophoric deposition they list some advantages they got from a paper that deals with electrodeposition for nanostructures; there they have the following advantages listed:

• Rapidity


• Low cost


• Free from porosity


• High purity


• Industrial applicability


• Potential to overcome shape limitations or allows the production of free-standing parts with complex shapes


• Higher deposition rates


• Produce coatings on widely differing substrates


• Ability to produce structural features with sizes ranging from nm to μm


• Easy to control alloy composition


• Ability to produce compositions unattainable by other techniques


• The possibility of forming of simple low-cost multilayers in many different systems, e.g. Cu/Ni, Ni/Ni–P etc.


• No postdeposition treatment

So it seems there is no advantage listed from "electrochemical reactions" as cited above, besides the densification of the paint (which is equal to 'free from porosity' I suppose). For I interpret the electrochemical reaction they mention there as simply the hydrolysis of the salt into an acid and a base (on different electrodes), or just having the acid fall out and leaving the solution basic.

I would first spray it with an air spray without electrostatic charging simply.



[Jedo]

Does the Spray-Applied Fire Resistive Material (SFRM) play any role here?

SFRM is composed of cement or gypsum and often contains other materials like mineral wool, quartz, perlite, or vermiculite. The gypsum or cement makes up the majority of the solution and is selected because it hardens as it dries. The other materials are used to help lighten the solution or to add air as in insulator. Chemical hardeners are sometimes used to either speed up hardening or to make the final fireproofing harder than normal.

[Source]

In the WTC they used parlty asbestos, partly mineral wool. But the thickness was up to 3/4". So probably not…



[Mick West]

My poor wheelbarrow is taking a bit of a pounding in an attempt to make some flakes. I suspect it is electrocoated, as it's sure hard to get anything off it.

What I collected was basically dust, nothing over 1mm

Source: https://www.youtube.com/watch?v=j-8gY-YBtmw



[Oystein]

I wonder if electrodeposition of paint is at all responsible for the two layers? (red and grey). ...

... Is it possible that Laclede might have used a two stage coating process? A grey oxide layer then a red oxide/pigment layer? If you look at electrocoating in automobile manufacturing they use multiple layers.

No.

First, we have the specification, and it specifies only one paint.
Secondly, NIST did not think two layers were applied or needed.
Thirdly, the SEM and EDS work by Harrit/Jones/Farrer and also Millette shows the gray layer as iron/iron oxide with bits of carbon, manganese, silicon - a composition consistent with structural steel - which is solid and homogenous, quite different from the epoxy+pigments red layer.



[Mick West]

So by electrodeposition they mean the following process, where the paint is in solution, and the object completely dipped into it?

So it seems:
NCSTAR 1-A1
http://ws680.nist.gov/publication/get_pdf.cfm?pub_id=101000

Chapter 6 – Painting

According to Sec. 601.100, all floor trusses, bridging angles, and incidental structural items in the floor
system were to receive a uniform shop coat of protective paint applied within one year or less of the
delivery date in accordance to the requirements in this chapter. The protective paint was to be applied by
the electro-phoresces process involving a direct current through a deionized water paint bath, which was
to provide an average dry film of 1 mil thickness. Chord angles for trusses were to be cleaned by shot
blasting prior to painting (Sec. 602.100).

First, we have the specification, and it specifies only one paint.

Or does it?

The shop paint was to be in accordance with Pittsburgh Plate Glass (PPG) Company Standard RF-2184
initial tank charging material with PPG red power primer RF-2184 replenishing material or Laclede
Standard Red Chromate Steel Primer, Specification LREP 10001. The red shop paint was to withstand
150 hours of 5 percent salt fog (equivalent to a normal exposure of 18 months) when applied to a clean
rolled steel panel at 1 mil dry film thickness. It was to be tested in accordance to ASTM B 117-64 Salt
Fog Test, and the maximum failure allowed was to be in accordance with ASTM D 714-56. Other
requirements for the painting system and painting of erection marks are contained in Secs. 604 and 605,
respectively.

We only have the specification of the Laclede paint, but it looks like there's also a possible "PPG red power primer RF-2184 replenishing material"?


The "sections" referred to above are from this:
"PONYA (Port of New York Authority). 1967. Fabricated Steel Floor Trusses, Bridging, Beams and Bracing for Prefabricated Floor Units for North and South Towers. World Trade Center Contract
WTC-221.00. (WTCI-71-I)."



[Oystein]

...
Or does it?

The shop paint was to be in accordance with Pittsburgh Plate Glass (PPG) Company Standard RF-2184
initial tank charging material with PPG red power primer RF-2184 replenishing material or Laclede
Standard Red Chromate Steel Primer, Specification LREP 10001. The red shop paint was to withstand
150 hours of 5 percent salt fog (equivalent to a normal exposure of 18 months) when applied to a clean
rolled steel panel at 1 mil dry film thickness. It was to be tested in accordance to ASTM B 117-64 Salt
Fog Test, and the maximum failure allowed was to be in accordance with ASTM D 714-56. Other
requirements for the painting system and painting of erection marks are contained in Secs. 604 and 605,
respectively.

We only have the specification of the Laclede paint, but it looks like there's also a possible "PPG red power primer RF-2184 replenishing material"?


The "sections" referred to above are from this:
"PONYA (Port of New York Authority). 1967. Fabricated Steel Floor Trusses, Bridging, Beams and Bracing for Prefabricated Floor Units for North and South Towers. World Trade Center Contract
WTC-221.00. (WTCI-71-I)."

This is pretty clear IMO: The steel was to be painted with one paint: A red chromate paint. This paint was specified to adhere (either) to the PPG company standard OR to the LaClede in-house standard. It may be possible that some proportion of the steel trusses was painted with the PPG paint instead of the LaClede paint, but there is no mention whatsoever of two layers, or any gray paint.



[Mick West]

This is pretty clear IMO: The steel was to be painted with one paint: A red chromate paint. This paint was specified to adhere (either) to the PPG company standard OR to the LaClede in-house standard. It may be possible that some proportion of the steel trusses was painted with the PPG paint instead of the LaClede paint, but there is no mention whatsoever of two layers, or any gray paint.

I agree with the one layer of paint. I was wondering with this though if this PPG paint might account for some of the differences between paint chips (if such a difference has in fact been conclusively shown)



[Efftup]

Certainly Tnemec Primer has been mentioned repeatedly in discussions and I have certainly seen discussion that there was likely more than one different primer on chips. Millette was not given access to Harrit's chips so had to match by xeds data. He discarded chips that didn't match.Harrit apparently had at least one with different primer. It is of course hard to tell as Harrit's details are a little sloppy. In the paper there are 4 samples mentioned 1. Mckinlay, 2 . Delassio 3. Intermont and 4. White. Then XEDS spectra are shown a,b, c& d apparently corresponding to 1 through 4 but on DSC tests there are 2 Mckinlay samples and no Delassio so these appear to be different chips. Also the peaks are lower for the 2 Mckinlay samples on the DSC and on XEDS chip c shows elements not found in the other 3.



[Tomi]

The paint had no real function other than to make the steel look nice and new. It is sometimes called a holding primer or a works primer. The steel after erection is in an internal environment so there is no risk of corrosion.

Red oxide primers are still used today.

I would expect that the bar hoist floors would be made at a different location to the heavy steel columns. And it would be probable/possible to have a different paint supplier and even a different composition. If it is a big job there may be multiple fabrication centres all of whom would have there own version of a red chromate primer.

It is not an important part of the work and as such there is less control on the outputs.

It would be very unusual to have more than one coat since you are not trying to provide corrosion protection you are only trying to provide a uniform coating. Of course painting bar joists is quite difficult, as is fire protecting them, and you may need multiple passes to get a uniform surface.

And it would be quite normal to paint over mill scale and light rust and shop welds



[Oystein]

Certainly Tnemec Primer has been mentioned repeatedly in discussions and I have certainly seen discussion that there was likely more than one different primer on chips. Millette was not given access to Harrit's chips so had to match by xeds data. He discarded chips that didn't match.Harrit apparently had at least one with different primer. It is of course hard to tell as Harrit's details are a little sloppy.

The paper actually documents that they were looking at at least 6 (six!) different materials, judging from the elemental composition:
Material 1 - the 4 chips analysed in Figures 5-11 - has a red layer with only the elements C, O, Si, Al and Fe in more than trace amounts (they also have traces of Cr, Sr, Na, Ti and others), with the extra property that Al and Si appear in roughly equal amounts (nearly equal peak hights, which in this case of elements that are neighbors in the periodic table translates quite directly to amounts).
Material 2 - the chip analysed in Figures 12-18, which has been subjected to MEK solvent - additionally contains Zn and Mg, and very likely Ca.
Material 3 is one that has significant Ti in its ash and thus in its composition - an element that was not significant in the first two materials
Material 4 is the multi-layered chip, which contains significant Pb in the red layer, which none of the previous three materials exhibit
Material 5 is a chip where the gray layer is not mostly made up of iron/iron oxide but of carbon
Material 6 (and likely 7) are evidenced when the text body says that they found chips with significant Cu and Ba, neither which any of the other materials contain. It is not clear whether Cu and Ba were found within the same specimens, or in different specimens.

It is of course spurious to extend findings on one material to any or all of the others. This alone renders the paper worthless.

In the paper there are 4 samples mentioned 1. Mckinlay, 2 . Delassio 3. Intermont and 4. White. Then XEDS spectra are shown a,b, c& d apparently corresponding to 1 through 4 but on DSC tests there are 2 Mckinlay samples and no Delassio so these appear to be different chips. Also the peaks are lower for the 2 Mckinlay samples on the DSC and on XEDS chip c shows elements not found in the other 3.

Yes, correct, the 4 chips represented in the DSC data of Figure 19 are a set different from the 4 chips represented in the SE/BSE/XEDS data of Figures 5-11.

It is unlear which of the six materials listed above are represented by which DS curve, if any.
It is spurious to lump together the DSC data and the XEDS data, as it is not clear at all they were won from the same material(s). This alone renders the paper worthless.

Do not confuse yourself too much by focussing on the identity of the four dust samples. Each dust samples could contain any and all primer paints that were released into the total dust. If you look at two chips, it matters little if they came from the same or from two different samples.

As for the DSC data, I would want to point out that they use NONE of the numbers to form their conclusions! They only look at one quality: That there is an exotherm peak. Somewhere. Of some height. There is no analysis, no discussion of the peak temperature or peak power. There is nothing about the value "425 °C" that makes the conclusion "thermite" likely or even compelling.
In Figure 29 they compare one of their DSC traces with one trace of actual, experimental nano-thermite. Not only are peak temperature and peak power very different; the curves have MANY differences, and nothing of significance in common, except that both show an exotherm reaction. Which is d'uh.
What's worse: The four traces in Figure 19 are not very similar, except for the peak temperature. The black and the green curve are somewhat similar, and the red and blue share similarities, but the latter two are much different from the former two.

It is perfectly clear that peak temperature and power are dominated by the combustion of the organic matrix. Many organic polymers burn in the vicinity of 400 °C or slightly beyond. One such polymer is epoxy (or epoxies - there exist various). In fact, the blue and red curve have properties reminiscent of epoxy.

Harrit et al note themselves that the specific energy they measured with the DSC data (1.5/3/4.5/7.5 kJ/g) is, in some cases, more than what thermite could possibly do, and they conclude, correctly, that "some" of that energy comes from the matrix.
They fail to consider that perhaps ALL of the exotherm comes from burning organics.
Since the gray layer is iron oxide and thus more or less inert - as Harrit et al themselves admit -, but also denser than the gray layer, it follows that the gray layer adds mass, but no energy, to the DSC power flow. Specific energy of the red layer alone must thus be conjectured to be twice or more the values presented. This raises a huge problem: It can be computed that 90% and more of the energy MUST come from the organics, and <10% only could theoretically come from a thermite reaction. This means immediately that the DSC peaks are organic combustion peaks.
There is no additional thermite peak. It just doesn't happen.



[Oystein]

The paint had no real function other than to make the steel look nice and new. It is sometimes called a holding primer or a works primer. The steel after erection is in an internal environment so there is no risk of corrosion.

Correct.
The trusses were painted in the factory to protect them from the elements during transport, storage and constrution.

Red oxide primers are still used today.

Yes, and more importantly: Has been used for decades, if not millenia.
Red oxide pigment is sub-miron sized - i.e. nano-scale - and has been for decades, if not millenia. It is not a high-tech product.

I would expect that the bar hoist floors would be made at a different location to the heavy steel columns. And it would be probable/possible to have a different paint supplier and even a different composition. If it is a big job there may be multiple fabrication centres all of whom would have there own version of a red chromate primer.

Yes, this is true. The WTC steel ame from half a dozen or more different steel manufacturers: I remember Pittsburgh Steel for part of the exterior columns, LaClede Steel for the floor trusses. Some other company provided the rest of the exterior columns, two or so companies shared in providing core columns, and then you have steel in the foundations and elsewhere, for which yet other companies were contracted.
And indeed, different paints were specified: The floor trusses (LaClede) were specified as LaClede's shop primer - epoxy matrix, iron oxide, aluminium silicate, strontium chromate. The exterior colums were to be painted with Tnemec Red 69 or 99, which is alkyd resin with linseed oil, and pigments of iron oxide, zinc chromate, plus talc, silica and calcium aluminates. We do not know what paint(s) were specified for the core columns. We do not know what was specified for WTC7. No doubt other paints were used.

It would be very unusual to have more than one coat since you are not trying to provide corrosion protection you are only trying to provide a uniform coating. Of course painting bar joists is quite difficult, as is fire protecting them, and you may need multiple passes to get a uniform surface.

The trusses were dipped into a bath of paint, direct current applied (anode, cathode), and the paint thus deposited in one application

And it would be quite normal to paint over mill scale and light rust and shop welds

Specification demanded that the steel be cleaned before painting.



[Efftup]

The paper actually documents that they were looking at at least 6 (six!) different materials, judging from the elemental composition:
Material 1 - the 4 chips analysed in Figures 5-11 - has a red layer with only the elements C, O, Si, Al and Fe in more than trace amounts (they also have traces of Cr, Sr, Na, Ti and others), with the extra property that Al and Si appear in roughly equal amounts (nearly equal peak hights, which in this case of elements that are neighbors in the periodic table translates quite directly to amounts).
Material 2 - the chip analysed in Figures 12-18, which has been subjected to MEK solvent - additionally contains Zn and Mg, and very likely Ca.
Material 3 is one that has significant Ti in its ash and thus in its composition - an element that was not significant in the first two materials
Material 4 is the multi-layered chip, which contains significant Pb in the red layer, which none of the previous three materials exhibit
Material 5 is a chip where the gray layer is not mostly made up of iron/iron oxide but of carbon
Material 6 (and likely 7) are evidenced when the text body says that they found chips with significant Cu and Ba, neither which any of the other materials contain. It is not clear whether Cu and Ba were found within the same specimens, or in different specimens.

It is of course spurious to extend findings on one material to any or all of the others. This alone renders the paper worthless.


Yes, correct, the 4 chips represented in the DSC data of Figure 19 are a set different from the 4 chips represented in the SE/BSE/XEDS data of Figures 5-11.

It is unlear which of the six materials listed above are represented by which DS curve, if any.
It is spurious to lump together the DSC data and the XEDS data, as it is not clear at all they were won from the same material(s). This alone renders the paper worthless.

Do not confuse yourself too much by focussing on the identity of the four dust samples. Each dust samples could contain any and all primer paints that were released into the total dust. If you look at two chips, it matters little if they came from the same or from two different samples.

As for the DSC data, I would want to point out that they use NONE of the numbers to form their conclusions! They only look at one quality: That there is an exotherm peak. Somewhere. Of some height. There is no analysis, no discussion of the peak temperature or peak power. There is nothing about the value "425 °C" that makes the conclusion "thermite" likely or even compelling.
In Figure 29 they compare one of their DSC traces with one trace of actual, experimental nano-thermite. Not only are peak temperature and peak power very different; the curves have MANY differences, and nothing of significance in common, except that both show an exotherm reaction. Which is d'uh.
What's worse: The four traces in Figure 19 are not very similar, except for the peak temperature. The black and the green curve are somewhat similar, and the red and blue share similarities, but the latter two are much different from the former two.

It is perfectly clear that peak temperature and power are dominated by the combustion of the organic matrix. Many organic polymers burn in the vicinity of 400 °C or slightly beyond. One such polymer is epoxy (or epoxies - there exist various). In fact, the blue and red curve have properties reminiscent of epoxy.

Harrit et al note themselves that the specific energy they measured with the DSC data (1.5/3/4.5/7.5 kJ/g) is, in some cases, more than what thermite could possibly do, and they conclude, correctly, that "some" of that energy comes from the matrix.
They fail to consider that perhaps ALL of the exotherm comes from burning organics.
Since the gray layer is iron oxide and thus more or less inert - as Harrit et al themselves admit -, but also denser than the gray layer, it follows that the gray layer adds mass, but no energy, to the DSC power flow. Specific energy of the red layer alone must thus be conjectured to be twice or more the values presented. This raises a huge problem: It can be computed that 90% and more of the energy MUST come from the organics, and <10% only could theoretically come from a thermite reaction. This means immediately that the DSC peaks are organic combustion peaks.
There is no additional thermite peak. It just doesn't happen.

I am in no confusion as to the worthlessness of the Harrit paper. I just mentioned there was definitely more than one paint sample and the general sloppiness of the Harrit paper.
As you mentioned, not only do the DSC samples not match each other, but when compared to the Tillotsen Xerogel Nanothermite it is not even close. The Nanothermite peak is way lower, starts at a much higher temperature and is in fact ENDOTHERMIC until about 380 degrees C.

Looks like the papers authors were trying to "prove" something instead of TESTING a hypothesis and ignored the fact that their results completely did NOT match what they expected.
The Energy peak which they claim is a violent sudden release of energy is a spread of 60 degrees or more and as the DSC would normally raise the temperature by about 10 deg/min then the Sudden release took at least 6 minutes to happen.
As you already mentioned, the fact that they put the whole chip in the DSC and not just the red layer meant their results would have been useless right from the start. Others have also pointed out is the WRONG test to do to determine composition and why Millette did NOT do that test.



[Oystein]

All correct and relevant, Eftup



[Mick West]

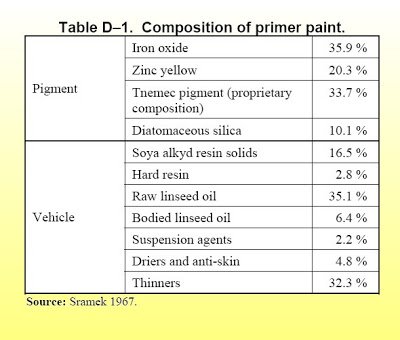

This article shows another primer paint composition:
https://11-settembre.blogspot.com/2009/04/active-thermitic-material-claimed-in.html (http://archive.is/xJHJN)

With some discussion about how this might account for the red flakes and some of the observations

Fossil flour [Diatomaceous silica/earth]is an opacifier constituted essentially by silicon dioxide, aluminum oxide, iron oxide and other impurities. It is added to paint to give it an opaque finish and a rough feel when dry, so as to provide grip for subsequent spray-on fireproofing. The dried resinous and oily base might be the organic matrix that constitutes the base of the red layer, which is rich in carbon and, as shown, may have a primary role in the release of energy during the combustion process. In practice, the red layer of the wafers identified by the researchers contains exactly the same elements that we now know were present in the corrosion-resistant coating used during the construction of the World Trade Center, including the organic base constituted by linseed oil and alkyd resin. It's not just a matter of the same chemical elements being present. The presence of fossil flour in the paint, too, is compatible with the porosity observed in the samples of the red layer. If one considers, moreover, that mica is also often present in fossil flour, then the presence of laminar particles mixed with crystalline particles of iron oxide might also be explained. The gray layer, which as noted is rich in iron and oxygen, might be linked to a green corrosion-proofing paint (Tnemec Green Metal Primer^, page 303), used extensively to provide markings on steel and explicitly listed in the materials supply specifications, or to a bonding agent used during construction to fix thermal insulation and soundproofing elements. Could this type of paint peel off, forming the small flakes found in Ground Zero dust?



[Oystein]

The speculation about the gray layer being "linked to a green corrosion-proofing paint (Tnemec Green Metal Primer, page 303)" is almost certainly false in most instances of red-gray chips.

Here are four XEDS graphs of the four chips Harrit et al analyse in their first part (Fi. 5-11):

These are essentially Fe and O only - the peaks for C indicate a small percentage, consistent with carbon steel. (a), (b) and (d) also have small but unlabeled signals at 5.9 keV - that's the K-alpha level of manganese. And of course manganese is part of most of the structural steel alloys used at the WTC.

The gray layer generally is oxidized structural steel.
There is no hint of any other element at least in these four specimens, and thus no hint of, e.g., green pigments, or any other pigments, really. No zinc, no chromium, no lead, no copper, no nothing.



[Oystein]

Diatomaceous silica is silica formed by diatoms - unicellular algae that have a surprisingly massive imprint on the planet's ecology. Diatomaceous earth is mmade up of the deposited silica shells of ancient (fossile) diatoms, with particle sizes typically in the range from 10 to 200 μm. See Wikipedia: https://en.wikipedia.org/wiki/Diatom#Evolution_and_fossil_record
These shells have organic structures and would stand out under a microscope of fitting magnification!

Harrit et al show the micro-structures of the red paint layers of only four chips, and they have specifically selected these four chips foor their very similar properties.


There is no diatomaceous silica in these red layers.

The reason is simple: These four chips are LaClede shop primer on floor truss steel; and the LaClede paint recipe has no silica.

Diatomaceous silica is specified for Tnemec Red 99 - to be painted on the perimeter panels. Harrit et al are looking at a chip of Tnemec 99, in Figures 12-18, but surprisingly failed to include an image of the microstructure. One might suspect that they took micrographs in ranges of 1 to 100 µg, but consciously decided against showing them, because they would contain diatom shells, but no hexagonal kaolin platelets so typical for chips (a) to (d).



[Mick West]

Some more paint chips from my wheelbarrow.



[Mick West]

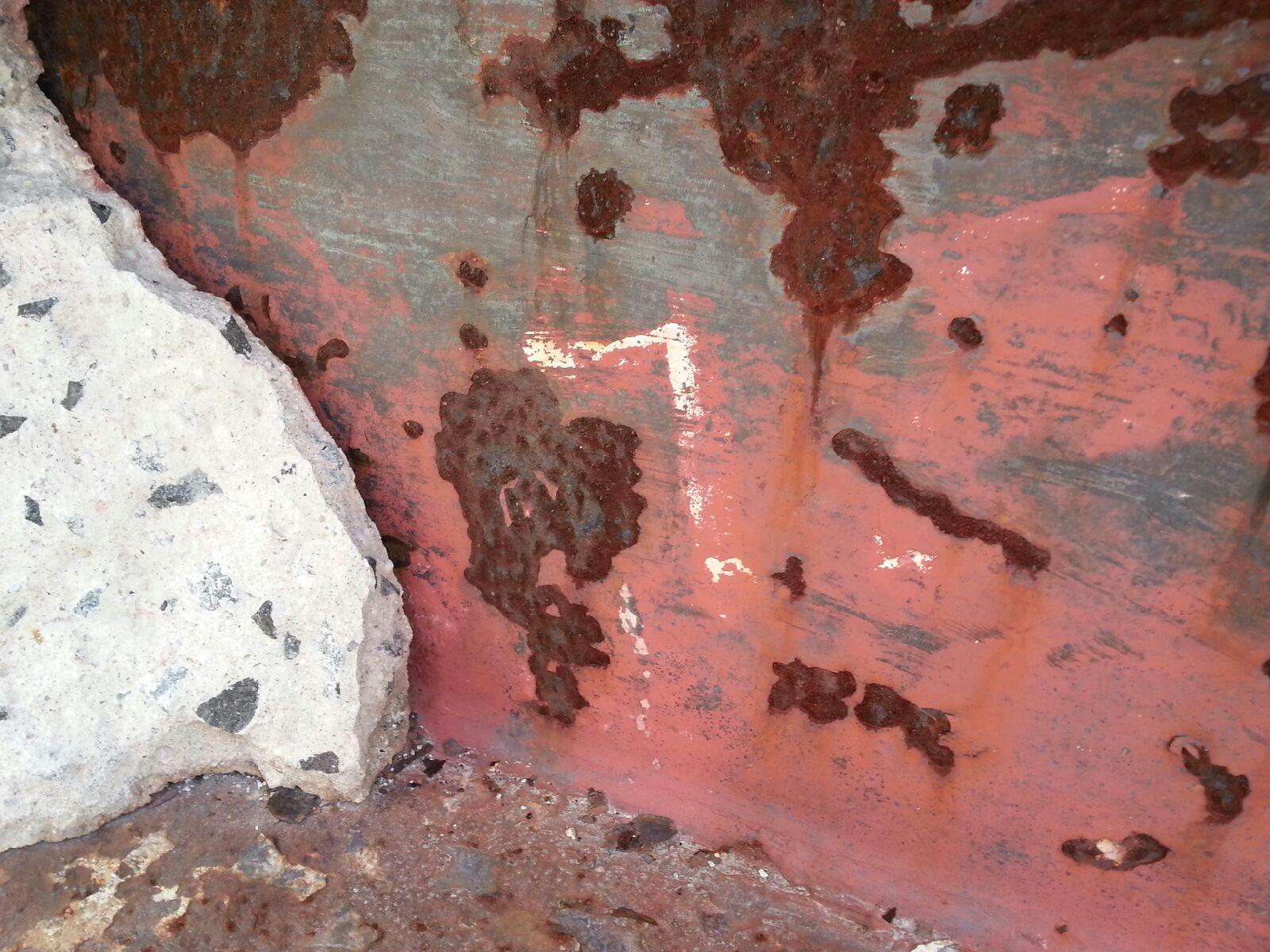

This is a "beam" (probably a section of a column, based on the thickness of the steel) from the World Trade Center site, in Ypsilanti, MI.

http://www.wemu.org/post/hidden-pla...d-trade-center-emu-campus-serves-911-reminder

It strikes me as a good potential source of paint chips for comparison. You would not probably need to scrape any off, just swipe a medium strength magnet over the bottom.

It might not be that useful, as the rusting is probably not typical. Like my wheelbarrow chips, the oxide layer is more orange than the cleaner chips seen in WTC dust, which partly formed with more mechanical assistance.



[Oystein]

Hello Daniel Grant Wilks, I am Erik M.



[Kitcosby]

Some more paint chips from my wheelbarrow.

View attachment 34792 View attachment 34793 View attachment 34794 View attachment 34795 View attachment 34796 View attachment 34797

I am grateful for your level of diligence. I must say your images of mechanically produced iron spheres the most convincing I have seen. You left a hair in that last image giving us a scale. You also seem to have access to an electron microscope? (Seen in other posts). I would like to see your iron spheres compared with existing images of so-called spheroids at comparable scales however that evidence alone would likely not resolve this issue for me.

Millette's Study reasonably concludes:

Kaolin: Al2Si2O5(OH)4, Rust: FeO3, and Epoxy: C21H25ClO5

However, this evidence could also be explained as:

Rust: FeO3 (2.2 Parts) at about 2um scale.
25 Fe
75 O

Ultra Fine Grain (UFG) Aluminum at about 2um scale.
99.9 Al (1 part)

Sand: SiO2 or other naturally occurring Si molecules.
Or it could also be (more alarmingly) Polysiloxane (Silicone) mixed with Epoxy. (32 parts of a 2:1 Silicone/Epoxy mixture).

This is not a blic, the hypothesis can be disproved with more evidence of covalent bonding between the Si and the Al.

Or

Mix UFG Al with Silicone, combine with epoxy resins and carefully add a mixture of Rust and the epoxy hardener to complete the reaction. Watch out for exothermic activity as the epoxy cures.



[Oystein]

I am grateful for your level of diligence. I must say your images of mechanically produced iron spheres the most convincing I have seen. You left a hair in that last image giving us a scale. You also seem to have access to an electron microscope? (Seen in other posts). I would like to see your iron spheres compared with existing images of so-called spheroids at comparable scales however that evidence alone would likely not resolve this issue for me.

Millette's Study reasonably concludes:

Kaolin: Al2Si2O5(OH)4, Rust: FeO3, and Epoxy: C21H25ClO5

However, this evidence could also be explained as:

Rust: FeO3 (2.2 Parts) at about 2um scale.
25 Fe
75 O

Ultra Fine Grain (UFG) Aluminum at about 2um scale.
99.9 Al (1 part)

Sand: SiO2 or other naturally occurring Si molecules.

No, not possible. Several reasons:
1. Millette identified kaolin (the chemical bonds that make up the Al-silicate molecular structure) directly using FTIR (page 4: "The FTIR spectra of the red layer were consistent with reference spectra of an epoxy resin and kaolin clay (Figure 9) (Appendix C).")
2. Harrit et al show in their XEDS map, Figure 10, that all the hexagonal platelets, and only the platelets, are associated with very nearly equal amounts of Al and Si (Fig 11), so these platelets are the exaxt things that contain (essentially) all the Al and all the Si. There just is no UFG Al, and there just is no SiO2 seen anywhere.

Or it could also be (more alarmingly) Polysiloxane (Silicone) mixed with Epoxy. (32 parts of a 2:1 Silicone/Epoxy mixture).

This is not a blic, the hypothesis can be disproved with more evidence of covalent bonding between the Si and the Al.

You very wording ("...the hypothesis can be disproved with more evidence of...") suggests that you do not have any of the evidence you think you would need. Therefore, you present idle speculation.

Or

Mix UFG Al with Silicone, combine with epoxy resins and carefully add a mixture of Rust and the epoxy hardener to complete the reaction. Watch out for exothermic activity as the epoxy cures.

Huh? Why?



[Kitcosby]

Post in thread 'Debunked: Iron Microspheres in 9/11 WTC Dust as Evidence for Thermite'
https://www.metabunk.org/threads/de...ust-as-evidence-for-thermite.2523/post-301928
For the why…



[Oystein]

(I quote and respond to a post over in the "iron spheres" thread, which belongs to the discussion of "nanothermite" instead)

To recapitulate:

In the 2008 article "Extremely high temperatures during the World Trade Center destruction." by: Steven E. Jones, Jeffrey Farrer, Gregory S. Jenkins, Frank Legge, James Gourley, Kevin Ryan, Daniel Farnsworth, and Crockett Grabbe.
http://www.journalof911studies.com/articles/WTCHighTemp2.pdf Jones et Al found Iron rich spheres prompting further research.

The only research they needed to do was to look in a proper reference book, like the McCrone Particle Atlas (the 1973 edition would have done perfectly fine), and to discover that iron-rich micro-spheres are prefectly normal and even typical for various types of ashes and urban dust.

While looking for more evidence about the source of the iron rich spheres a red substance with remarkable exothermic properties was discovered in the 9/11 dust. Published under the title, "Active Thermitic Material Discovered ...

No, this is entirely FALSE in several ways and abject nonsense even in several ways, the two most important of which are:

1. They did NOT find "a" (read: one) red substance, they found SEVERAL DIFFERENT kinds of red paint!

2. This "red substance" (write "paint", it's shorter and more to the point, really!) does not have any "remarkable exothermic properties" whatsoever. Instead, it has entirely mundane, fully expectable thermal properties for various different materials that are based on this or that organic polymer: Most organic binders would be fully expected to react exothermicly with oxygen from ambient air when heated to some hundreds of °C, and most would be expected to release somewhere between 10 and 30 kJ/g of heat while thusly smoldering slowly. Which is EXACTLY what Harrit et al found:
- The chips reacted VERY SLOWLY (they smoldered over the course of many minutes, even more than half an HOUR
- They released between 1.5 and 7.5 kJ/g of heat based on the mass of the entire chip icluding red and (inert) gray layer. Since the chips can be estimated to be, on average, 2/3 or 3/4 by mass inert gray layer, and the red PAINT is only something between 50% and 70% organic matrix, the rest (inert!) pigments, it follows that the red layers in their DSC experiment released, roughly between 9 and 30 kJ/g of heat - exactly the expected range.
So, there is NOTHING AT ALL REMARKABLE about the exotherm signal. Nothing. You have been fooled by a team lead by a huxter.

These findings have since been dismissed as not the only possible source of iron spheres. Namely, the spheres likely came from 'fly ash' and blast furnace slag.

And the fires of 9/11, and many many many many many many many many many many many other processes. As Mick showed in the "iron microspheres" thread.

(Image from post in this tread)

Yet this is not characteristic of the Iron spheres in question.

(Image from Harrit et Al)

I would like to now reexamine the findings of Millette in his 2012. Progress Report on the Analysis of Red/Gray Chips in WTC Dust.

https://www.metabunk.org/attachment...ysis-of-red-gray-chips-in-wtc-dust-pdf.37907/

From Methodology:

From Results:

FROM DISCUSSION:

FROM NOTES:

Spam spam spam. Why present all these quotes when you don't discuss any of them in proper context?

So Millette excludes the possibility of thermite or nano thermite based on the shape of the Al source:

No. This is FALSE and does NOT follow from all the quote-bites you yanked out of their respective contexts.

Millette excludes the kaloin-shaped Al-Si-sources (why do Truthers always always always ignore the silicon in all of the chips, which make ZERO sense in an actual thermite preparation? Is this deliberate omission, i.e. plain dishonesty?) because he CONFIRMED they are kaolin using FTIR.
In fact, in a further experiment Millette ran XEDS maps and found that there is no region in all of the chips where he finds Al NOT associated with other elements, NOT associated with enough O, and so there is ZERO elemental Al in them.
Zero.
You completely misrepresent Millette's evidence.

thermite and nano thermite both have granular Al powders (spheres)

No. Not necessarily.

where as in the red substance the Al source is in plates.

Al+Si-source. Get honest and NEVER AGAIN ignore that the kaolin plates contain just as much Si as Al!

From the discussion, both the Encyclopedia of Explosives and Crippen's book on explosives identification define thermite ...

Irrelevant.

The tests on the samples that underwent low temperature ashing and muffle furnace ashing both showed the Al source to be conveniently bonded

Loaded wording. It is what it is.
I think you mean to say that the FACST are INCONVENIENT to TRUTHERS who wish to hold on to the Steven-Jones-hoax.

However, if the epoxy were mixed with silicone similar results would be obtained with the presence of elemental Al at a scale micrometer scale (plates not spheres).

No, this is FALSE.
The paint chips with the kaolin plates consistently show very nearyl EQUAL amounts of Si and Al.
If these were elemental Al in a silicone matrix, there wouldn't be a consistent 1:1 ratio, the ratio would vary significantly as the ration of your imaginary Al-particles : silicone matrix "seen" and measured by the electron microscope would vary stochastically.

Since the suspected silicone was not dissolved in the epoxy solvents the possibility of elemental Al can not be excluded.

Except that there is no Al outside of the platelets, and also no Si outside the platelets, and there is always a 1:1 ratio of Al:Si in the chips that have these platelets, and also the same 1:1 ratio within the platelets, which is how we know there is ZERO Si in the matrix. Your theory is therefore DEBUNKED right here.

From the notes, Millette also excludes the possibility of the results being explained by the primer used for the WTC buildings.

This is FALSE!

You "forgot" - conveniently!? - that the WTC towers of course contained MANY DIFFERENT red paints, including different red primer paints for structural steel.
You also "forgot" (I put this in scare quotes because I already told you but you conveniently IGNORED) that the red/gray chips in that dust represent SEVERAL DIFFERENT RED MATERIALS!!!!

-----------------------------
Please acknowldege prominently in your reply that you have been informed that the red layers of the chips are SEVERAL DIFFERENT MATERIALS!
-----------------------------
What is true is that Millette rules out that one particular, out of the many, kind of red/gray chips (that with the platelets, that with Al:SI = 1:1, that which contains major amounts of only five elements: C. O, Al, Si, Fe) is different from one out of the many different kinds of red primer painst that one would have to expect to find in the dust, namely the Tnemec Red specified for the perimeter columns of the twin towers.
We know (it appears Millette didn't) of at least one other, entirely DIFFERENT red primer paint specified for and used in the twin towers, and there can be no serious doubt that there were more; for would you expect WTC7, for example, to be painted with the same paints that the twins were 15 years earlier?

Millette's conclusions of:

Kaolin: Al2Si2O5(OH)4
22.22Al
22.22SI
55.56O
or- (natural kaolin mixture)
18.67Al
19.26Si
0.53Ca
6.27Ti
10.24Fe
45.03O

Epoxy: C21H25ClO5
40.38C
48.08H
1.92Cl
9.62O

You type out there percentages with three to four relevant digits, feigning a scientific exactitude which is - complete bonkers.
For your numbers refer to the ratios of atomic numbers - which is of ZERO utility in your discussion.

and Rust: FeO3, could unarguably be formulated to produce the results of the red substance.

And unarguably of course it IS "formulated to produce the results of the red substance" - it's the red pigment that makes the red paint red. Like d'uh!
BUT that is NOT "rust"! Rust is not Fe2O3! Look it up!
It seems you are lacking some of the very basics of the applicable material science that is required, at a minimum, to debate the issue at such sweeping levels as you are.
Read: You are making a fool of yourself.

However this same spectrum could be produced by a mixture of two paints.
A silver colored paint of 1 part Al (2um) with 20 parts silicone. (fire retardant)
A red primer paint of 2.2 parts FeO3 with 10 parts epoxy. (sealant)

This alone is not alarming.

No.
This alone is entirely irrelevant.
This, alas not alone, is completely out of the lala land of your imagination.
For there is no "silver colored paint" with Al and Si in any of the studies ever done on the subject.

The alarming detail is that the two paints appear to be electrostaticly painted together.

Bollocks. A fantasy straight out of lala-land.
There are no "two paints" - why do you lie?
And you of course wouldn't know the first thing about the appearances that would lead anyone to conclude "electrostaticly painted together".
You make shit up from whole cloth.

Producing in this combination, something analogues to a nano version of an old solid rocket fuel.
https://patents.google.com/patent/US3309249A/en
The possibility of a high grade propellant found in the evidence of a fire that resulted in catastrophic building failure was not excluded by the findings of Millette.

Neither could Millette rule out that dinosaurs, genetically modified by aliens to have opposable thumbs, did this sinister space propellant paint job.
We CAN however rule out such mad fantasies because there exists ZERO EVIDENCE for them, and also (essentially) ZERO prior likelihood of such exotic, entirely uselss stuff.

In pursuit of a larger theory of possible arson, I respectfully submit my research to be debunked.

You're welcome.

The burden of proof was on Millette

He met his.

You failed to meet yours.
Do better!

, and that we are still arguing over it a decade out is evidence that burden not met.

Nonsene. It is evidence that ignorance and dishonesty are still widespread within humanity.

I would love to test this further myself but I was informed that mixing these two paints could land me in a world of trouble with ATFB.

LOL

Evidence that kaolin not yet present before ashing can be found in Millette's own study.
This is but a few examples where Al and Si are significantly mis matched in the assumed kaolin samples.

Yes. This is because there are quite a number of DIFFERENT RED MATERIALS (almost certainly most, if not all, of them being different kinds of paint indeed) that give rise to red/gray chips.

Which is why I need you to acknowldege prominently in your reply that you have been informed that the red layers of the chips are SEVERAL DIFFERENT MATERIALS!

Millette offers no explanation for why the Kaolin is so fine.

He doesn't need to. Every competent person in field as varied as mineralogy, forensic material science or paint manufacture knows this. It's a naturally occuring and industrially mined material, which exhibits these useful properties (useful e.g. as paint pigment, to control viscosity and/or gloss) after having been "calcined" (which means, roughly speaking,"heated to drive out water from the mineral structure").

(Image from Millette)
Millette had conclusively shown that it is kaolin after ashing.

Yes. This also conclusively shows that it was already kaolin before ashing, for if you want to claim that kaolin could be created by carefully heating a mix of stuff to moderate temperatures, you are either believing, quite literally, in magic, or you make up lying shit with an intention to confuse and to deceive.
Kaolin is a peculiar crystallic material, a MINERAL, that results from geological processes spanning millions of years.

But does not explain what looks like SiO2 in the soot

In the image you presented, where Millette points out kaolin platelets, there is NOTHING that "looks like SiO2".
When your wording is "looks like SiO2 in the soot" you reveal that you don't even know or understand what "soot" is. Such lack of basic knowledge precludes you from truly understanding what Millette looked at, did, found and concluded.

, nor does it exclude the possibility of elemental Al (only state that none was found in ashed samples).

Luckily, Millette did plenty of OTHER things to exclude elemental Al.

---------------------------------------

There is a huge host of other problems that any Truther who wished to defend the Steven E Jones HOAX of "red layer = thermitic material". One of the bigger ones is that there is so LITTLE aluminium in all of the samples!

There is always plenty of C, plenty of Fe, plenty of Si, there is sometimes plenty of other elements, and of course pervasive and abundant oxygen everywhere.
And also usually a varying percentage of Al.
How much?
Neither Harrit et al not Millette really quantified the elements in any of their specimens, but we can estimate upper bounds for the Al-content.

Take for example the chip on which Millette did "Auto-Phase Mapping" - page 57 of his prelim report has this table:
View attachment 62707
So here we see that four of the six phases, accounting for 24.1+11.6+3.2+20.2 = 59% of the area scanned, returned some Al.
But a couple of these phases (4 and 5, 14.8% of the area) contain less Al than both Si and Fr, and so a lot less than 33% of those areas - and he even ignores all the pervasive O. Phase 1 has significantly less than 50% Al, and Phase 6 significantly less than 33% of Al among the metals.
(Note that there is never any Si-only phase!! There is ZERO silicone, obviously!!!!)
To estimate the Al-percentage of Al among the metals (including the zero occurrence of any metals in in Phase 2. which is of course very significant), I did a simple spreadsheet:
Phase1: 40% Al (max) * 24.1% of area = 9.64% Al max in specimen
Phase2: 0 Al
Phase3: 0 Al
Phase4: 16% Al max * 11.57% of area = 1.85% Al max in specimen
Phase5: 16% Al max * 3.24% of area = 0.52% Al max in specimen
Phase6: 27% Al max * 20.15 % of area = 5.44% Al max in specimen
The sum of these is a maximum of 17.45% of Al among the metals throughout the chip's area.
Now there is always lots of C, always lots of O, very certainly these two elements combine for at least 50% of the red layer's mass, and so we have under 9% total Al in the red layer.

As a matter of fact, Marc Basile, the chemical engineer who is acknowledged by Harrit et al as a valuable contributor, is the only one who actually quantified the Al content of the red layer directly. Here is his quantification result from a 2010 presentation:

View attachment 62708

So as you can see, C and O totally dominate the mass of the red layer, and there is only between 1.3% and 1.7% of Al!
It is plausible that perhaps Basile overestimates the lighter elements of the matrix, but still, there is remarkably little Al in the chips!
The problem with so little Al is that it is the fuel in the thermite reaction. And that it is never fully elemental - especially nano-thermite suffers from the problem that a high percentage of the Al in it is already oxidized at the surface, such that nano-thermite never yields much more than 1.5 kJ/g of heat output.
In perfect thermite, elemental Al is 25% by weight.
If you have only 1/3 of that in your mix, your material is, at most, 1/3 by mass thermite (if everything else is mixed in to perfections) and if it's "nano" even, that 1/3 of thermite provides only 1/3 of the 1.5 kJ/g of exotherm output, or 0.5 kJ/g relative to the mass of the RED layer only.
But Harrit et al measured, on average, 4.5 kJ/g in chips that also had GRAY layers. Now, the red layers are dominated by the light binder and have a lot less density than the gray layer, which is essentially iron or iron oxides. So the chips' red layers have, on average, only like 1/3 or 1/4 of the chips' mass, and with this the hypothetical heat contribution of 8% nano-Al in the red layer falls to between 0.125 and 0.166 kJ/g relative to CHIP mass.
Again, Harrit measured 4.5 kJ/g on average - that's between 27 and 36 times the heat output that the small amount of Al in the red layer could possibly explain.

Which means, in short, that the DSC curves in Harrit et al (Fig 19), which peak around 425 °C - more than 95% of the area and shape of those curves is created by exotherm reactions that are NOT the thermite reaction.
View attachment 62709
And it is of course perfectly obvious which reactions DO perfectly adequately explain the exother signal:

The slow smoldering of the organic binders.



[Kitcosby]

The smoldering of epoxy between 37-46 more powerful then thermite is not an unusual exothermic property? The samples tested all had varying ratios of Al to Si, with Si found 3x the Al in one sample. To say they were approx equal is cherry picking data.
I am frustrated with the confabulation between the mellue
I do see several paints, traces of the original primer, and a substance that appears to be two paints painted together. The 'silicone' and epoxy blend make up 90% of the red substance and provide most of it's energy. Thus it is more similar to a plastic explosive then conventional thermite.
This site is supposed to help me get out of the rabbit hole and all I'm getting is abuse and contradictions.

Now I would love to see evidence that it was applied in two layers as that would render the feared reaction harmless.
All the tests that found kaolin were on ashed samples. The rest of the evidence against elemental Al is inferred.
Can you show me that silicone and Al do not produce kaolin when ashed?
Tongue in cheek! I am insane.
While 9 out of 10 voices tell me not too… there is that one that I spend most my day trying to talk out of domestic terror to try to lite a fire under this issue. I want answers and am getting desperate.



[Landru]

The 'silicone' and epoxy blend make up 90% of the red substance and provide most of it's energy. Thus it is more similar to a plastic explosive then conventional thermite

What is your evidence for this?



[Mendel]

Thus it is more similar to a plastic explosive then conventional thermite.

Not even your rocket fuel is explosive. And neither is thermite. They're designed for a controlled burn rate. And the binder is the part of the mixture that slows it down.

Silicone and epoxy will not explode.

This site is supposed to help me get out of the rabbit hole

Not really. We debunk evidence. You don't have any, you're speculating, and that's why you're in your hole.

While 9 out of 10 voices tell me not too… there is that one that I spend most my day trying to talk out of domestic terror to try to lite a fire under this issue. I want answers and am getting desperate.

Please get professional help
