WTC7: Does This "Look Like" a Controlled Implosion?

Joe Hill

Member
From another thread:
Source: http://www.youtube.com/watch?v=ixwx19t2IMQ


It certainly looks like a planned building implosion, doesn't it?

Nothing else can make a building fall straight down all at once like that.

Source: https://www.youtube.com/watch?v=A49a9pXwDQs


I ask you to just look at the 2 short videos I gave you with an open mind.

Thank you

Chris
Full post: https://www.metabunk.org/threads/nist-motive-speculation.11094/post-236350

A closer inspection reveals the first move of the visible perimeter frame was a sudden lurch to the left at the moment the west penthouse descended. There is no descent of the perimeter frame. The east half of the structure is falling over to the north at onset of the perimeter frame.
An explanation of that motion: https://www.metabunk.org/threads/debunked-the-north-face-of-building-7-was-pulled-inward.10796/

Watch the left vertical edge (NE corner). It is falling over toward the camera, pivoting far below what is visible, near the ground. Watch the left face; it is turning to face the camera.
Does this look like controlled demolition? How does controlled demolition make the structure move like this? There is no drop, sudden or otherwise; just half the structure falling over.

Your second video shows the east half continued falling north throughout descent, creating the "kink", or vertical fold of the north face.

The east half is fully facing the camera, falling north, while the west half is noticeably falling south.

The west half has still not distorted commensurate with the radical motion of the east half. The two "halves" are falling over in opposing directions.
How did controlled demolition cause the perimeter frame to behave as two separate units during collapse, connected by the north wall?
No, it doesn't "look like" controlled demolition to me. It behaves like a perimeter frame that sustained a vertical breach somewhere out of view of the camera.


Attachments

  • 1580361297252.png
    226.7 KB · Views: 177

Christopher 7

Banned
Banned
From another thread:

Full post: https://www.metabunk.org/threads/nist-motive-speculation.11094/post-236350

A closer inspection reveals the first move of the visible perimeter frame was a sudden lurch to the left at the moment the west penthouse descended. There is no descent of the perimeter frame. The east half of the structure is falling over to the north at onset of the perimeter frame.
An explanation of that motion: https://www.metabunk.org/threads/debunked-the-north-face-of-building-7-was-pulled-inward.10796/

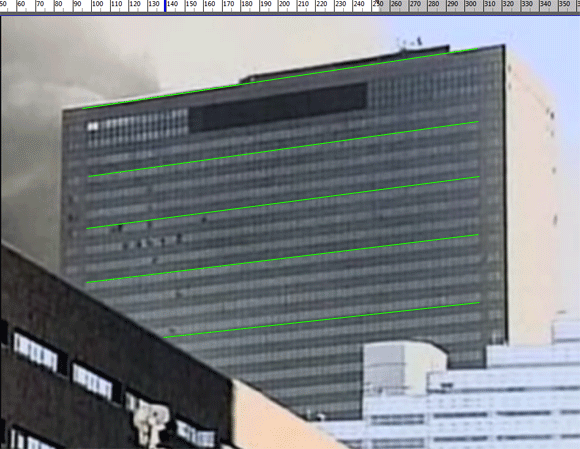

View attachment 39438
Watch the left vertical edge (NE corner). It is falling over toward the camera, pivoting far below what is visible, near the ground. Watch the left face; it is turning to face the camera.
Does this look like controlled demolition? How does controlled demolition make the structure move like this? There is no drop, sudden or otherwise; just half the structure falling over.

Your second video shows the east half continued falling north throughout descent, creating the "kink", or vertical fold of the north face.

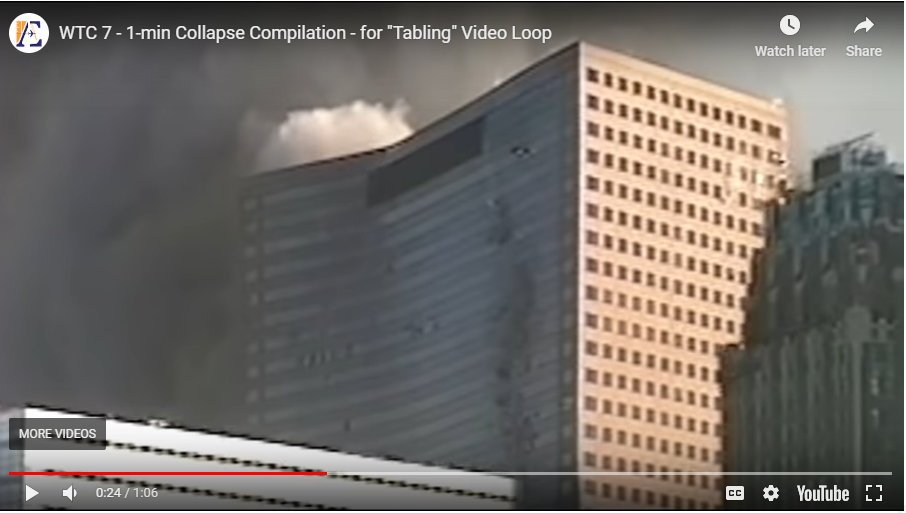

View attachment 39440

The east half is fully facing the camera, falling north, while the west half is noticeably falling south.

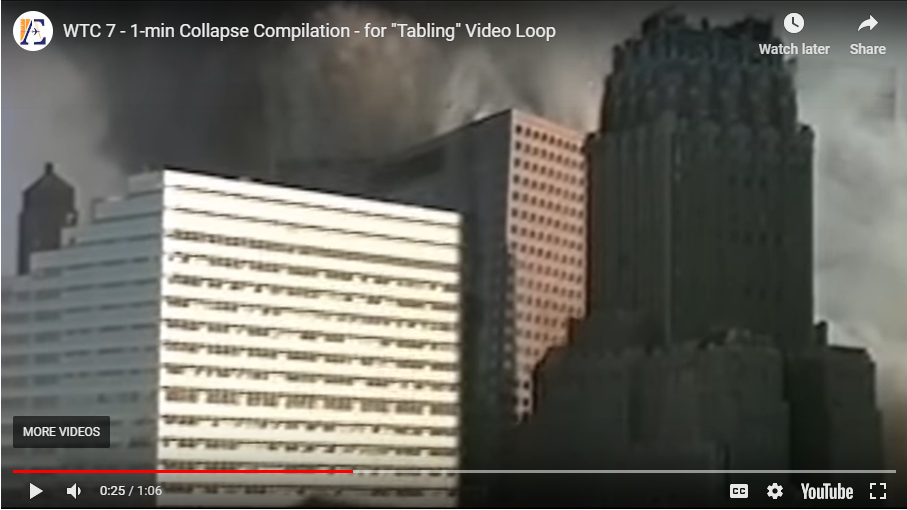

View attachment 39441
