If you look at the picture, there are as many towers in the last 20% of the line as there are in the 80% closest to the observer. That's why the towers further out appear to curve more. The curve over the first 80% of the line is the same curve as the one represented by the last 20%, which is compressed into a quarter of the space.

I did. Please read the Posting Guidelines.Still don't understand 'no click'. Please delete.

You could not be more wrong. There are countless designs where CURVES, are made up of straight lines, and your perspective on those lines create the curve..I like fun little experiments and science demonstrations.

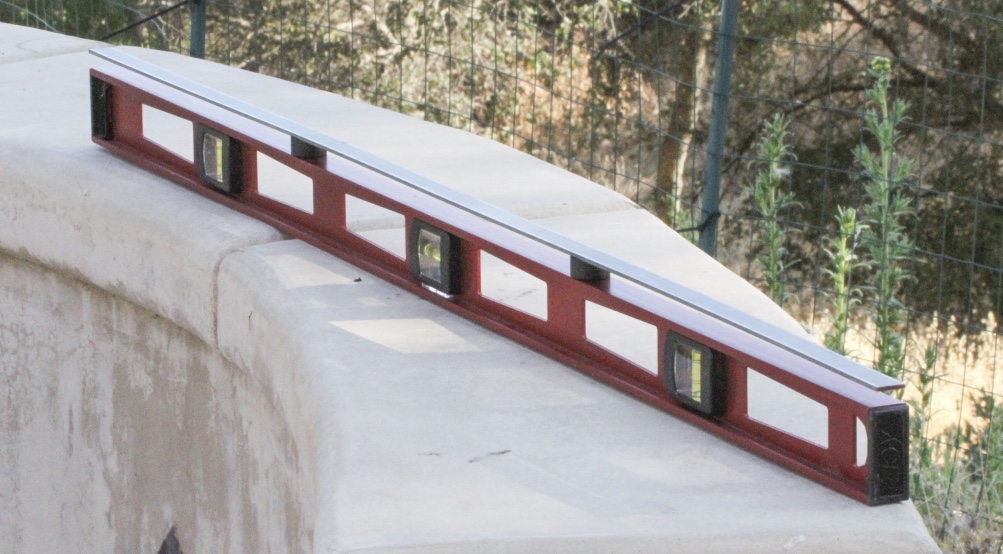

Here's a level (with a known straight edge), and on top of that there's a 1/8" steel bar, balanced on two spacers near the middle, meaning it curves down at the ends.

View attachment 27924

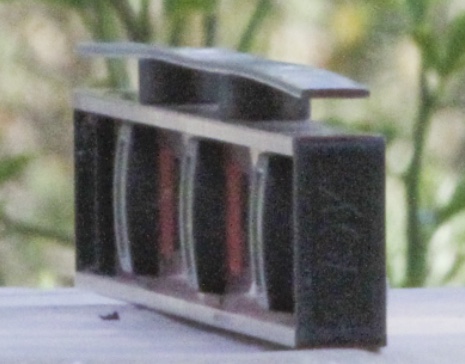

From a distance:

View attachment 27925

The straight edges are still perfectly straight, but the curves in the bar are much more apparent.

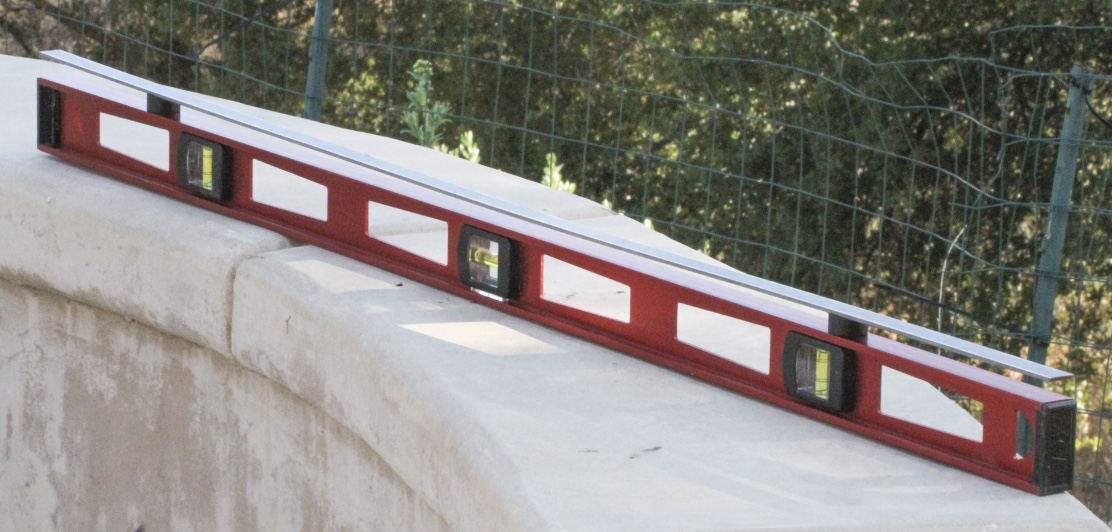

Now the other way, moving the supports so it sags in the middle:

View attachment 27926

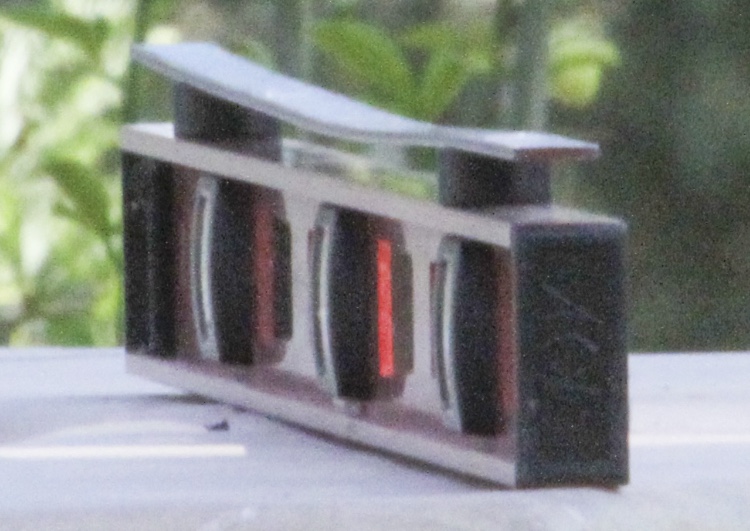

View attachment 27927

"You can't make a curve out of a straight line with perspective."

Last edited by a moderator:

But here we are talking about aYou could not be more wrong. There are countless designs where CURVES, are made up of straight lines, and your perspective on those lines create the curve..

It’s impossible to make the straight edge on the red level look anything other than straight with perspective (unless you use a non-rectilinear lense) and certainly impossible to make it curve over and behind the horizon, regardless of lens.

Could you provide one or two examples please?You could not be more wrong. There are countless designs where CURVES, are made up of straight lines, and your perspective on those lines create the curve.

New member here. The use of these camera angles to compress what we are looking at into a smaller space to show existing warps or bends really works. It shows existing curves that would not otherwise be seen. I've seen this used for instance on runways, where you can clearly see how warped a runway is by looking at it from these compressed angles. Even to the point where you can see a plane landing gear disappear behind such curves or warps on the runway. It really works. Here is an example.But here we are talking about asinglestraight line. Not multiple lines.

It’s impossible to make the straight edge on the red level look anything other than straight with perspective (unless you use a non-rectilinear lense) and certainly impossible to make it curve over and behind the horizon, regardless of lens.

Source: https://youtu.be/7P9OAng32F0?t=55s

[Mod: Edits for clarity]

Last edited by a moderator:

This post illustrates a common misconception about curvature.

Brilliant!
