Observations of MIrages Close to the Horizon

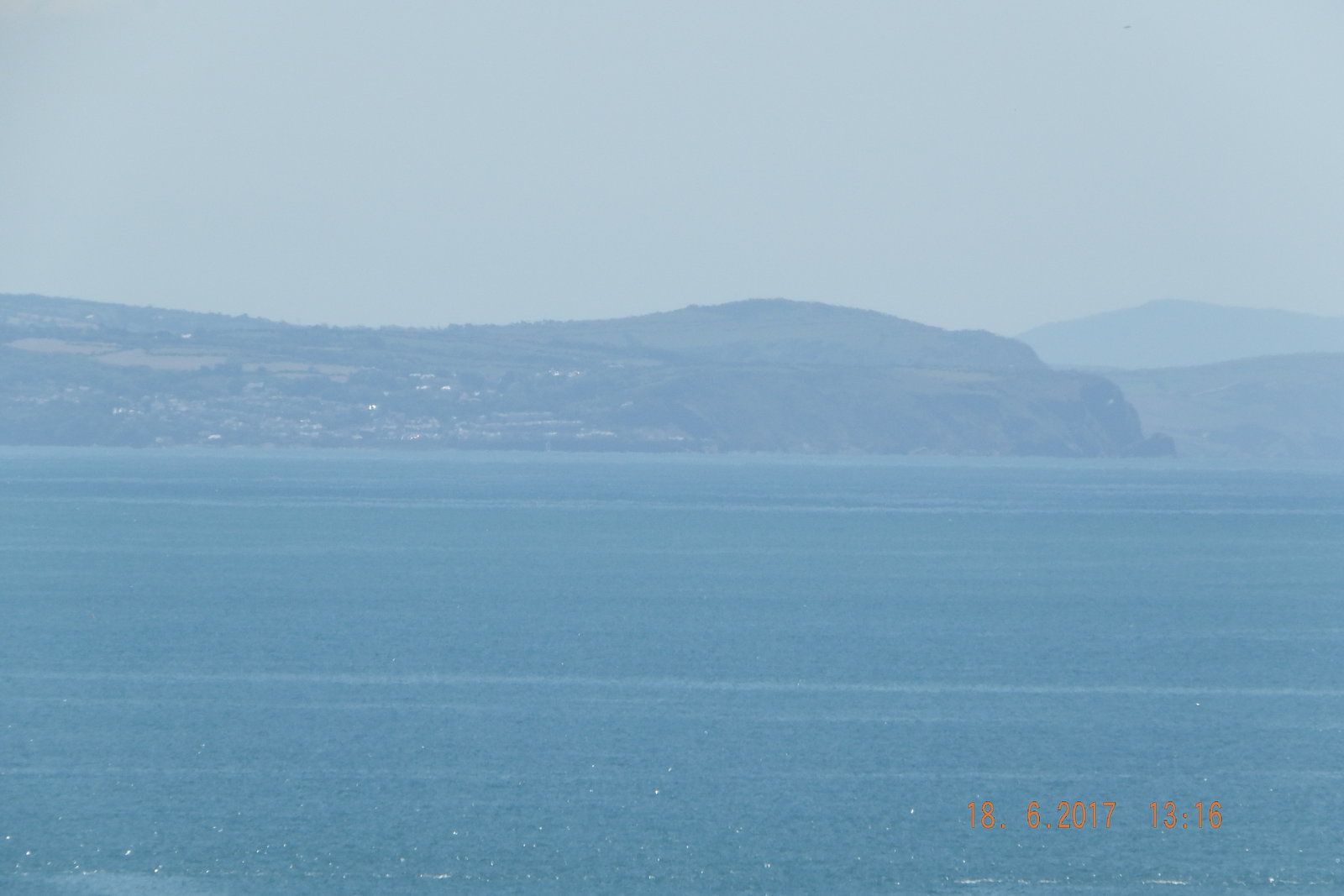

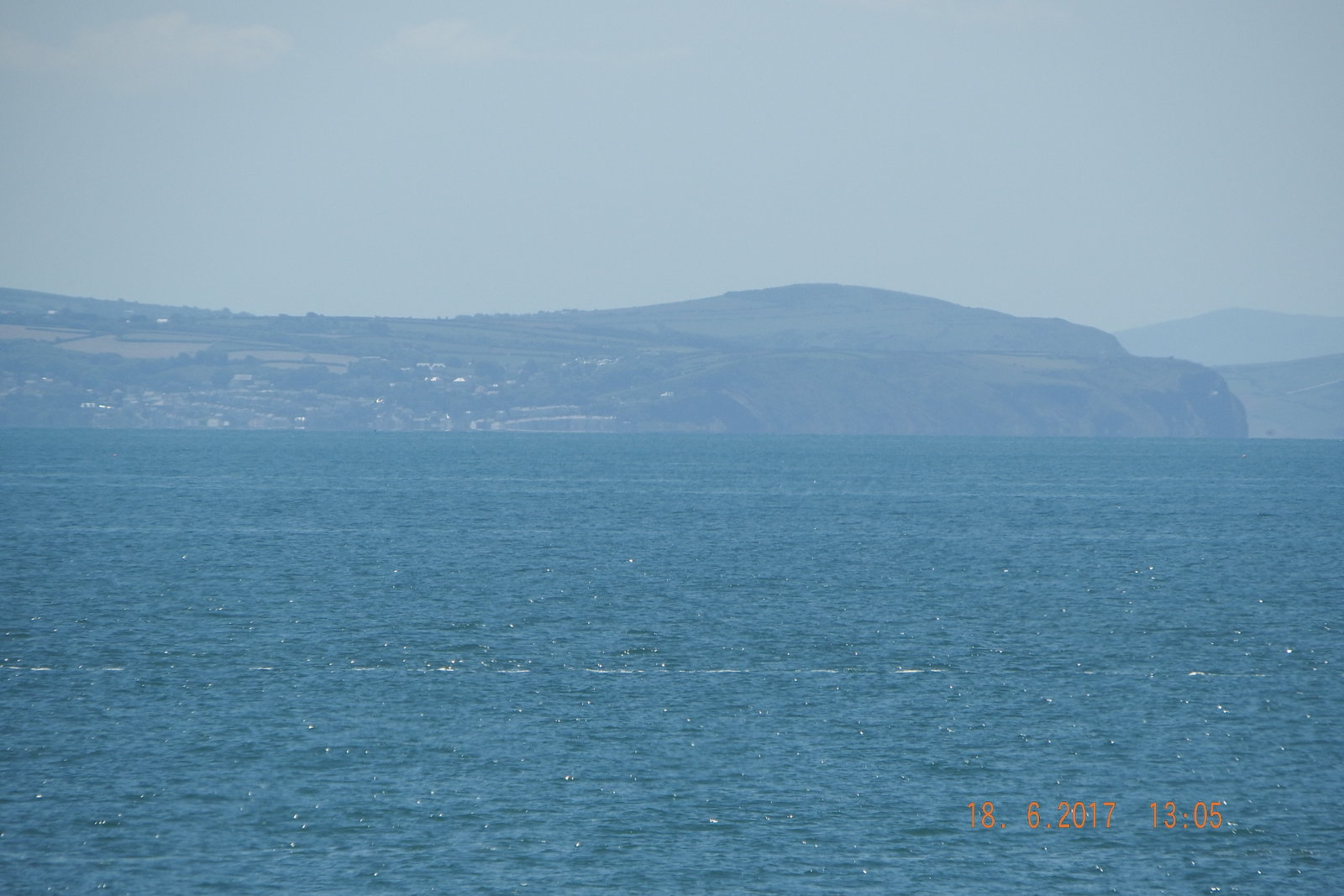

Here are two photos of Newquay Cards. One is from 9metres asl from the stone pier at Aber and the other from 51 metres asl and 1 mile more distant but in line. There is a mirage in the lowerelevation photo. The air was about 26C and the sea probably 10C or so cooler.DSCF4578.JPG DSCF4580.JPG

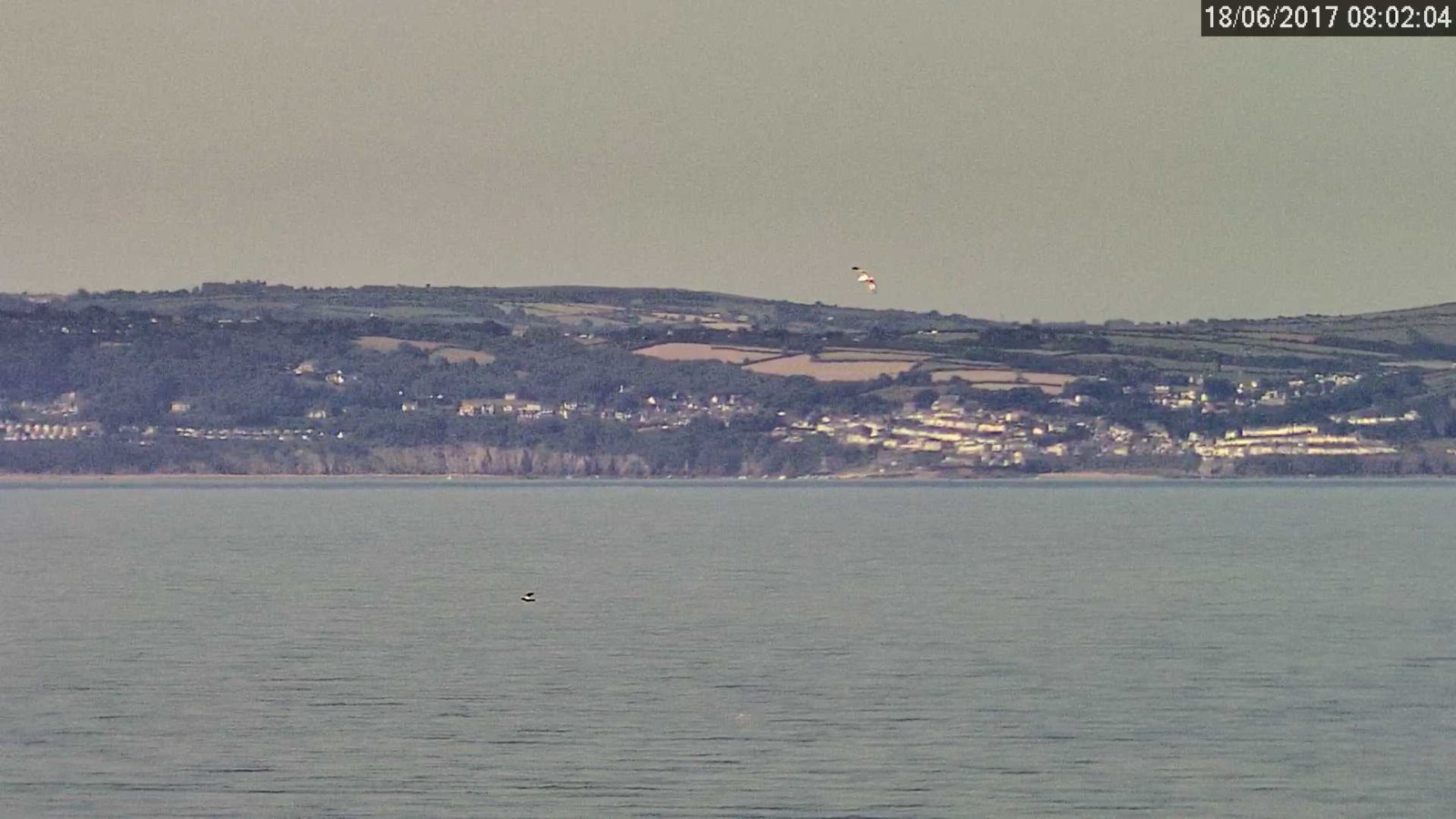

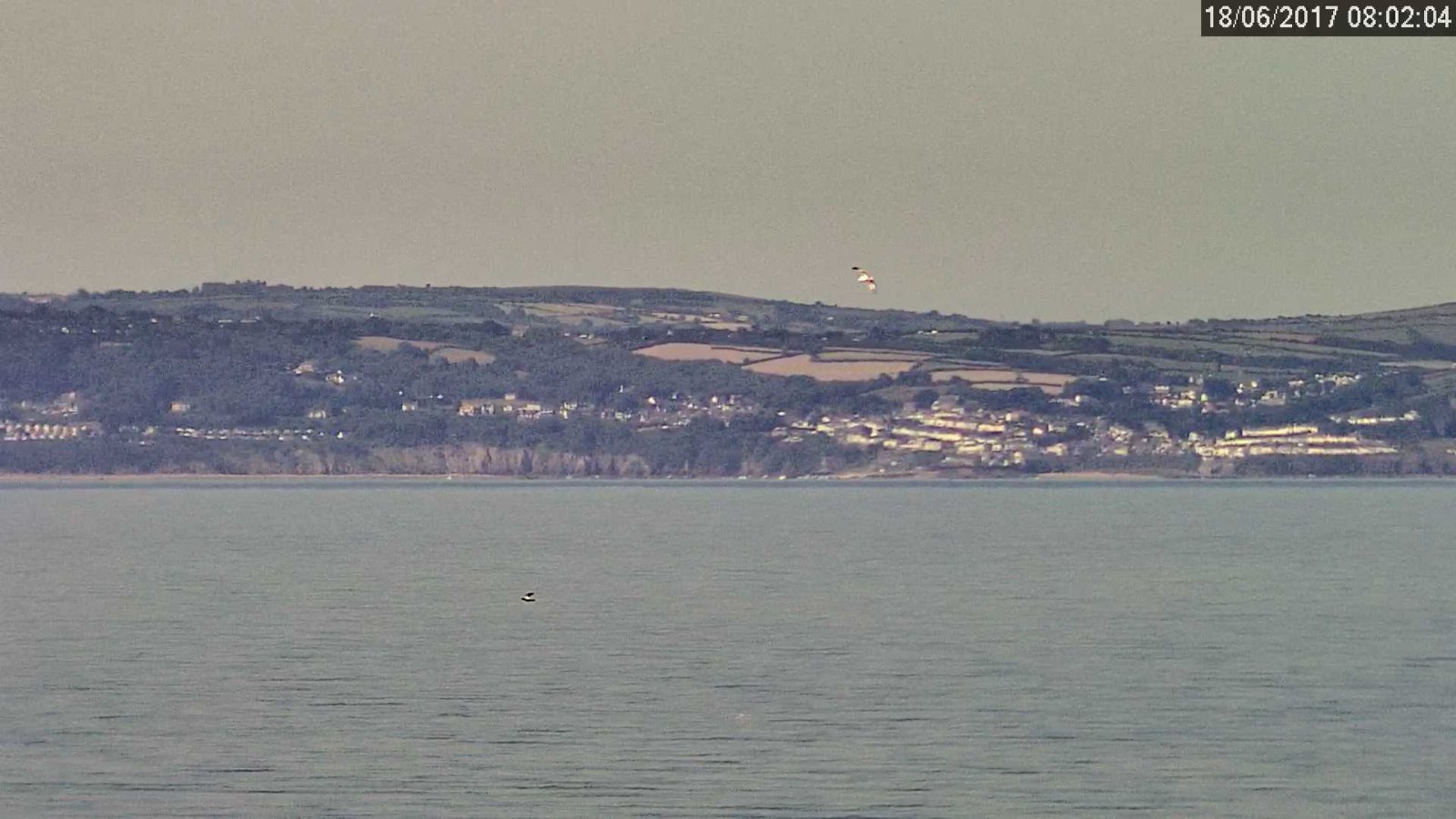

Better in the morning on the webcam..Test2_0_20170618100125.jpg

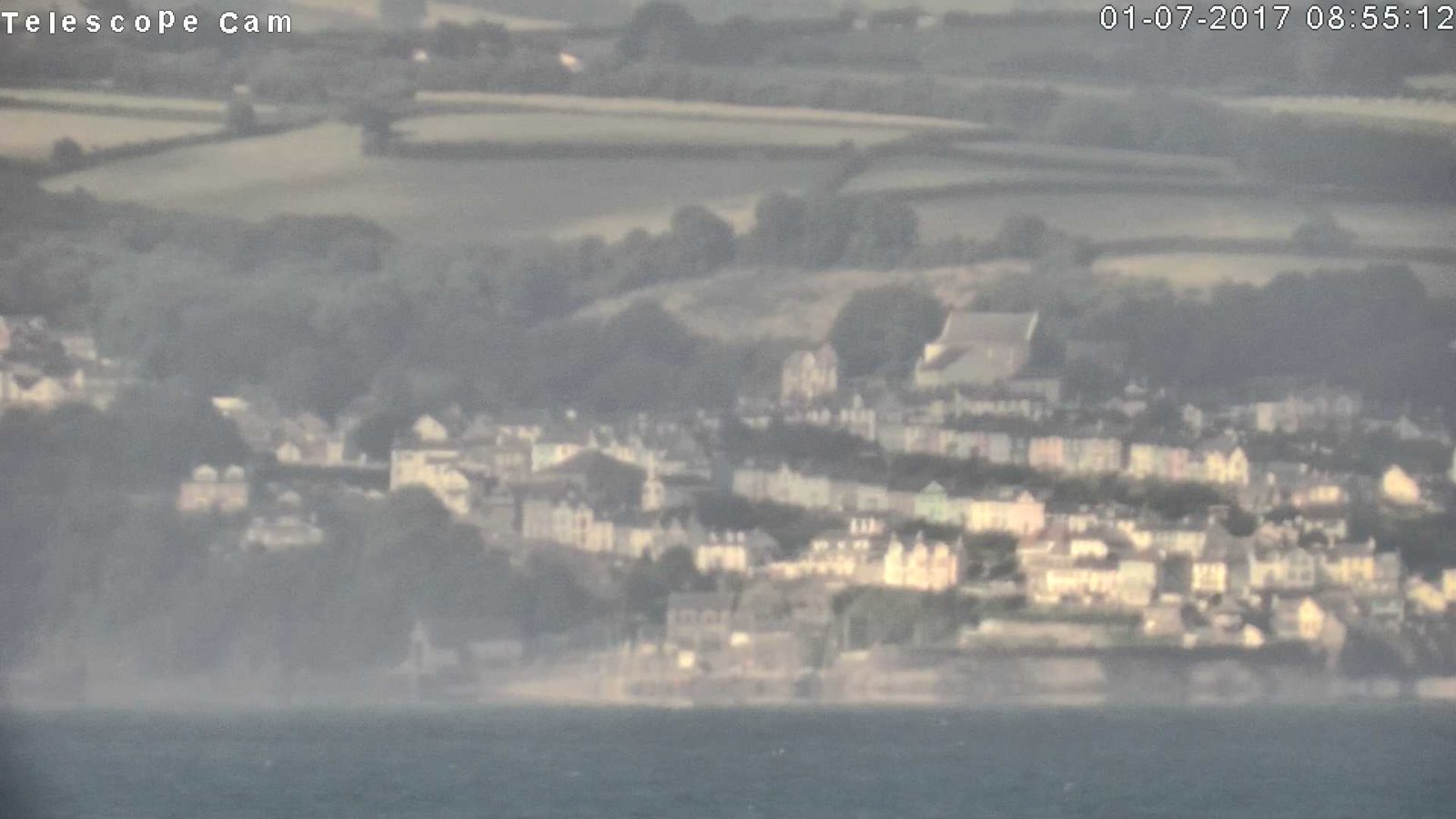

I am puzzled why I am seeing a mirage today from 54metres altitude. The shore is about 18 miles away and both the air and sea temperature are ~14C. The wind is onshore, northerly, about 6knts. The coast there is often at or about at the horizon, perhaps it is closer today giving more displacement of the image.Test_0_20170701085600.jpg
In this photo 1 pixel = 10/(1775*1080) = 5.2e-6 radians

Last edited:

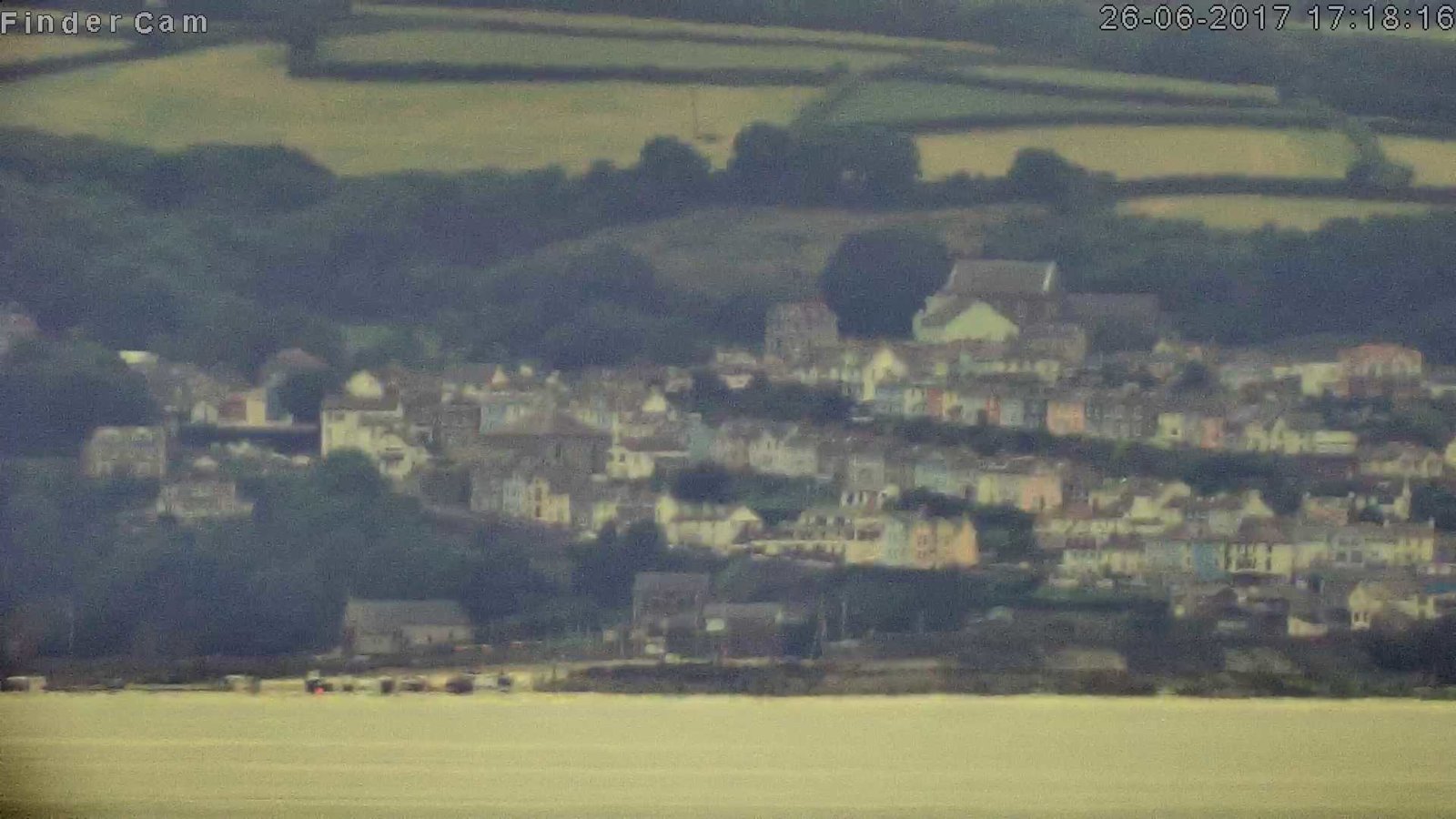

Horizon near the shore on this day.Test_0_20170626171902.jpg
"The existence of a mirage over the sea proves the horizon is closer than the miraged land" - CGMTW.

Last edited:
I found a paper discussing supposed mirages without refraction caused by "a phenomenon of specular reflection at grazing incidence"
https://repository.lib.fit.edu/bitstream/handle/11141/423/CSB2011962A.pdf?sequence=1&isAllowed=y

I'm somewhat skeptical of this, but they appear to have taken good measurement. This raises a possibility that your mirages under low lapse rates are something similar

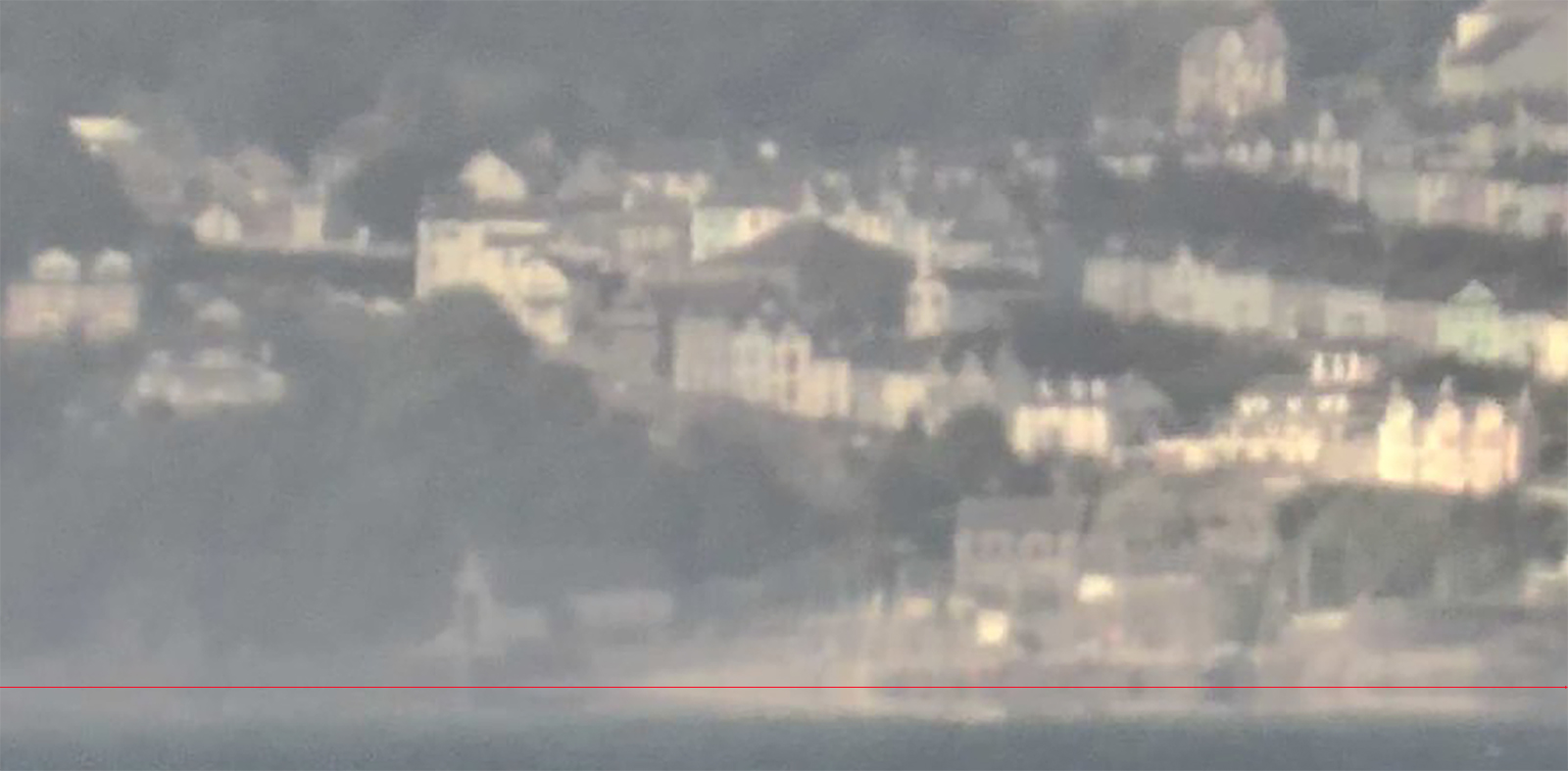

Here's a subpixel aligned comparison (not perfect, as there's very different lighting) with a red line at the reflection horizon
[compare]
Newquay Cards b.jpg Newquay Cards a.jpg
[compare]
I'd be inclined to still think it's refraction. But what of the possibility that a higher tide (and maybe calmer water) created conditions for the grazing reflection discussed in the paper?[/compare][/compare]

A related paper:

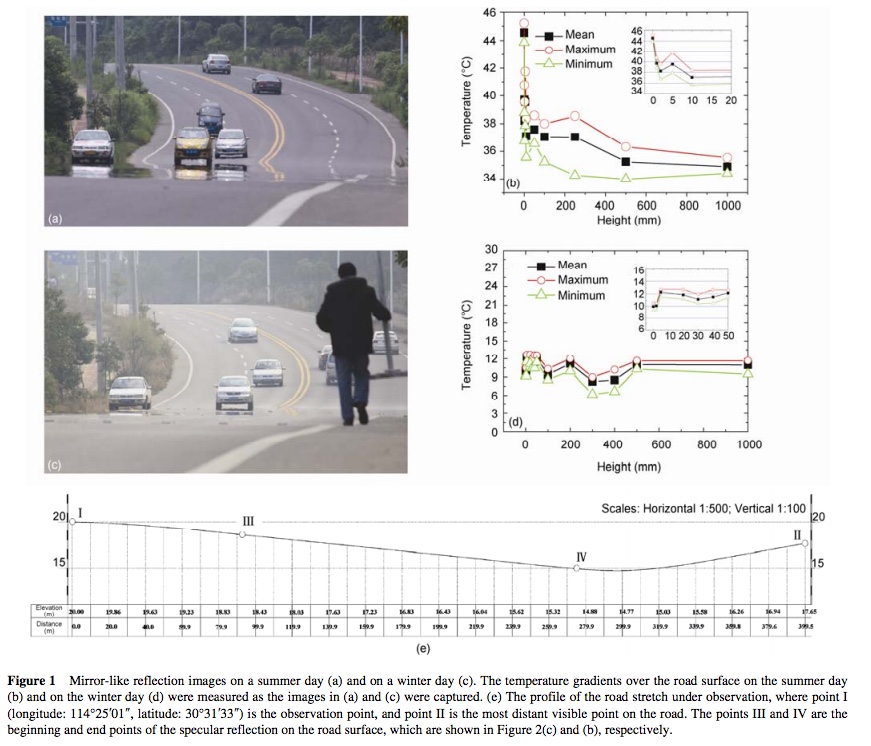

Numerical reproduction and explanation of road surface mirages under grazing-angle scattering (2017)
https://doi.org/10.1364/AO.56.005550

Abstract

The mirror-like reflection image of the road surface under grazing-angle scattering can be easily observed in daily life. It was suggested that road surface mirages may occur due to a light-enhancing effect of the rough surface under grazing-angle scattering. The main purpose of this work is to explain the light-enhancing mechanism of rough surfaces under grazing-angle scattering. The off-specular reflection from a random rough magnesium oxide ceramic surface is analyzed by using the geometric optics approximation method. Then, the geometric optics approximation method is employed to develop a theoretical model to predict the observation effect of the grazing-angle scattering phenomenon of the road surface. The rough surface is assumed to consist of small-scale rough surface facets. The road surface mirage is reproduced from a large number of small-scale rough surface facets within the eye’s resolution limit at grazing scattering angles, as the average bidirectional reflectance distribution function value at the bright location is about twice that of the surface in front of the mirage. It is suggested that the light-enhancing effect of the rough surface under grazing-angle scattering is not proper to be termed as “off-specular reflection,” since it has nothing to do with the “specular” direction with respect to the incident direction.
Content from External Source
It would seem if it works for nearby roads, then it could work for the more distant ocean?

A related paper:

Numerical reproduction and explanation of road surface mirages under grazing-angle scattering (2017)
https://doi.org/10.1364/AO.56.005550

Abstract

The mirror-like reflection image of the road surface under grazing-angle scattering can be easily observed in daily life. It was suggested that road surface mirages may occur due to a light-enhancing effect of the rough surface under grazing-angle scattering. The main purpose of this work is to explain the light-enhancing mechanism of rough surfaces under grazing-angle scattering. The off-specular reflection from a random rough magnesium oxide ceramic surface is analyzed by using the geometric optics approximation method. Then, the geometric optics approximation method is employed to develop a theoretical model to predict the observation effect of the grazing-angle scattering phenomenon of the road surface. The rough surface is assumed to consist of small-scale rough surface facets. The road surface mirage is reproduced from a large number of small-scale rough surface facets within the eye’s resolution limit at grazing scattering angles, as the average bidirectional reflectance distribution function value at the bright location is about twice that of the surface in front of the mirage. It is suggested that the light-enhancing effect of the rough surface under grazing-angle scattering is not proper to be termed as “off-specular reflection,” since it has nothing to do with the “specular” direction with respect to the incident direction.
Content from External Source
It would seem if it works for nearby roads, then it could work for the more distant ocean?

Very interesting, although it was fairly calm, I think the wavelets were probably about a metre or so as they approached a shallow lee shore. There was a large red mooring buoy to the left of the picture ( outside the lifeboat station) which was appearing and disappearing behind waves. I am fairly sure it was over the horizon and too lumpy for the above effect. I sometimes see reflections of the flashing harbour light at night on very calm nights but assume it is just a reflection off very still water.
I think it is probably due to a small temperature difference or humidity effect over a very short height. 1C over 1 metre is the same as a lapse rate of 1000C per, kilometre!
Thanks for the slider thing I must learn to do that!

ps. It was low water at the time of the mirage picture - 1 metre above chart datum. I will try to find the tide data for the other picture.

I think it is probably due to a small temperature difference or humidity effect over a very short height. 1C over 1 metre
That's what I would suspect, the grazing angle thing is interesting though. But it does not seem like a well-known theory - so it might just be some fringe science and experimental error.

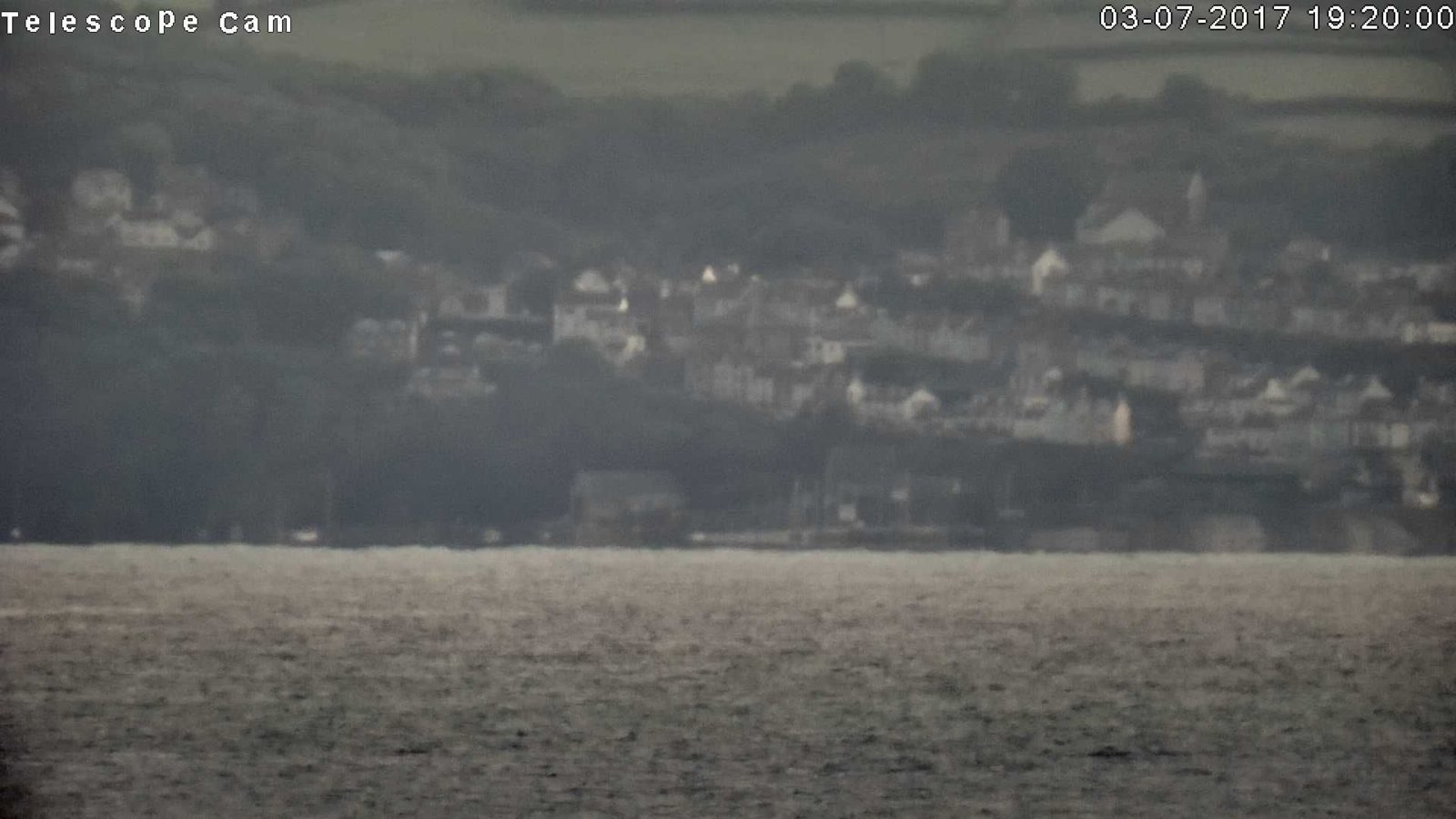

[compare]
Test_1.jpg Test_2.jpg
[/compare]

Seems to work!

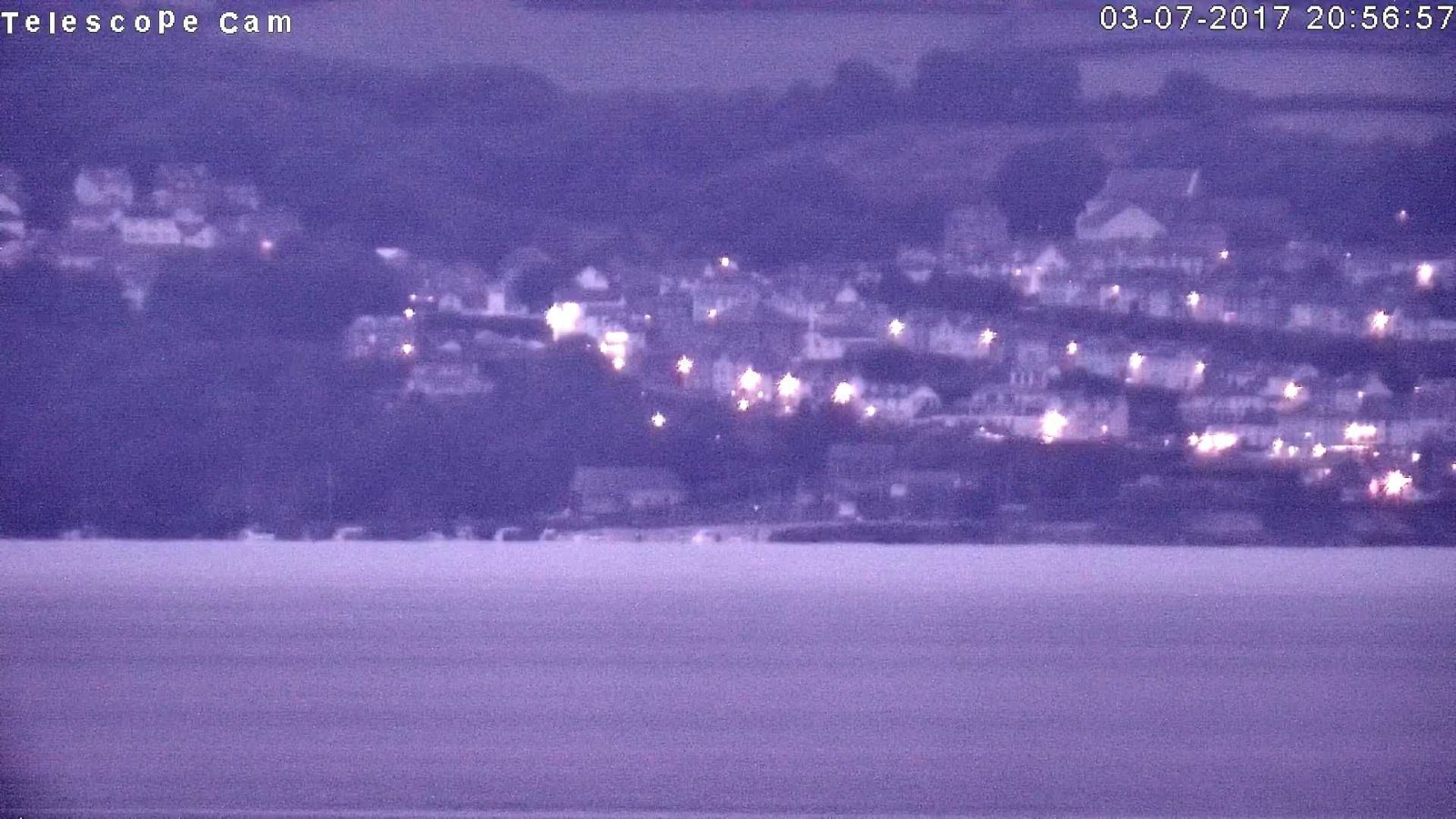

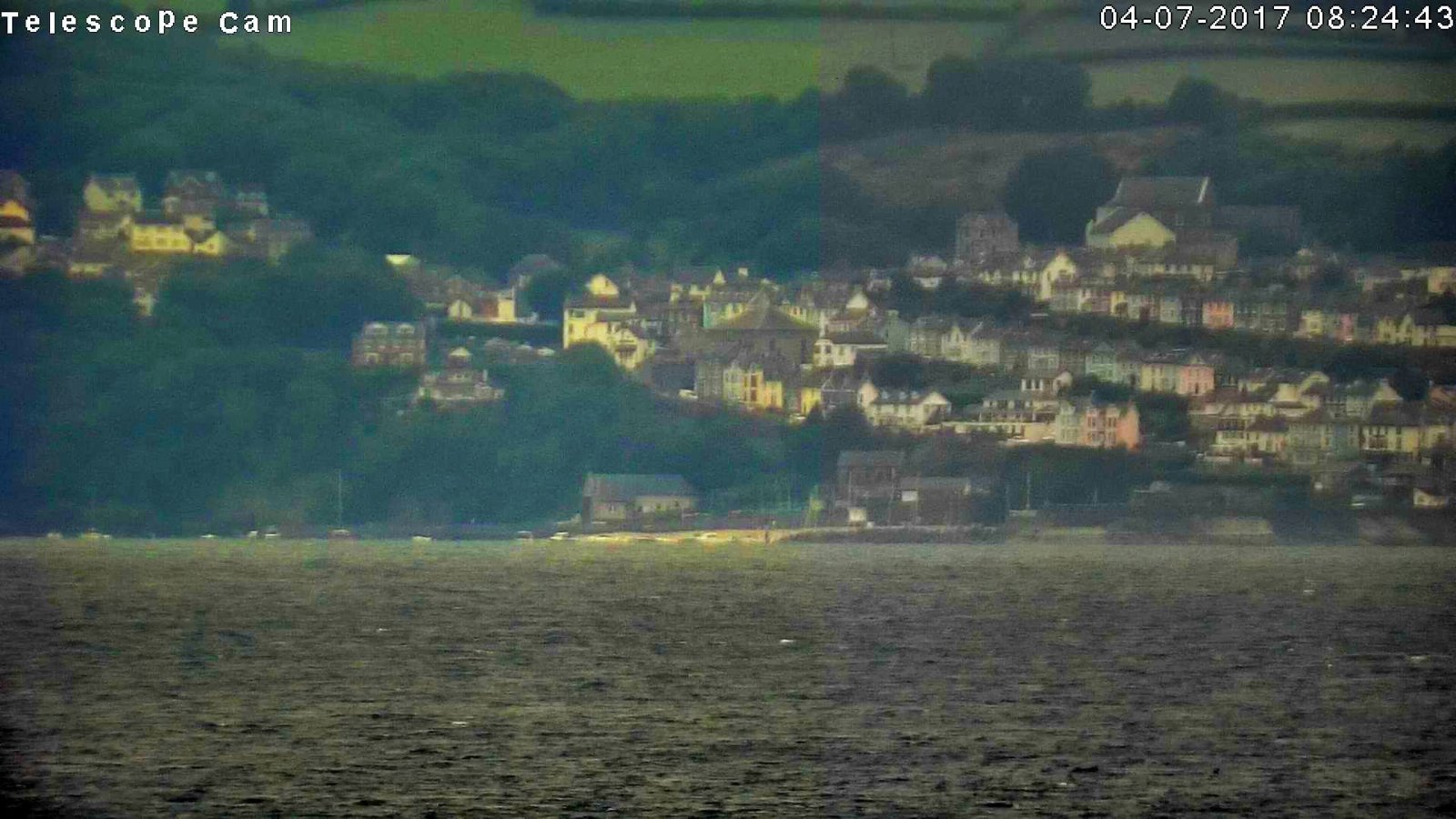

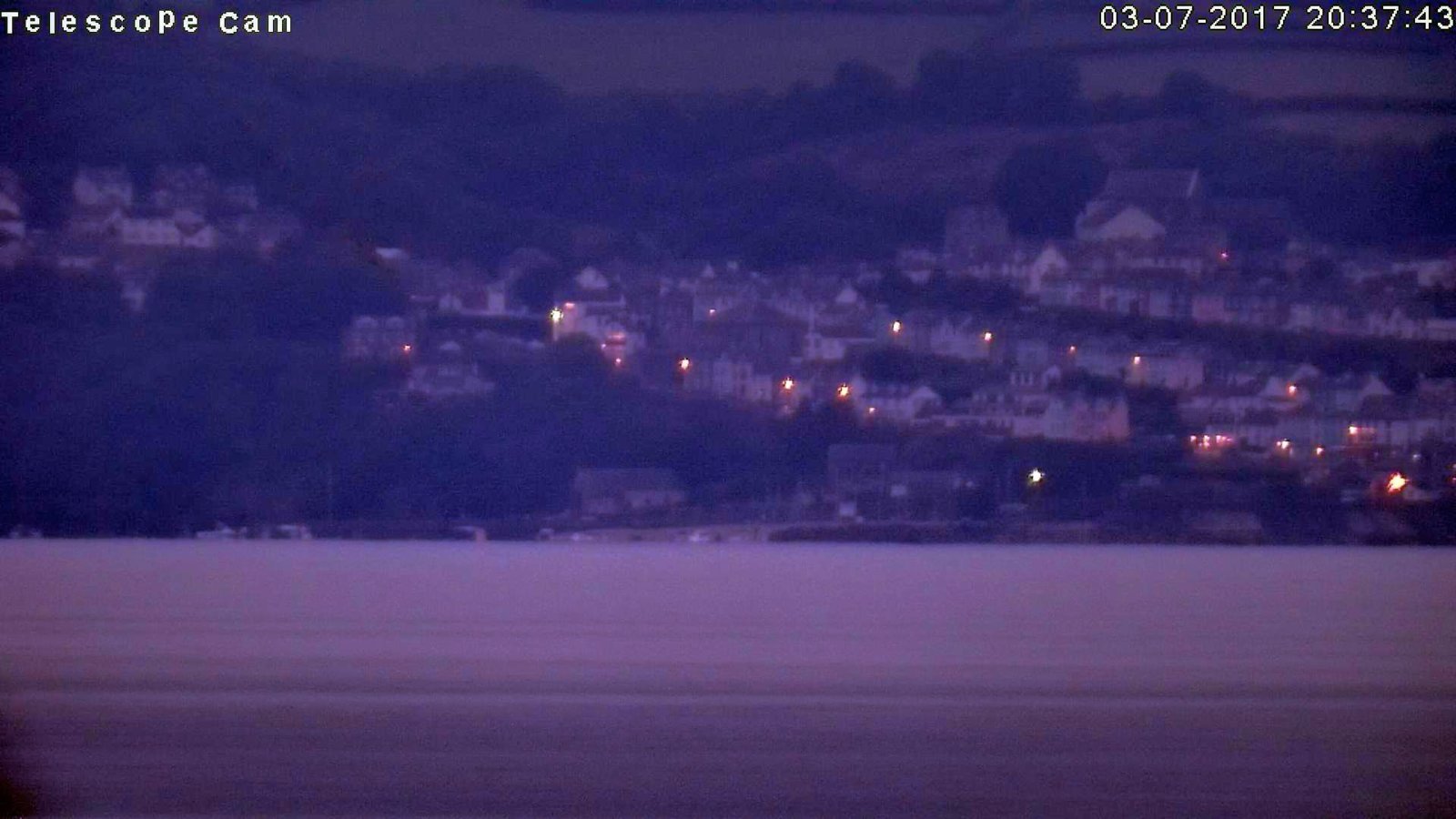

The tide actually went out..
The earlier photo has the time in DST the second UTC as I noticed the mistake in between.

Last edited:

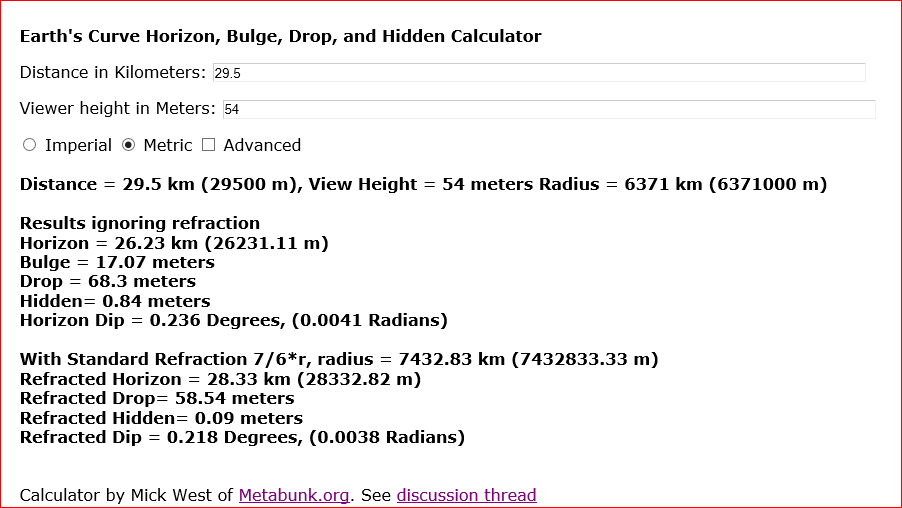

drop newquay.PNG
http://www.newquay-westwales.co.uk/trail.htm[/

Last edited:
