In case you were wondering, the metadata potentially available in the MX system shown is MISB 0601 For the UAS Local data set, and MISB 0605 for inserting the time code.
MISB Metadata, Sitrec Support
- Thread starter Bruce M
- Start date

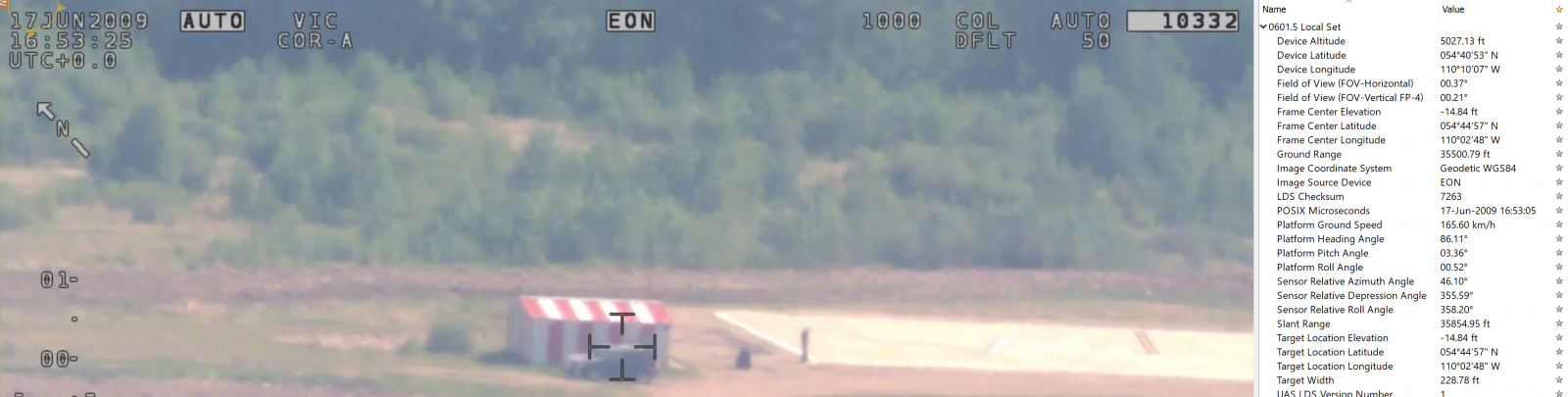

In case you were wondering, the metadata potentially available in the MX system shown is MISB 0601 For the UAS Local data set, and MISB 0605 for inserting the time code.
I use MISB 0601 as the basis of a general internal format in Sitrec for storing video metadata (or time-series data derived from other sources, like ADS-B). I'd like to support the actual MISB format, as it seems to be used by official/military drones, but I'm having a hard time finding any good examples.
MISB 0601 has a packet timestamp, and the 0601 standard references 0605:
https://upload.wikimedia.org/wikipedia/commons/1/19/MISB_Standard_0601.pdf
I can find 0604, https://sightlineapplications.com/misb-standards/MISB-ST-0604.6.pdfExternal Quote:
but not 0605. 0604 seems to relate to correlating precision timestamps with individual frames. 0605 might be similar. But ultimately that's only going to relate to a small, off-by-one-frame error. Right now I just assume frame zero starts at the first timestamp. It would be nice to be more correct. But I'm kind of coding in the dark with the limited examples.
So, if anyone has some raw unclassified MX video with MISB data, send it over!
Bruce M
Member
Found on google:
https://github.com/tayre/klv-decoder/blob/master/README.md#demoarea
samples.ffmpeg.org/MPEG2/mpegts-klv/Day%20Flight.mpg
http://samples.ffmpeg.org/MPEG2/mpegts-klv/
I confirmed it has metadata in it, but its only a couple of updates, not every frame as expected.
Last edited:
Excellent, thank you! My Google-fu failed!
Not ideal, but it's more than I had before.
Bruce M
Member
You dont really need to decode 0605 timestamps. The time in 0601 is the 'system' provided time, usually sync'd to a GPS. the 0605 time is, I think, just referenced to Useconds in the hour, without an overall reference to real time. Useful, i guess, if you are running some process to calculate time between two events and want to count it in frame times. But you could also manually calculate that, if you arent doing it multiple times and want to automate.
I think all MX videos contain 0605, but only some will have 0601, based on both the capabilities of the MX system and the recorder.
Found a better one!
https://www.arcgis.com/home/item.html?id=55ec6f32d5e342fcbfba376ca2cc409a
And it was only somewhat painful to get it working.
Source: https://www.youtube.com/watch?v=tgVHb3Dgp_c
I say "somewhat" as I found a node.js library that did some conversion. I needed a ES Module version, and luckily found someone had done one. But when I added it I found it's was only 80% done, so I had to finish that first.
https://www.metabunk.org/sitrec/?sitch=misb
As I'd hoped, the data is very high resolution. I don't do any smoothing, just linear interpolation between points.
Ideally I'd make this drag-and drop. But for now it needs a a bit of help splitting the video into .klv (the Key-Length-Value encoded metadata) and .mp4 (a video format supported by Sitrec).
https://www.arcgis.com/home/item.html?id=55ec6f32d5e342fcbfba376ca2cc409a
And it was only somewhat painful to get it working.
Source: https://www.youtube.com/watch?v=tgVHb3Dgp_c
I say "somewhat" as I found a node.js library that did some conversion. I needed a ES Module version, and luckily found someone had done one. But when I added it I found it's was only 80% done, so I had to finish that first.
https://www.metabunk.org/sitrec/?sitch=misb
As I'd hoped, the data is very high resolution. I don't do any smoothing, just linear interpolation between points.
Ideally I'd make this drag-and drop. But for now it needs a a bit of help splitting the video into .klv (the Key-Length-Value encoded metadata) and .mp4 (a video format supported by Sitrec).
Bruce M
Member
Very nice!
I had a look and its very impressive. It has a 'import file' button - is it able to actually accept uploaded files? I have some .ts and .mpg I'd be interested in trying out if it works like that.
I'm working on that. In a few days.
Bruce M
Member
Any update? Looking at the Github page, I dont think I'd be able to work out how to use that many new things, so I was hoping that files could be imported here to see what they look like.
There's a "custom" sitch where you can drop a video (.ts converted to mp4) and then a KLV file extracted from a .ts. Still a work in progress. Does not load terrain yet.
It can also load ADSB tracks and MISB extracted to CSV
https://www.metabunk.org/sitrec/?sitch=custom
I could do with some more test data if you have anything you could share.
