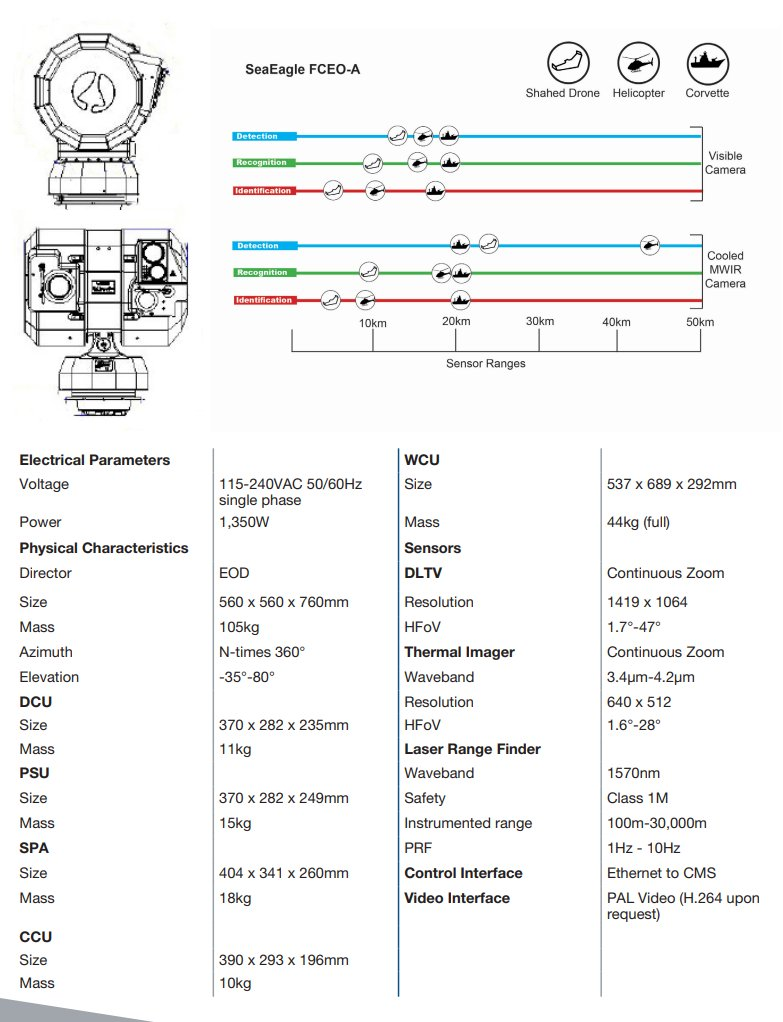

As @dBm mentioned there was an EO/IR capability, the Irish Navy's LÉ William Butler Yeats (P63) is a Samuel Beckett-class OPV with a SeaEagle FCEO-A EO/IR.
It's also come out in the Irish Times that the vessel LÉ Aoibhinn (P71) was in the bay at the time, but it's a smaller vessel and there's no obvious sign of an EO/IR capability.
You can clearly see the stabilised gimballed sensor head (SeaEagle FCEO-A) sitting on a pedestal behind the forward superstructure.
The turret has an excellent line-of-sight in the forward arc — no obstruction except the 76 mm gun, which it sits above.
Everything behind the turret — the mast, the funnel area, the communications arrays — completely obstructs the rear hemisphere.
There is no way this sensor can see backwards from this position.
The turret is placed to starboard, which means the port-side arc is limited by the height of the wheelhouse roof and the forward superstructure.
It has the cleanest coverage on its own side.
It might have recorded imagery, though as we saw at Lakenheath if the EO/IR was looking at a distance aircraft and the image of it was tiny a misidentification could still occur.
It's also come out in the Irish Times that the vessel LÉ Aoibhinn (P71) was in the bay at the time, but it's a smaller vessel and there's no obvious sign of an EO/IR capability.
1. The EO/IR turret is mounted on the bridge roof, slightly aft and to starboard
You can clearly see the stabilised gimballed sensor head (SeaEagle FCEO-A) sitting on a pedestal behind the forward superstructure.
2. Forward view: clear
The turret has an excellent line-of-sight in the forward arc — no obstruction except the 76 mm gun, which it sits above.
3. Aft view: completely blocked by the main mast & superstructure
Everything behind the turret — the mast, the funnel area, the communications arrays — completely obstructs the rear hemisphere.
There is no way this sensor can see backwards from this position.
4. Port-side view: partly restricted
The turret is placed to starboard, which means the port-side arc is limited by the height of the wheelhouse roof and the forward superstructure.
5. Starboard-side view: mostly unobstructed
It has the cleanest coverage on its own side.
It might have recorded imagery, though as we saw at Lakenheath if the EO/IR was looking at a distance aircraft and the image of it was tiny a misidentification could still occur.
