Curious effect over commercial airplane wing. I suspect reflections from ice

Thank you, Mick and all!
I know "Atmospheric Optics" web site and "HaloSim" simulator.
I am interested in how HaloSim simulates and Les Cowley's opinion, if available...

I think that the flow around wings of a flying plane might have dissipative structure (dynamic equilibrium?), which is steady only when a certain input exists; and that the ice crystals there might align in a different way from the air which has not yet disturbed by the plane (perhaps, originally horizontal). That is, (this is my imagination), they are tumbling along an vortex, but their alignment and inclination distribution are steady if seen from a passenger moving with the airplane? The alignment of ice crystals around wings might not be realized in an air without aircraft.

As for aircraft strobe light, it was daytime and the glitter continued in 4.4 seconds at least, so at this time I do not think it as a reason...

And also...
I don't know the altitude, but, judging from the elapsed time, it might be still 7000-8000m (ca. 25000ft), and temperature might be about -20 degree C (ca. -10 F)?

Last edited:
Really interesting video and story, thumbs up to Masayuki for being so accurate in his description of the event!

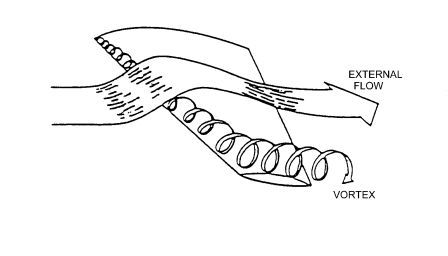

As you guys noticed, there's a vapor line on the winglet, this might be a clue that tells us that there's a source of moisture, therefore, if a cooling mechanism is at play here since the aircraft is already pretty high in the sky where colder temperature can be found (where temp meets the dew point), what we see in the video might just be moisture forming (or already formed) into ice crystals that just bounces off aircraft surfaces. In this (never seen before for me) case, it could be the leading edge of the starboard wing that created two vortices since these crystals seem to be well in focus and outside of the "blurfo zone".


Attachments

Really interesting video and story, thumbs up to Masayuki for being so accurate in his description of the event!

As you guys noticed, there's a vapor line on the winglet, this might be a clue that tells us that there's a source of moisture, therefore, if a cooling mechanism is at play here since the aircraft is already pretty high in the sky where colder temperature can be found (where temp meets the dew point), what we see in the video might just be moisture forming (or already formed) into ice crystals that just bounces off aircraft surfaces. In this (never seen before for me) case, it could be the leading edge of the starboard wing that created two vortices since these crystals seem to be well in focus and outside of the "blurfo zone".
There isn't time for crystals to grow to a size that gives a specular refection. See papers on aerodynamic contrails. Bounce speeds are likely to be much less than ~500 knots. The flashes are unrelated to streamlines, but are a locus of points where you can see a reflection of a light source by the crystals.

As for aircraft strobe light, it was daytime and the glitter continued in 4.4 seconds at least, so at this time I do not think it as a reason...
I am trying to think of a good reason why the horizontal streaks would less than at least the angular width of the sun. Very fast rotation of the ice crystal could do it. If they rotate 60 deg. in 5 metres plane of travel at 250 m/s, it amounts to the image of the sun rotating across the camera at ~ 2*60*250/5 = 6000 degrees/second, which is almost fast enough. If the sun is 0.5 degrees dia. that is equivalent to a flash of 1/12 ms, in which time the plane travels ~250/12 mm... :)

Thanks for the info, I found a rather shot but interesting article about this kind of condensation trails:
http://www.dlr.de/pa/en/desktopdefault.aspx/tabid-2342/6725_read-16936/

So I decided to send an email to Pro.Dr. Bernd Kärcher of the German Aerospace Center Institute of Atmospheric Physics, Atmospheric trace gases.


Could vaporized fluids from a leak (oil, fuel, de-icing, hydraulic/lubricant) in the wing create crystals?

Googling "Lidar horizontal orientation of ice crystals" will throw up some stuff on ice crystal plates.

Thank you, all.
And I'm looking forward to Pro.Dr. Bernd Kärcher's interpretation also.

As for Les Cowley, to tell the truth, I had contacted him last year after my submission to SpaceWeather by e-mail, too.
I received his response as follows:

Dear Masayuki Shiraishi,

Thanks for your note and pictures.

I have in fact already looked very carefully a day or so ago at your stacked image on Spaceweather and also studied the 4s video.

My first reaction was that the 'specks' were on the aircraft window. However, your depth of field arguments are rather convincing. You might want to check your conclusion by imaging a similar star-like pinpoint of light at the window distance using the same lens settings.

A vortex effect seems improbable because the glinting objects are probably ahead of the wing - unless they were very close.

If the glints were from ice crystals, they were not necessarily plates.

I thought about your image for some time. I am sorry to have to say that I cannot think of an atmospheric optics explanation.

The airflow around aircraft produces other effects. See for example this page: http://www.atoptics.co.uk/fz87.htm - unexplained.

You might want to send you image to my colleague Marko Riikonen in Finland ( riikonenmarko@yahoo.com ). He is an expert on halos and could have comments.

I'm sorry not to have been much help.
Best regards,
Les

Les Cowley
Atmospheric Optics - www.atoptics.co.uk
Optics Picture of the Day - www.atoptics.co.uk/opod.htm

...So, at this time I may or may not obtain a new interpretation....
(I have no reply from Riikonen.)
But, by Mick's adequate questioning, I wish he gives us some hints.


Mick West

Administrator
Staff member

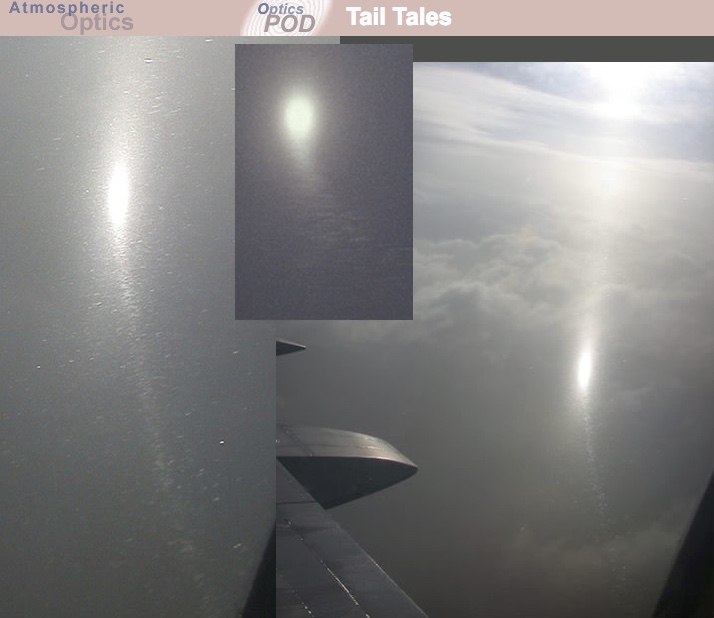

Les Crowly says he does not know, but pointed to this on his site, possibly related:
http://www.atoptics.co.uk/fz87.htm


john Mont

New Member
There's a curious image and brief video at http://spaceweathergallery.com/indiv_upload.php?upload_id=130105 showing an arc of something above the wing of a commercial flight. No flight details were reported.
Source: https://www.youtube.com/watch?v=j4JHVEig2Tw
Video description translated:



I suggested elsewhere that the something are ice crystals, probably plates reflecting sunlight. The orientation may be due to vortexes, turbulence, or something else.

Have people here seen this phenomenon?

The video is important, the image is a composite of the whole video and is very different. Think time lapse photo.

[Mod: added frame grab from video, below]

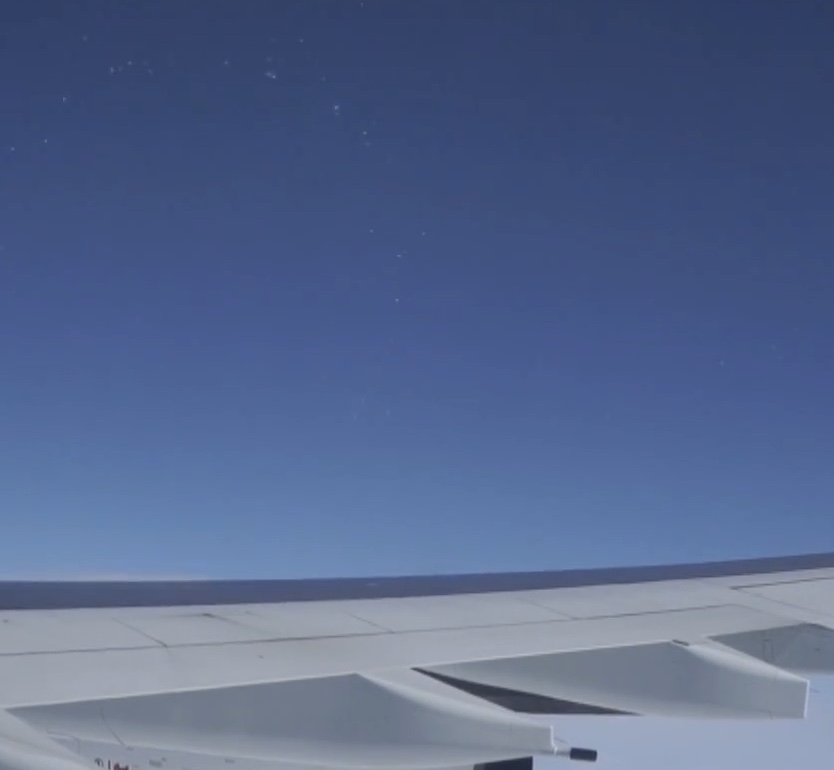

View attachment 22123


Trailblazer

Moderator
Staff member
There is a problem! By measuring the angular length of the light streaks, knowing the camera shutter speed and estimating the airplane airspeed, the distance of the crystals producing the glints can be calculated. In these two separate cases they are 40-60m away.
Presumably this calculation is assuming that the ice crystals are essentially stationary with respect to the surrounding air. Is that necessarily the case though? If there is a vortex being set up and the crystals responsible are moving forward (ie in the same direction as the aircraft) then their relative speed as seen from the aircraft will be lower and the calculation will put them further away than they really are.


JFDee

Senior Member
Airplane windows are usually made of polycarbonates which develop microscopic cracks over time. These can be aligned (like in a crystal) and refract/reflect light depending on the viewing angle.

I think this should be added to the list of possible explanations. There are usually at least two layers between passenger and the plane exterior.

Airplane windows are usually made of polycarbonates which develop microscopic cracks over time. These can be aligned (like in a crystal) and refract/reflect light depending on the viewing angle.

I think this should be added to the list of possible explanations. There are usually at least two layers between passenger and the plane exterior.
This has already been removed.
Anything on the two plane window panes can not be focused at the condition where the photos and movie were taken.
Even the exterior surface of the outer pane of double window is still too close to be in focus (in the depth of field).
It is quite difficult to take a pan-focused photo where both a thing of <20cm distance (window panes) and another thing of 25m distance (wing tip) are simultaneously in focus in F10. In order to take such a photo, at least "F number > 32" and "auto focused distance < 1m" are needed, but neither was realized.

And, there was nothing that lit the cracks on window panes. The right side was in shadow.

(In the first place, I found them (some glints) apparently outside of window, in the air, by naked eyes. At that time my eyes did not focus on the window pane, either. If they were on the window pane, I could recognize that "they are close!".)


Leifer

Senior Member

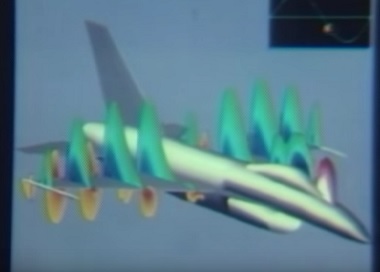

A fast airliner can show signs of a small "transonic shockwave" on it's wings....
~ 0.8 mach.

(look just above the cowling )

and here , on a wing,,,,

And because of the shapes created from this wave, could this be something to look into ?
Would the wave move ice ? , or create it ?

transonic_1.jpg transonic_2.jpg

https://en.wikipedia.org/wiki/Transonic
