WTC7 - Can YOU Spot The Difference?

gerrycan

Banned
Banned

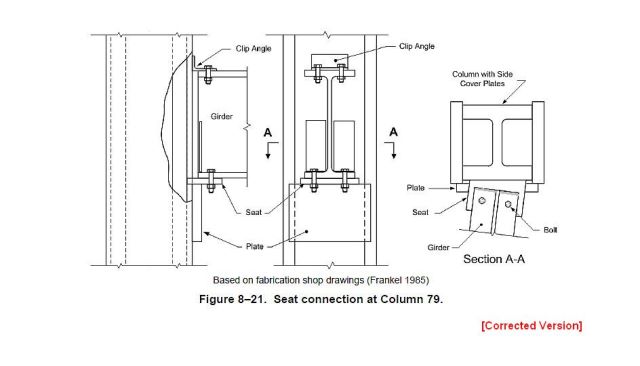

What's the difference? Those plates welded to the girder. They are called stiffeners.

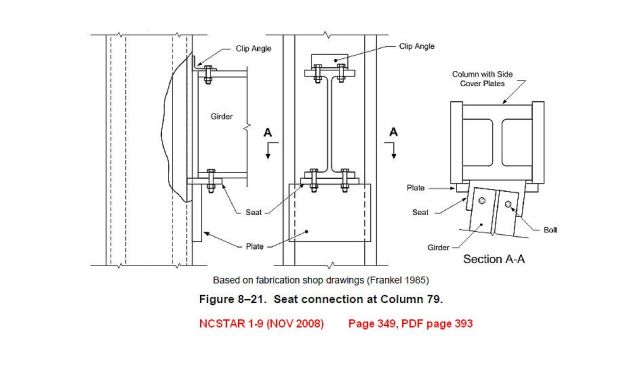

Why aren’t the stiffeners shown in the version above from the NIST report when they are shown in the actual WTC7 drawings?

Why the stiffeners are so important:
Stiffener plates are critically important. They allow a girder to transfer loads to a wider footprint (bearing surface) and increase its ability to resist failure.

The stiffeners not only allow the load to be spread wider, but if the girder could shift (walk-off) as NIST alleges, they strengthen the web and bottom flanges. So if the girder web could somehow reach the edge of the 12” seat, the flanges would not fold under an offset load. NIST claims only 5.5” was necessary. They later revised this to 6.25”, but with the stiffeners the distance required would be approximately 10” before the girder could leave the seat.

The stiffeners would make the type of failure that NIST supposed in their thermal expansion hypothesis completely impossible because the beams could not expand more than 4.75" no matter how hot they got. The reason the expansion is limited is because at just above 600C the beams shorten due to sagging more than they expand.

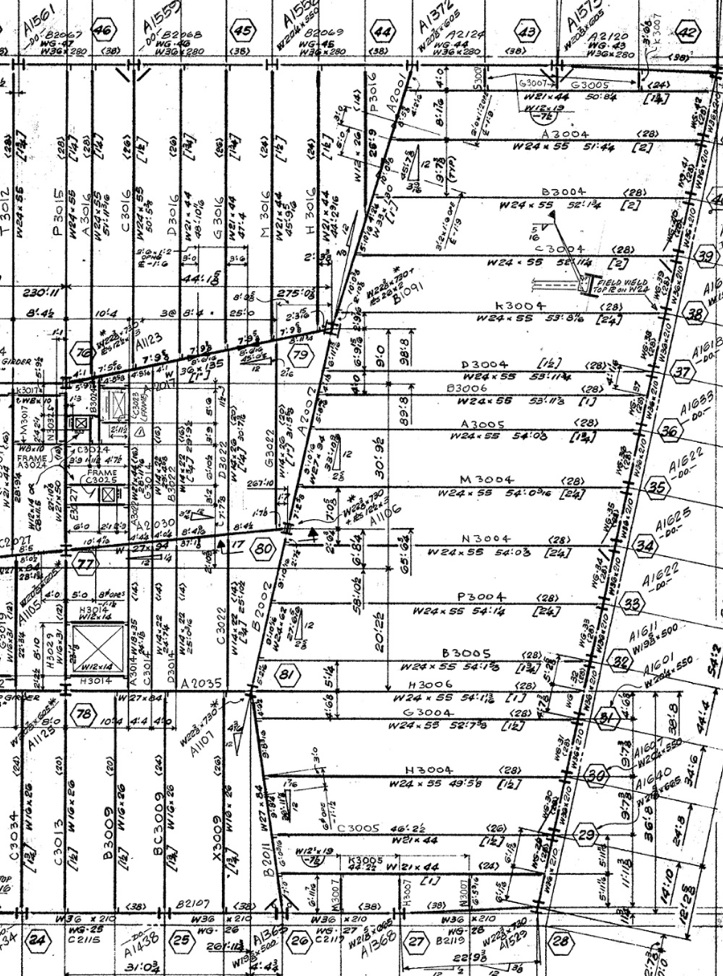

The stiffener plates as shown in the WTC7 drawings were installed on the key girder that NIST claims initiated an unprecedented global progressive collapse of the building. NIST did not include them in their analysis.

Thus if the girder can’t walk-off the seat it does not fall onto floor 12 and likewise floor 12 doesn’t collapse. The whole progressive collapse scenario evaporates without an initiating event. The stiffeners are the Achilles Heel of the NIST conclusion. They are truly the “game changers” described by mechanical engineer Tony Szamboti. Many other engineers agree. This walk-off is a pure, unadulterated fantasy.

Last edited by a moderator:

Mick West

Administrator
Staff member
Even if it were impossible for the girder to walk off all by itself, neither of NISTS simulations of the building collapse sequence rely on this as a single point of failure. Multiple girders and beams actually failed, including the floor systems adjacent to, and above this girder.

I know you don't like the simulations. But the idea this particular connection failed (at some point) actually comes from the simulations.

So why do you ignore all the other failures?


kawika

New Member
Even if it were impossible for the girder to walk off all by itself, neither of NISTS simulations of the building collapse sequence rely on this as a single point of failure. Multiple girders and beams actually failed, including the floor systems adjacent to, and above this girder.

I know you don't like the simulations. But the idea this particular connection failed (at some point) actually comes from the simulations.

So why do you ignore all the other failures?
If you study the SIMs and the reports at length you will soon discover that they are at odds with each other. The SIM shows the 14th floor falling into the 13th. The A2001 girder does not walk. It buckles in the middle. The NE floor system and the girder fall into F12 and stop.

The narrative should have been created after the SIMs. After all the SIMs were necessary to help NIST understand what went on out of sight.

Why don't they match?


gerrycan

Banned
Banned
Even if it were impossible for the girder to walk off all by itself
It is, I thought you had accepted this by now, you have been presented with the evidence for this elsewhere and have been unable to even come close to debunking it.
neither of NISTS simulations of the building collapse sequence rely on this as a single point of failure
But their explanation for the buildings collapse clearly does. Just because you can find a simulation output that also does not support this, it does not change that fact, and that is why you keep having to run to hypothetical models that you have no data for.
Multiple girders and beams actually failed, including the floor systems adjacent to, and above this girder.
In a model that you have no data for and that you cannot check or verify in any way, yes it does. On the other hand you have been presented with facts and figures that totally refute your stance, and are unable to debunk them. You need to counter facts and figures with the same level of evidence, not cartoons, because that's all these are until you can back them up with some data.
I know you don't like the simulations. But the idea this particular connection failed (at some point) actually comes from the simulations.
And in order for that connection to fail NIST say repeatedly that thermal expansion of floor beams to the east of column 79 was the cause. An occurrence that has been proven to be impossible.
So why do you ignore all the other failures?
Because they are based on alleged model outputs that you have no data for and cannot verify, other than stating that NIST have admitted that they were unable to model the connection detail properly. Why would you try to refute facts and figures with something that you know not to be accurate and that you also have no data whatsoever for?


hiper

Active Member
I know you don't like the simulations. But the idea this particular connection failed (at some point) actually comes from the simulations.

So why do you ignore all the other failures?
Even if it were impossible for the girder to walk off all by itself, neither of NISTS simulations of the building collapse sequence rely on this as a single point of failure. Multiple girders and beams actually failed, including the floor systems adjacent to, and above this girder.

I know you don't like the simulations. But the idea this particular connection failed (at some point) actually comes from the simulations.

So why do you ignore all the other failures?
WTC 7 is gone Mick... its remains were not examined & were swiftly carted away. Combine this with the manner it disintegrated and the alledged cause of the total failure and it should tell a person all he or she needs to know.

Last edited:

Mick West

Administrator
Staff member
It is, I thought you had accepted this by now, you have been presented with the evidence for this elsewhere and have been unable to even come close to debunking it.
The problem is you keep trying to reduce everything to this one simple thing, when the real situation was not simple.

It does not seem like the girder would have been pushed far enough to the west for the east flange to fail, especially if there were stiffener plates.
It DOES look like it was pushed quite a way, all the bolt would have failed at both ends, the attached beams were sagging, possibly the girder itself was starting to lose strength.
It DOES look like many other girder, beam, and connections were badly damaged to the point of failure. Including above floor 13.
It DOES look like some floor collapses were inevitable.

So I'd be fine with you (provisionally) taking the girder walk-off out of the NIST narrative, and just going by what is left. Because all that seems to do is invalidate a point in the probable collapse sequence, meaning something slightly different is needed.


gerrycan

Banned
Banned
The problem is you keep trying to reduce everything to this one simple thing, when the real situation was not simple.
You mean that I am focusing in on the very specific claims that NIST are making and debunking them one at a time, which is actually the way to approach this issue, very specifically and in a quantifiable way.
It does not seem like the girder would have been pushed far enough to the west for the east flange to fail, especially if there were stiffener plates.
So the girder would not fail and would in fact have continued to provide column 79 with lateral support.
It DOES look like it was pushed quite a way, all the bolt would have failed at both ends, the attached beams were sagging, possibly the girder itself was starting to lose strength.
Given that unrestrained max shift it could do about 4.75" max, i think that "quite a way" is quite a stretch here. It cannot get pushed far enough to stop providing the column with lateral stability is the point.
It DOES look like many other girder, beam, and connections were badly damaged to the point of failure. Including above floor 13.
In the hypothetical simulation outputs that you have no data for maybe, yes. So, which connections are we talking about exactly here? Which beams and girders do you suppose look like they were 'badly damaged to the point of failure'? You can refer to E12/13 for the locations and specific call outs for the elements.
It DOES look like some floor collapses were inevitable.
What indicates this inevitability to you specifically? Do you know that the girders all have quite a thick mesh embedded into the floor system above them? Again, you need to be less general with these claims, otherwise they are just your opinions, with nothing at all to substantiate them, which i would guess, make them your guesses.
So I'd be fine with you (provisionally) taking the girder walk-off out of the NIST narrative, and just going by what is left. Because all that seems to do is invalidate a point in the probable collapse sequence, meaning something slightly different is needed
Thanks for that. It's nice to know that accepted laws of physics and engineering are at least ok to apply to some parts of the building.

What you have here is very general guesses as to what might have happened. Like the simulations that you refer to so often, these guesses that you keep making have absolutely nothing to back them up. You need to counter like with like. I would be happy to check out your claims if you just specify the elements and connections that you are talking about. You seem to be trying to play down the fact that the initiating event that NIST claimed has been proven to you to be an impossibility and moving onto other elements and connections as quickly as you can to avoid the issue of the connection. That's fine, but please be specific, so that your claims can be scrutinised.


Mick West

Administrator
Staff member
There's no way of knowing exactly what happened inside the building, as there are too many variables. It's silly to present NIST's findings as the only possible things that could have happened, when they themselves only describe it as "probable". Lots of other things could have happened to initiate the floor collapse, so it seems quite a likely hypothesis.


hiper

Active Member
Lots of other things could have happened to initiate the floor collapse,
Wrong. Steel frame buildings are not susceptible to "lots of other things" that can initiate total structural failure.
In fact there is only one thing they are susceptible to and that is controlled demolition.


Mick West

Administrator
Staff member
Wrong. Steel frame buildings are not susceptible to "lots of other things" that can initiate total structural failure.
In fact there is only one thing they are susceptible to and that is controlled demolition.
Rather a broad claim. I was only talking of things that could initiate a floor collapse.


hiper

Active Member
Rather a broad claim. I was only talking of things that could initiate a floor collapse.
A broad claim? The total structural integrity of WTC 7 was compromised.. that's why it totally collapsed.

Even NIST couldn't find a way to ignore WTC 7 being in free fall for a period of time. Free fall means zero structural resistance and this can only point to one thing.


Mick West

Administrator
Staff member
A broad claim? The total structural integrity of WTC 7 was compromised.. that's why it totally collapsed.

Even NIST couldn't find a way to ignore WTC 7 being in free fall for a period of time. Free fall means zero structural resistance and this can only point to one thing.
You are getting off topic. The issue here is if the presence or absence of those stiffener plates are entirely crucial to a local initiating event of flor collapse.

What happens after the floor collapse it a different discussion. Please stick to the topic.


gerrycan

Banned
Banned
There's no way of knowing exactly what happened inside the building, as there are too many variables. It's silly to present NIST's findings as the only possible things that could have happened, when they themselves only describe it as "probable". Lots of other things could have happened to initiate the floor collapse, so it seems quite a likely hypothesis.
Ok, give me a hypothetical for the initiation of floor collapse then, that does not involve failure of the C79-44 girder.


Mick West

Administrator
Staff member

Attachments

Last edited:

Mick West

Administrator
Staff member
Fire.

Gerry, if you want to demonstrate you've eliminated all possible causes of collapse, then why don't you set up a site and list them all, and show how you eliminated them.


gerrycan

Banned
Banned
Fire.

Gerry, if you want to demonstrate you've eliminated all possible causes of collapse, then why don't you set up a site and list them all, and show how you eliminated them.
I would rather deal with them one at a time, so what's yours?


Mick West

Administrator
Staff member
But I'm not picking any one in particular, just that is seems very likely there's a range of possibilities.

You claim the omission is "critical", so it's up to you to demonstrate it.


gerrycan

Banned
Banned
But I'm not picking any one in particular, just that is seems very likely there's a range of possibilities.

You claim the omission is "critical", so it's up to you to demonstrate it.
I think that has been aptly demonstrated. Missing out elements and getting a thermal expansion calculation wrong is critical. You got the same equation correct once given the variables, why did NIST get it wrong?


Mick West

Administrator
Staff member
I think that has been aptly demonstrated. Missing out elements and getting a thermal expansion calculation wrong is critical. You got the same equation correct once given the variables, why did NIST get it wrong?
Where did NIST get it wrong? Their most detailed simulation of the connection did not show that the girder was pushed off its seat to the west.

So where exactly do you think they did a calculation, and got that calculation wrong?


gerrycan

Banned
Banned
Where did NIST get it wrong? Their most detailed simulation of the connection did not show that the girder was pushed off its seat to the west.

So where exactly do you think they did a calculation, and got that calculation wrong?
As you stated in one or your posts, they calculated that the girder had moved over 5.5 inches, this is wrong on 2 counts. It would not be halfway along the seat that they got the dimensions wrong for, and by your own reckoning would have been in excess of what the expanding beams would allow.


Mick West

Administrator
Staff member
As you stated in one or your posts, they calculated that the girder had moved over 5.5 inches, this is wrong on 2 counts. It would not be halfway along the seat that they got the dimensions wrong for, and by your own reckoning would have been in excess of what the expanding beams would allow.
Did they calculate it? Where?


gerrycan

Banned
Banned
If they didn't calculate it, then they must have just 'guessed' when they supposed that the girder moved 5.5". Is it reasonable to expect NIST to guess this kind of movement at the most critical part of the building in relation to their hypothesis? Bacuse if you can't find a calculation to back that up they might have. You have actually done the calculation yourself, taking the element dimensions from the drawings and the temperatures from NISTs own report. Can you remember what the maximum expansion in the beam was?

Wrong. Steel frame buildings are not susceptible to "lots of other things" that can initiate total structural failure.
In fact there is only one thing they are susceptible to and that is controlled demolition.
Fires can cause steel structures to fail and thermal expansion and collapse can occur even without a fire.

"Temperature Effect

Space trusses are subject to thermal expansion and contraction due to changes in temperature and thus may be subject to axial loads if restrained. Potential temperature effect must be considered in the design especially the span is large." http://ktsadium.wordpress.com/


Mick West

Administrator
Staff member
If they didn't calculate it, then they must have just 'guessed' when they supposed that the girder moved 5.5". Is it reasonable to expect NIST to guess this kind of movement at the most critical part of the building in relation to their hypothesis? Bacuse if you can't find a calculation to back that up they might have. You have actually done the calculation yourself, taking the element dimensions from the drawings and the temperatures from NISTs own report. Can you remember what the maximum expansion in the beam was?
4 and a bit as I remember it. But my suggestion here is that NIST were just marking it as failed based on the simulations reporting it as failed. They did not explicitly do a calculation of that specific mode of failure you are suggesting is all-important.

If I were debugging this, I'd make a 3D rendering of the floor system from the ANSYS model, and see exactly what it says happened.


gerrycan

Banned
Banned
No, NIST clearly said that once the element had moved over 5.5" it was deemed to have failed. So again, they have assertions with no data, and when you do the math, they got it wrong. Critical error there.

A broad claim? The total structural integrity of WTC 7 was compromised.. that's why it totally collapsed.

Even NIST couldn't find a way to ignore WTC 7 being in free fall for a period of time. Free fall means zero structural resistance and this can only point to one thing.
no, a point on the exterior was measured moving downward at a rate like "free fall" But we know the exterior was connected to the inside structure, so it wasn't freely falling.

If I have 2 weights tied by a rope together on a table & I push one off the side of the table, it is not strange to think that the second weight might fall at a speed faster than free fall for a few seconds as the initial jerking motion of the first weight tied to the rope pulls on the second.

I looked at "WTC7: NIST Finally Admits Freefall (Part I)" and David Chandler omits the start of the collapse! Note that his video says "Comments are disabled for this video." Chandler starts his measurement AFTER the collapse has already started. That isn't a minor point.

"WTC 7's collapse, viewed from the exterior (most videos were taken from the north), did appear to fall almost uniformly as a single unit. This occurred because the interior failures that took place did not cause the exterior framing to fail until the final stages of the building collapse. The interior floor framing and columns collapsed downward & pulled away from the exterior frame. There were clues that internal damage was taking place, prior to the downward movement of the exterior frame..."


NIST is answering this question: "IN A VIDEO, it appears that WTC 7 is descending in free fall ..." Those calculations are about THAT. "To further clarify the descent of the north face, NIST recorded the downward displacement of a point near the center of the roofline from first movement until the north face was no longer visible in the video." (The "free fall" you cite is about THAT video, NOT the total collapse sequence which actually starts with the penthouse.)


Mick West

Administrator
Staff member
No, NIST clearly said that once the element had moved over 5.5" it was deemed to have failed. So again, they have assertions with no data, and when you do the math, they got it wrong. Critical error there.
Bu that was not the only failure criteria in the model. In the LS-DYNA 47 model it appears to walk off axially after buckling when F14 falls on it. In the first model it does not walk off at all. In the ANSYS they say it failed, but don't give exact details.


MikeC

Closed Account
No, NIST clearly said that once the element had moved over 5.5" it was deemed to have failed. So again, they have assertions with no data, and when you do the math, they got it wrong. Critical error there.
Why is it a CRITICAL error?


gerrycan

Banned
Banned
Bu that was not the only failure criteria in the model. In the LS-DYNA 47 model it appears to walk off axially after buckling when F14 falls on it. In the first model it does not walk off at all. In the ANSYS they say it failed, but don't give exact details.
Seeing as we have no input data it is impossible to say how accurate these cartoons really are, but I think you have seen for yourself that they do not match with NISTs conclusions, and contradict each other as well.


Mick West

Administrator
Staff member
Seeing as we have no input data it is impossible to say how accurate these cartoons really are, but I think you have seen for yourself that they do not match with NISTs conclusions, and contradict each other as well.
So regardless of the stiffener plates, you'd disregard all of the NIST's simulation results then?


gerrycan

Banned
Banned
Why is it a CRITICAL error?
They had the seat plate width wrong, and they missed out crucial elements on the connection. These would have increased the walk off distance required, so if they had been included in NISTs analysis, they would have had to try a new hypothesis, as they would have observed that this one would not initiate collapse as they stated in their report, and model descriptions.


gerrycan

Banned
Banned
So regardless of the stiffener plates, you'd disregard all of the NIST's simulation results then?
Until there is data to allow them to be checked yes. If they were going to introduce these in a court as being FEA output simulations, they would be required to produce the input data for them. If they did release the data their analysis could be checked fairly easily.


Mick West

Administrator
Staff member
Until there is data to allow them to be checked yes. If they were going to introduce these in a court as being FEA output simulations, they would be required to produce the input data for them. If they did release the data their analysis could be checked fairly easily.
But I thought you thought it was all flawed regardless? Not enough detail?

You've got the LSDYNA model without connections, can't you determine if there are any mistakes in that?

Dimensional mistakes, omissions of parts, etc.


gerrycan

Banned
Banned
But I thought you thought it was all flawed regardless? Not enough detail?

You've got the LSDYNA model without connections, can't you determine if there are any mistakes in that?

Dimensional mistakes, omissions of parts, etc.
How can you analyse something for which you have no data??


Mick West

Administrator
Staff member
Verify the precision of one set of data should give you an idea of how accurate they are in general. If you find an unreasonable amount of errors, it would be quite significant.


gerrycan

Banned
Banned
It has dimensional data, doesn't it? You can see if things are the right size.
The structural drawings are where I would go for dimensional data, not a model that by NISTs own words and your own conclusion does not replicate the building accurately.


gerrycan

Banned
Banned
Verify the precision of one set of data should give you an idea of how accurate they are in general. If you find an unreasonable amount of errors, it would be quite significant.
NIST said that they were unable to model accurately because of the target element size at the connections, so I need look no further than that to establish the lack of accuracy in the simulation. However, when one looks further into the simulations, they do not even match with each other, by your own admission.


Mick West

Administrator
Staff member
NIST said that they were unable to model accurately because of the target element size at the connections, so I need look no further than that to establish the lack of accuracy in the simulation. However, when one looks further into the simulations, they do not even match with each other, by your own admission.
That divergence shows the sensitivity of the models, and the error in insisting that there be one crucial make-or break event that the entire collapse hinges upon.

The models really don't have enough level of detail for such precision. Only the first one comes close, and that's super limited in scope.

Basically I think they were limited by time and budgets.

Thread starter Related Articles Forum Replies Date
Oystein Final Report: Hulsey/AE911Truth's WTC7 Study 9/11 24
Joe Hill WTC7: Does This "Look Like" a Controlled Implosion? 9/11 45
Mick West TFTRH #25 - Jason Bermas: Producer of Loose Change, Shade, Invisible Empire Tales From the Rabbit Hole Podcast 1
Oystein Debunked: AE911T: CNBC Anchor Ron Insana claims Building 7 a Controlled Implosion 9/11 13
Mick West Sept 3, 2019 release of Hulsey's WTC7 draft report: Analysis 9/11 183
Pepijn van Erp WTC7: Determining the Accelerations involved - Methods and Accuracy 9/11 41
Mick West A wider perspective on the WTC7 collapse 9/11 2
Mick West Some New-ish WTC7 Photos (and video?) Corner Damage 9/11 6
Mick West Debunked: NIST's Lack of Explanation for WTC7 Freefall [They Have One - Column Buckling] 9/11 38
Jedo Debunked: WTC7 was the only building not on the WTC block that had a fire on 9/11 9/11 0
Mick West WTC7 South Side Photos 9/11 2
Mick West WTC7 Smoke Movement Before and After Penthouse Collapse 9/11 7
John85 How could the interior collapse in WTC7 Move West Without More Visible Exterior Damage 9/11 63
Mick West WTC7: Is AE911's (and NIST's) Focus on A2001 Justified if it Was Not "Key" in NIST's Global Model? 9/11 181
Mick West WTC7 Penthouse Falling Window Wave 9/11 65
Jeffrey Orling The Role of Diesel Fuel in WTC7 9/11 12
Mick West First Interstate Tower Fire - Comparison with WTC Towers and WTC7 9/11 5
Mick West Kai Kostack's WTC7 Collapse Simulation using BCB and Blender 9/11 10
Mick West Have You Actually READ the NIST Report on Building 7? 9/11 12
Mick West How Hot Could The WTC7 Fires Burned, and How Hot could the Steel be? 9/11 2
gerrycan Did NIST examine Steel from WTC7? 9/11 16
gerrycan Movement of Column 79 as Expressed in WTC7 UAF Presentation 9/11 13
Mick West Debunked: UAF Study Shows WTC7 Could Not Have Collapsed from Fire 9/11 43
Mick West Debunked: CIA Agent Confesses On Deathbed: ‘We Blew Up WTC7 On 9/11’ [HOAX] 9/11 12
Whitebeard Tehran Plasco Highrise Fire And Collapse - 9/11 WTC7, WTC1&2 Comparisons 9/11 84
Cube Radio What is this woman hearing as WTC7 collapses behind her 9/11 40
Mick West How Buckling Led to "Free Fall" acceleration for part of WTC7's Collapse. 9/11 127
benthamitemetric Other WTC7 Investigations: Aegis Insurance v. 7 World Trade Company Expert Reports 9/11 39
Oystein Debunked: "WTC7 Sound Evidence of Explosions" by Chandler/AE911T 9/11 31
Oystein AE911 Truth's WTC7 Evaluation Computer Modelling Project 9/11 1340
Cube Radio Sulfur at WTC7: how could it come from gypsum as the BBC claimed? 9/11 75
jaydeehess Why little to no analysis of steel from WTC7? 9/11 45
gerrycan AE911 Letter to Inspector General Claims NIST WTC7 Report is Provably False 9/11 161
Ron J WTC7 Firefighting 9/11 48
Cairenn The plausibility of demolishing WTC7 with explosives on 9/11 9/11 429
Oxymoron How much of the Smoke Around WTC7 actually from WTC7? 9/11 20
Mick West What would a new WTC7 Collapse Investigation look like? 9/11 127
mynym WTC7 and other Buildings, the Significance of Sheer Studs 9/11 1
Representative Press WTC7 Fire Temperatures and effects on the East Floor System 9/11 58
Representative Press Significance of WTC7 9/11 36
ColtCabana FDNY Chief Daniel Nigro's statement on WTC7 9/11 135
gerrycan Critical Errors and Omissions in WTC7 Report Uncovered 9/11 841
Alchemist How could WTC7 Possible have fallen like it did? 9/11 319
Josh Heuer The Uniqueness of the WTC7 Collapse 9/11 528
Oxymoron WTC4 fire photo labeled as WTC7 on 911 memorial timeline site. 9/11 60
Mick West Debunked: WTC7 vs. Chechnya's Tallest Building Fire (Grozny-City Complex) 9/11 24
Mick West Does NIST not testing for explosives and not testing WTC7 steel invalidate everything 9/11 246
Mick West Debunked: AE911Truth's WTC7 Explosive Demolition Hypothesis 9/11 175
Tazmanian Debunked: 9/11 Melted cars near WTC7 9/11 79
Oxymoron WTC7: Did the fires burn long and hot enough? 9/11 340
Related Articles


















































Related Articles

Top
