Sitrec - Metabunk's Situation Recreation Tool - Development Discussion

Mendel

Senior Member.
Wow that flip is crazy. You can see the vector pointing consistently in the same direction basically. In your sim 340° of heading until the flip. So it's a straight line and then inverts direction.
It immediately motivates the description of the aircraft changing heading; and since this is 100% simulated, we know that the aircraft causing this vector to flip keeps flying straight, if I understand @Mick West correctly. It shows that the description need not be reliable, that it could be an honest mistake.

Last edited:

gtoffo

Active Member
F18: 12m wing span, 37m² wing area, 45k ft.
Citation: 18m wing span, 49m² wing area, 51k ft.
GlobalHawk: 35m wing span, 50m² wing area, 60k ft.

I'm not confident that this would affect the IR profile much, especially from a horizontal
aspect; if you see the aircraft from below or above, they're obviously quite distinct. The point is, if all you have is a few pixels of glare, they're not that different, since the engines are close to the centerline. And it answers this:
When I say you need big wings what I mean are many things. For example aspect ratio is crucial.



The F-18 has an AR of 4.
Cessna Citation X Aspect ratio: 7.8
B52: 8.56

That's twice the aspect ratio with a much wider wing spans. Makes a HUGE difference in performance.

For reference:
U2 has an AR of 23 with a ~70k ft service ceiling
SR-71 has an AR of 1.939 ~85k ft (Like I said.... it was basically a ram rocket... no wings needed!)


Mendel

Senior Member.
When I say you need big wings what I mean are many things. For example aspect ratio is crucial.

If all you have is a few pixels, the glider wings are going to be harder to see (blending into the background more) than the Cherokee's wings (provided the wing area is comparable).


gtoffo

Active Member
It immediately motivates the description of the aircraft changing heading; and since this is 100% simulated, we know that the aircraft causing this vector to flip keeps flying straight, if I understand @Mick West correctly. It shows that the description need not be reliable, that it could be an honest mistake.
Wait I'm lost... the flip is just simulated in the video and not the result from a path in sitrec?

If the vector flips like that it means you changed heading 180° and are now heading in the opposite direction. You can't be flying in a straight line or your vector would always be pointing to the same heading.


Mendel

Senior Member.
Wait I'm lost... the flip is just simulated in the video and not the result from a path in sitrec?
"Simulated" means "derived from the simulation data", aka the "path in sitrec". It's not a contradiction.

What I meant by "100% simulated" is that there is no ambiguity as to how this display came to be; there's no actual sensor data involved because sitrec is 100% synthetic. But the SA display is supposed to work as if the data was real. So when sitrec simulates a straight flight path for the target and the SA page flips the vector, the same thing should've been displayed in the cockpit if that was the real situation.

Which begs the question, would observer pilots realize the target is flying straight when they see its vector flip?


Mick West

Administrator
Staff member
Wow that flip is crazy. You can see the vector pointing consistently in the same direction basically. In your sim 340° of heading until the flip. So it's a straight line and then inverts direction.
It's programmed to be a straight line in that example as that's the only way you can fit an overhead view with the description of stopping, and then reversing direction.

However, I think this raises a lot of questions as to how the narrative emerged from the SA page. Next step would be to add the "fleet"


Mick West

Administrator
Staff member
Wait I'm lost... the flip is just simulated in the video and not the result from a path in sitrec?

If the vector flips like that it means you changed heading 180° and are now heading in the opposite direction. You can't be flying in a straight line or your vector would always be pointing to the same heading.

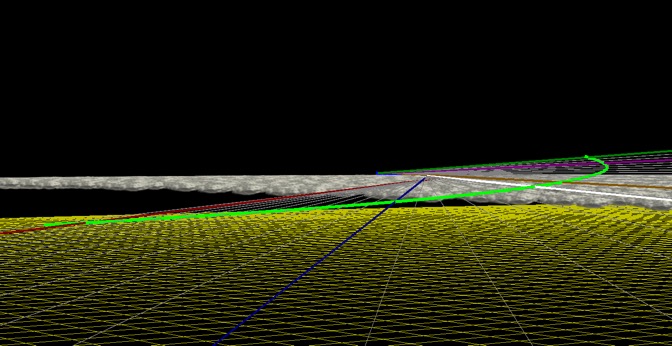

The is the result of a path - one that viewed from the side looks like this:
It's climbing constantly, and the horizontal velocity slows to zero and reverses. The aspect vector is only showing horizontal velocity.


Mick West

Administrator
Staff member
Toggling the "MAP" button on the SA will now add the full tracks of the jet and the target. This is the default (10 NM, Constant Speed)

And this is a straight line solution (heading of 0)

The amount of actual movement is very small, and it's hard to see how the narrative of flying along, stopping as a fleet of five other targets swung around it, and then heading back, would have been discernable.

I've asked Graves to draw a diagram of what the movement would look like on the SA, but he has been reluctant to do so.


gtoffo

Active Member
If all you have is a few pixels, the glider wings are going to be harder to see (blending into the background more) than the Cherokee's wings (provided the wing area is comparable).
Agreed. But usually long wings = long fuselage too (for balance).

The reason I'm saying all this because we should take into account only realistic flight paths. We can disqualify a lot of solutions to remain within the flight path of known aircraft types.
Also: we know the indicative size of the object. If it's a b52 we would visually see a difference. Huge thick wings with engines under them would show up on IR. I would exclude that. Business jet or drone is the most viable option here if this was a misidentification but for each combination/scenario we need to take into account speed altitude and envelope.
The is the result of a path - one that viewed from the side looks like this:
It's climbing constantly, and the horizontal velocity slows to zero and reverses. The aspect vector is only showing horizontal velocity.
Ok thanks!
That's an Immelman basically (https://en.wikipedia.org/wiki/Immelmann_turn)?

We can exclude a lot of aircraft types if that is the actual manoeuvre here.

At what altitude? Might be tuff even for an F-18 at max power. Can you share the settings in sitrec to get this path?
(EDIT: Ok got it and I understand what you mean maybe.... you are using the "straight line" LOS traversal method to force the path to be a straight line. For some reason I can't figure out the altitude by myself though. The graph for altitude seems broken and I don't see it go up when the Immelman happens).

Last edited:

Mick West

Administrator
Staff member
Here I'm trying to replicate what was described. It needs the fleet to go up to 4200 knots


Edward Current

Active Member
If by "basically" you mean "following the same math function from beginning to end," which according to measurements taken from my model is a 3rd-order function (backward–upward acceleration that increases at a constant rate).

As I've said elsewhere, I'd like to know how any kind of aircraft, whether conventional or unconventional, achieves such a trajectory in a real world with gravity, wind, and drag.


gtoffo

Active Member
Graves does mention "airspeed bands." What do those look like? Could they indicate a "stop"?
Do you have a quote in context? I don't think he is referring to something visual on the SA. I think you need to place the cursor over a target to see speed and angels. He probably meant "bands"="ranges". "We noticed the objects were usuamoving at airspeed ranges between mach x and mach y"


Mick West

Administrator
Staff member
Do you have a quote in context? I don't think he is referring to something visual on the SA. I think you need to place the cursor over a target to see speed and angels. He probably meant "bands"="ranges". "We noticed the objects were usuamoving at airspeed ranges between mach x and mach y"
It's from his AIAA talk.
slide formation.jpg


Mick West

Administrator
Staff member

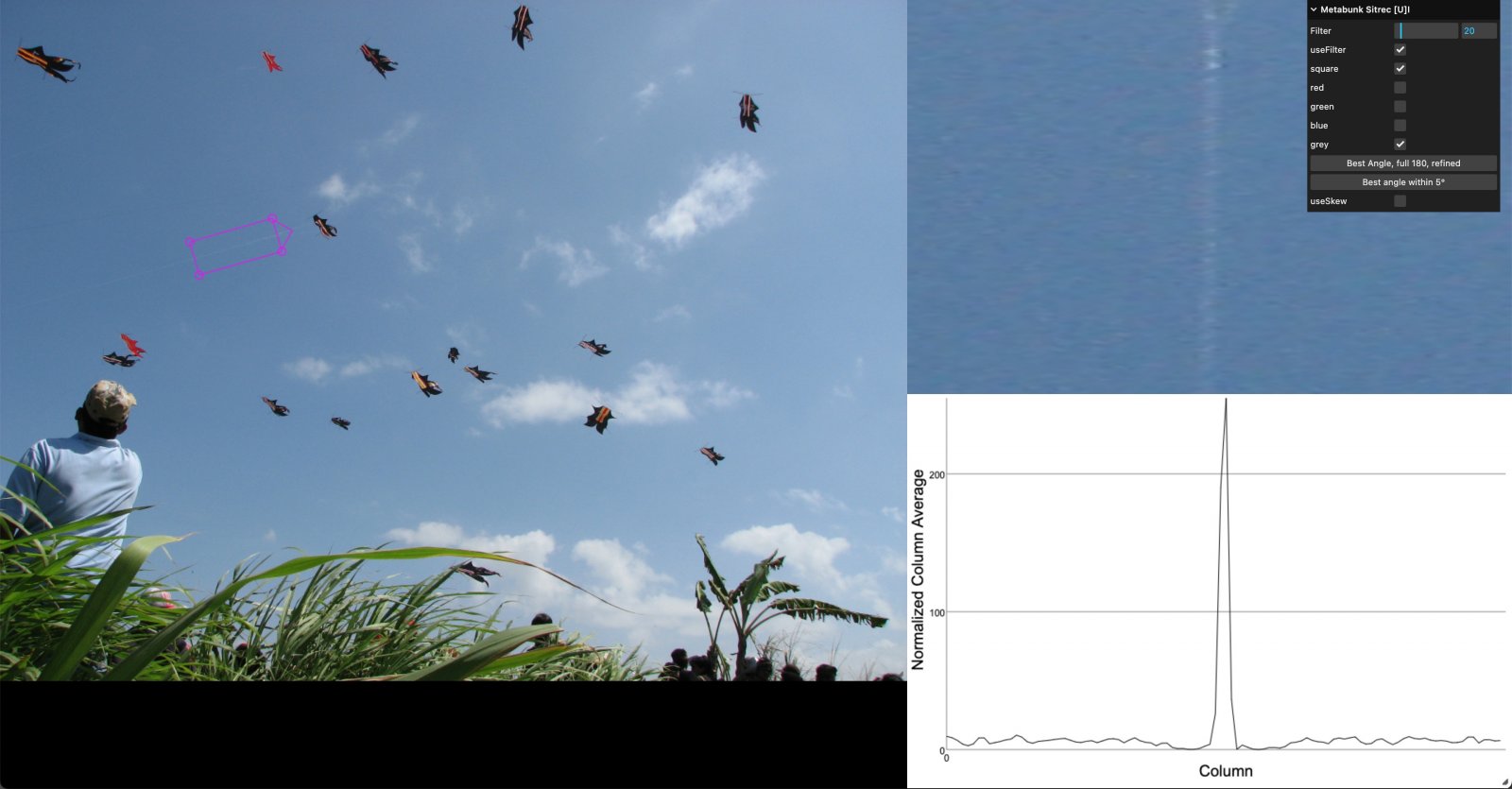

Doing a bit of image analysis coding, and thought I'd start with this line detection, loosely based on a similar tool in the IPACO suite
https://metabunk.org/sitrec/?sit=linetest
Drag an image onto the left side (or use the default sample), then drag a box around a region, then click "Best Angle, Full 180" to try to align it with a line

The idea is to detect barely visible lines holding things up, or strings under balloons.


jarlrmai

Senior Member
Here I'm trying to replicate what was described. It needs the fleet to go up to 4200 knots
This is an admirable attempt to reconcile the description given by Graves with reality.
Doing a bit of image analysis coding, and thought I'd start with this line detection, loosely based on a similar tool in the IPACO suite
https://metabunk.org/sitrec/?sit=linetest
Drag an image onto the left side (or use the default sample), then drag a box around a region, then click "Best Angle, Full 180" to try to align it with a line

The idea is to detect barely visible lines holding things up, or strings under balloons.
That's pretty cool!

Guess you are getting bored waiting for Graves to get around to providing the clarification that proves the greatest UFO sighting ever was legitimate, guess he's got other things to do eh.


Mick West

Administrator
Staff member
Added the bare bones of Aguadilla.
https://www.metabunk.org/sitrec/?sit=agua2022-06-06_10-02-08.jpg


This introduces the ability to pull in maps (using Mapbox, or OpenStreetMap) with terrain elevation.

Lots to do still. In particular, I need a 3D track editor. Also probably need to do the video in a different way here, as it's 7x longer than the ATFLIR videos, so loading all the frames individually might not be the best approach.


flarkey

Senior Member
I like it. I have some of the data (such as the SCU object flight path) modelled in GE if its any help...?


Attachments

  • Screen Shot 2022-06-06 at 19.44.25.png
    Screen Shot 2022-06-06 at 19.44.25.png
    1.9 MB · Views: 12
  • Aguadilla Object Analysis.kmz
    8.9 KB · Views: 13

Mick West

Administrator
Staff member
Took a detour to add a couple of new ones.

The view of San Jacinto from Pt. Dume, with the ability to flatten the earth (by increasing the radius)
https://www.metabunk.org/sitrec/?sit=dume
I just did this one because it occurred to me it would be pretty easy.

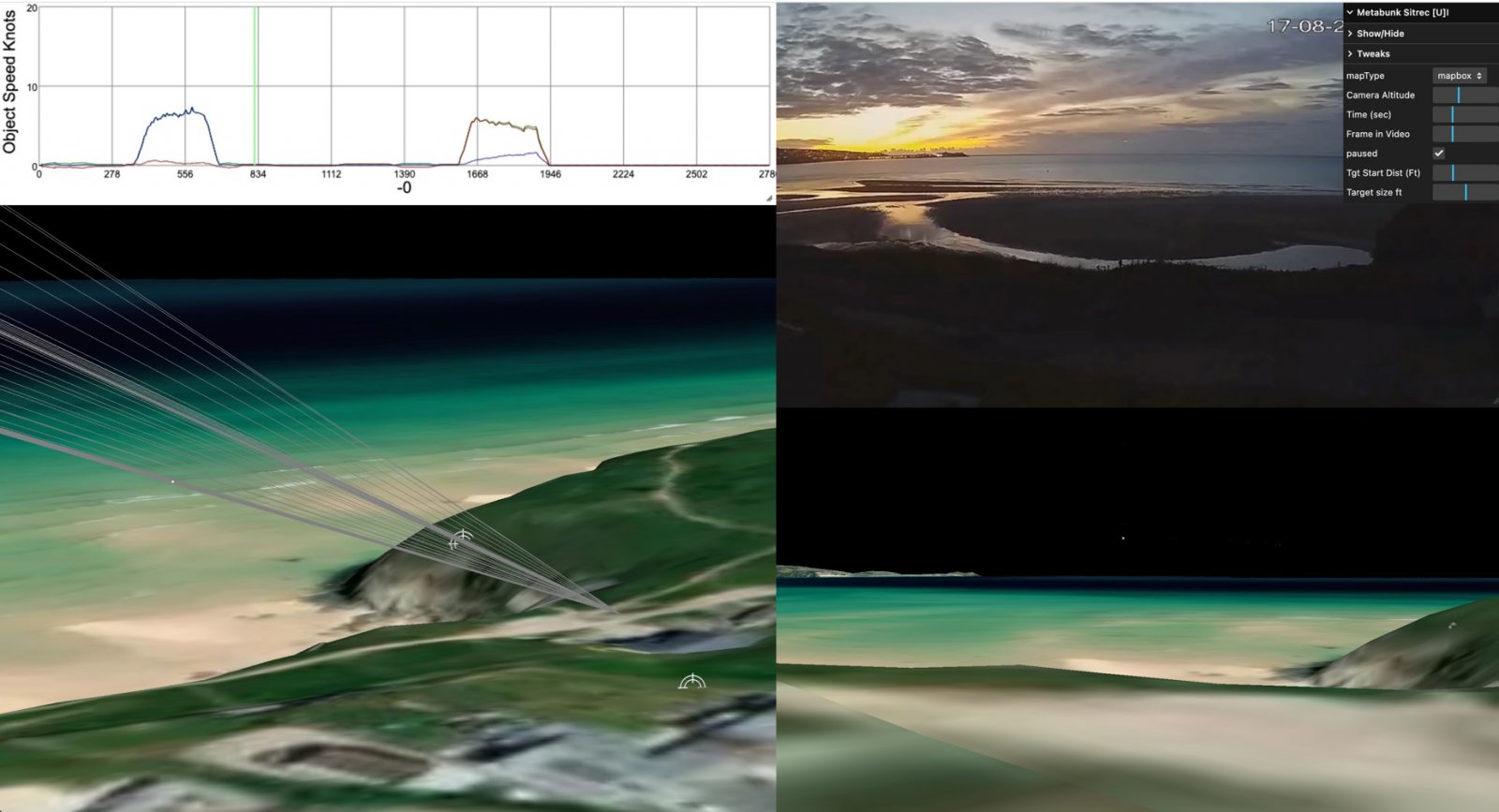

And the St.Ives Hayle beach drone (no drone yet, just setting up the view). Double click to make one of the view full-window
https://www.metabunk.org/sitrec/?sit=hayle


I'm moving towards things being data driven. The entire configuration for Dume is now just:
JavaScript:
export const SitDume = {
    name: "Dume",
    azSlider:false,
    jetStuff:false,
    animated:false,

    lookFOV: 10,

    terrain: {lat:  34.001856, lon:-118.806196, zoom:9, nTiles:8},

    fromLat: 34.001241, // point dume
    fromLon:-118.806459,

    fromAlt: 300,
    fromAltMin: 300,
    fromAltMax: 1000,

    toLat: 33.814029,
    toLon: -116.679419,
    toAlt: 3302.2,


}
