The analysis is on page 28 (PDF page 30) of their recent report.Can anyone who has been following it break down the NASA analysis and subsequent UFO twitter noise?
All I can get is NASA did an analysis but didn't take into account turn rate or wind or something and got the low end speed based on the simple trigonometry model as detailed at the start of this thread.
But there's some wind data that other people have? Or classified data thats NASA has and didn't use? Or its the same data?
So they got it wrong? But its still wind speed driven its just NASA didn't do an in depth investigation? Or something else?

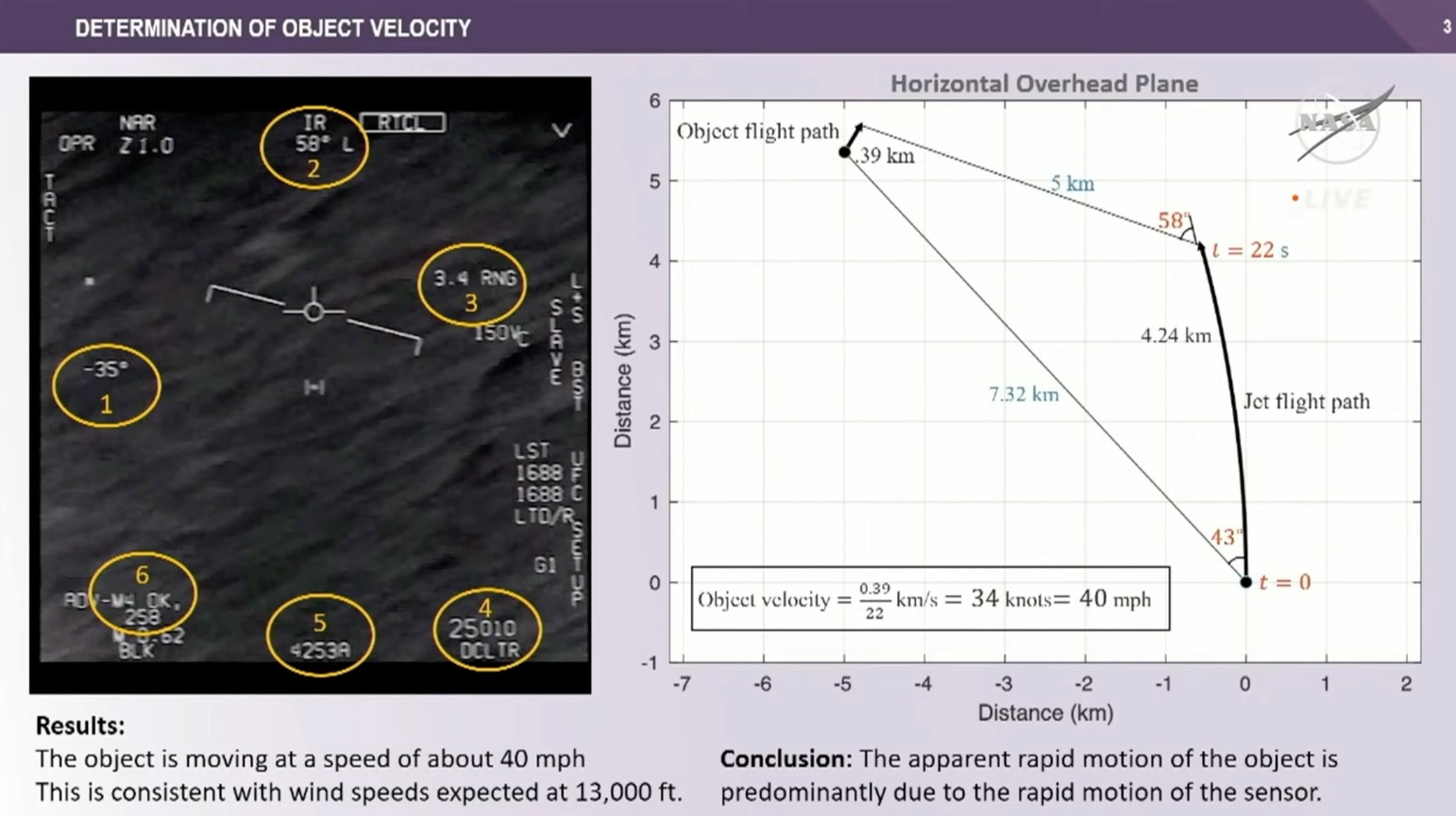

A well-known UAP event is the “GoFast” video, recorded by navy aviators from the USS Theodore Roosevelt. A still frame from this video is shown in the Figure below, where the infrared camera has locked onto a small object in the center. The video gives an impression of an object skimming above the ocean at a great velocity. But analysis of the numerical information on the display reveals a less extraordinary interpretation.
The circled numbers in the image provide the information needed to estimate the object’s altitude and velocity. This information includes (1) elevation angle of the camera (negative = downward), (2) azimuth angle of the camera, (3) target range in nautical miles, (4) the aircraft’s altitude in feet, (5) time reference in seconds, and (6) indicated air speed in knots. Using items 1, 3, and 4, plus a bit of trigonometry, we calculate that the object is at an altitude of 13,000 feet, and 4.2 miles from the ocean behind it (see middle panel). Given that the aircraft’s groundspeed is about 435 mph, we may conclude that the impression of rapid motion is at least partly due to the high velocity of the sensor, coupled with the parallax effect.
We can use other information from the display to place some limits on the true velocity of the object. This analysis is summarized in the right-hand panel, which depicts an overhead view of the encounter during a 22-second interval. The jet was banking left at about 15° during this time, which corresponds to an approximate turning radius of 16 kilometers. We know the range and bearing of the object at the start (t=0s) and end (t=22s) times. Using the calculated true air speed (TAS) and a bit more trigonometry, we find the object moved about 390 meters during this 22-second interval, which corresponds to an average speed of 40 mph. This is a typical wind speed at 13,000 feet.
Our calculation has neglected wind effects on the aircraft, and thus there is uncertainty in this result. But the analysis reveals that the object need not be moving at an extraordinary velocity. Note also that the object appears bright against a dark ocean for these display settings. This indicates that the object is colder than the ocean. There is thus no evidence of heat produced by a propulsion system. This further supports the conjecture that the object is most likely drifting with the wind. The availability of additional data would enable a more firm conclusion about the nature of this object.
Original GoFast video, released by the Department of Defense:
