MD-11 Exhaust Pipes

Mick West

Administrator
Staff member

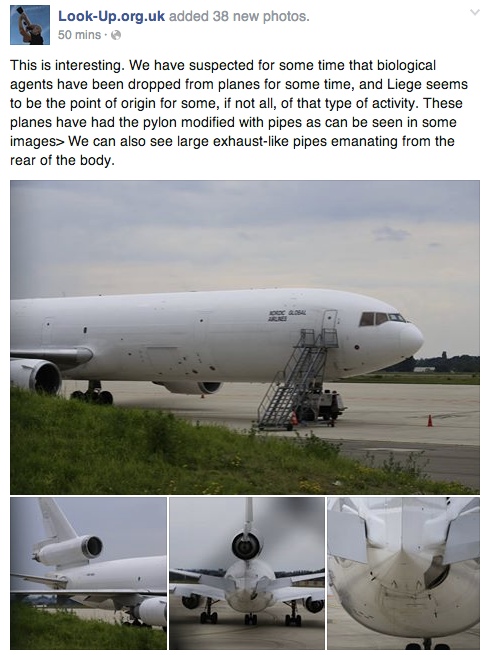

Look-up is suggesting the APU exhaust and other protrusions at the end of an MD-11 are suspicious.
https://www.facebook.com/permalink.php?story_fbid=1517931061770964&id=1410029482561123

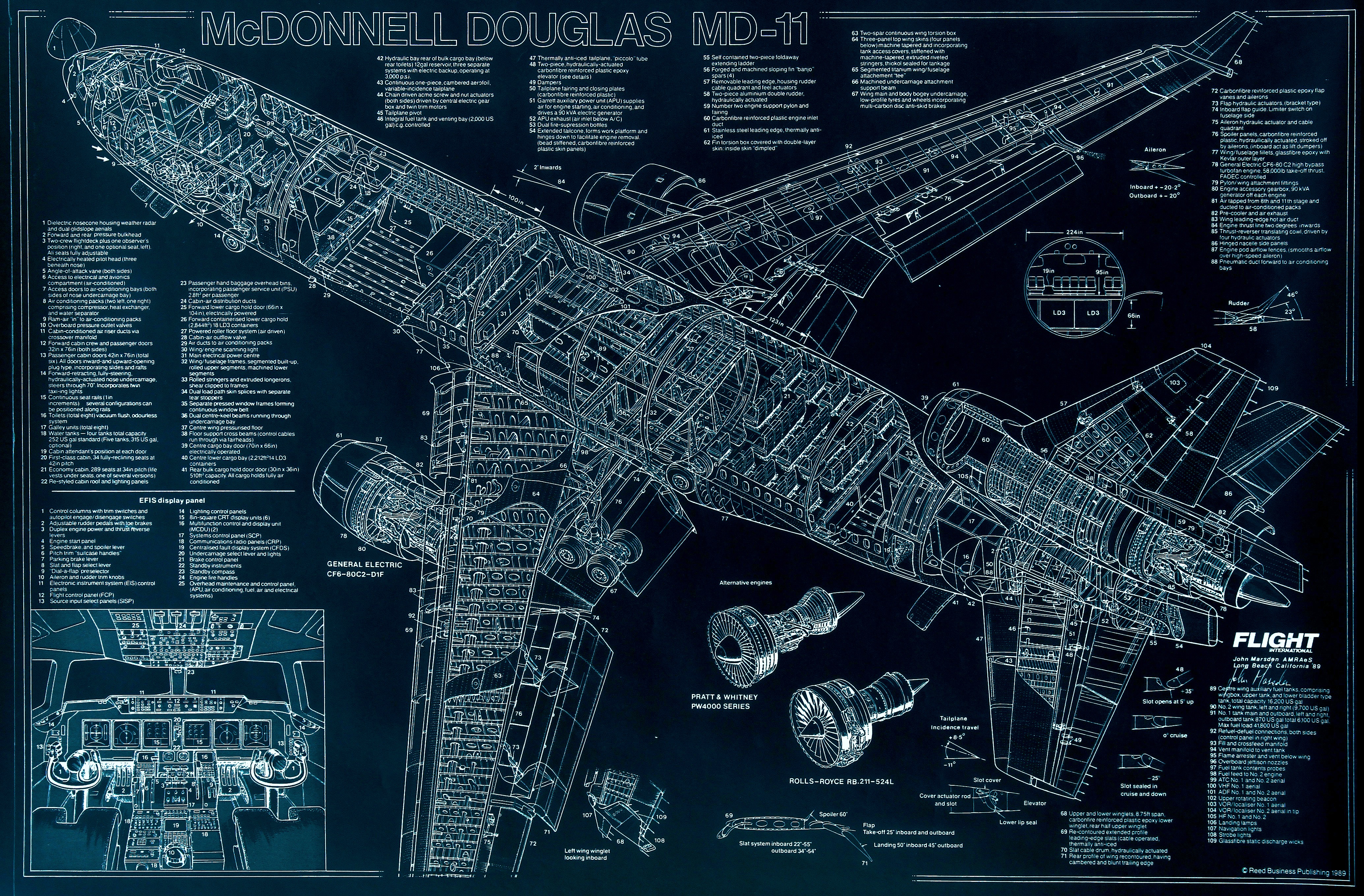

However this schematic from 1989 clearly identifies it as the APU exhaust. Nothing suspicious at all. The APU is an electric generator, powered by jet fuel. Essentially a very small extra engine that just produces electricity (and exhaust gases).



The two white protrusions are hinge covers (see #54). Here's what the tailcone looks like folded down:

http://www.airliners.net/photo/FedEx---Federal/McDonnell-Douglas-MD-11F/2030107/L/


This is a DC-10, the same basic plane, showing the tailcone rotated down:
http://www.airlinercafe.com/page.php?id=392

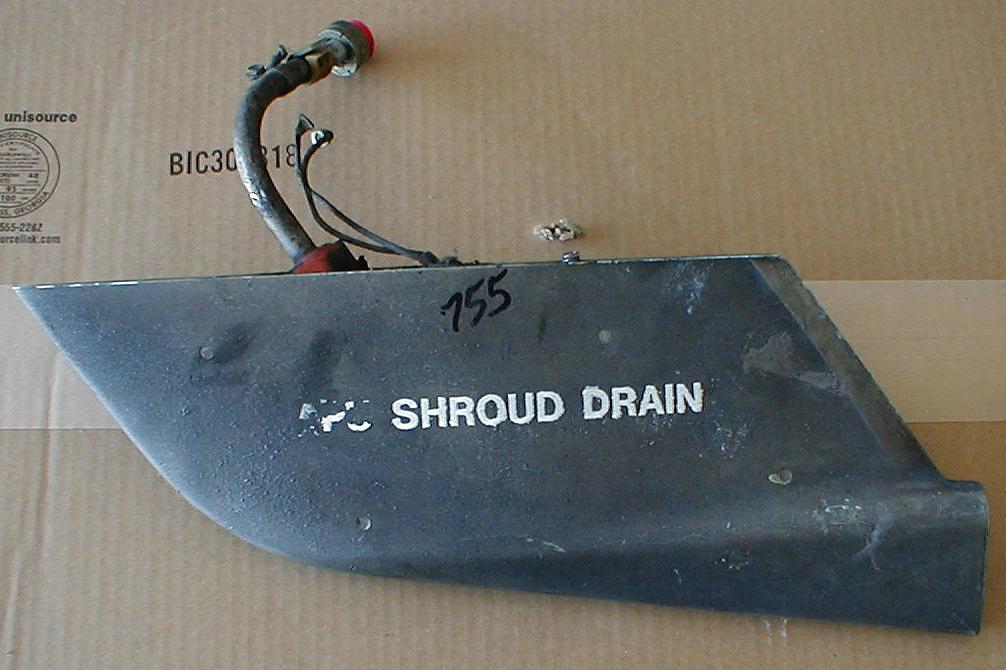

The black protrusions are drain masts for the APU compartment and tailcone sections. They look something like this:

Last edited:

Mick West

Administrator
Staff member
Where are they getting "biological agents" from?

http://www.look-up.org.uk/complex-equation-2/
There is scant evidence on exactly what they are doing, but we do know from basic laboratory tests that these things are polymer nano-fibers. There is also suggestion from other sources that they contain nano-technology of some description and even biological agents, though we have not conclusive proof of this here in the UK yet.
Content from External Source
I think he might be alluding to "Morgellons".


cloudspotter

Senior Member.
Just for information

An auxiliary power unit (APU) is a device on a vehicle that provides energy for functions other than propulsion. They are commonly found on large aircraft, naval ships, as well as some large land vehicles. Aircraft APUs generally produce 115V alternating current (AC) at 400 Hz (rather than 50/60 Hz in mains supply), to run the electrical systems of the aircraft; others can produce 28V direct current (DC).[1][2] APUs can provide power through single or three-phase systems.
Content from External Source
http://en.wikipedia.org/wiki/Auxiliary_power_unit


Trailblazer

Moderator
Staff member
As for the all-white livery and lack of windows, these are cargo planes. The aircraft pictured are operated by Nordic Global Airlines and a new company, Western Global Airlines, which shares a CEO (Jim Neff) with Nordic and which only began operations this month.


Mick West

Administrator
Staff member
Just for information

An auxiliary power unit (APU) is a device on a vehicle that provides energy for functions other than propulsion. They are commonly found on large aircraft, naval ships, as well as some large land vehicles. Aircraft APUs generally produce 115V alternating current (AC) at 400 Hz (rather than 50/60 Hz in mains supply), to run the electrical systems of the aircraft; others can produce 28V direct current (DC).[1][2] APUs can provide power through single or three-phase systems.
Content from External Source
http://en.wikipedia.org/wiki/Auxiliary_power_unit

Thanks, I forgot to add an explanation.


KC-10FE

Senior Member.

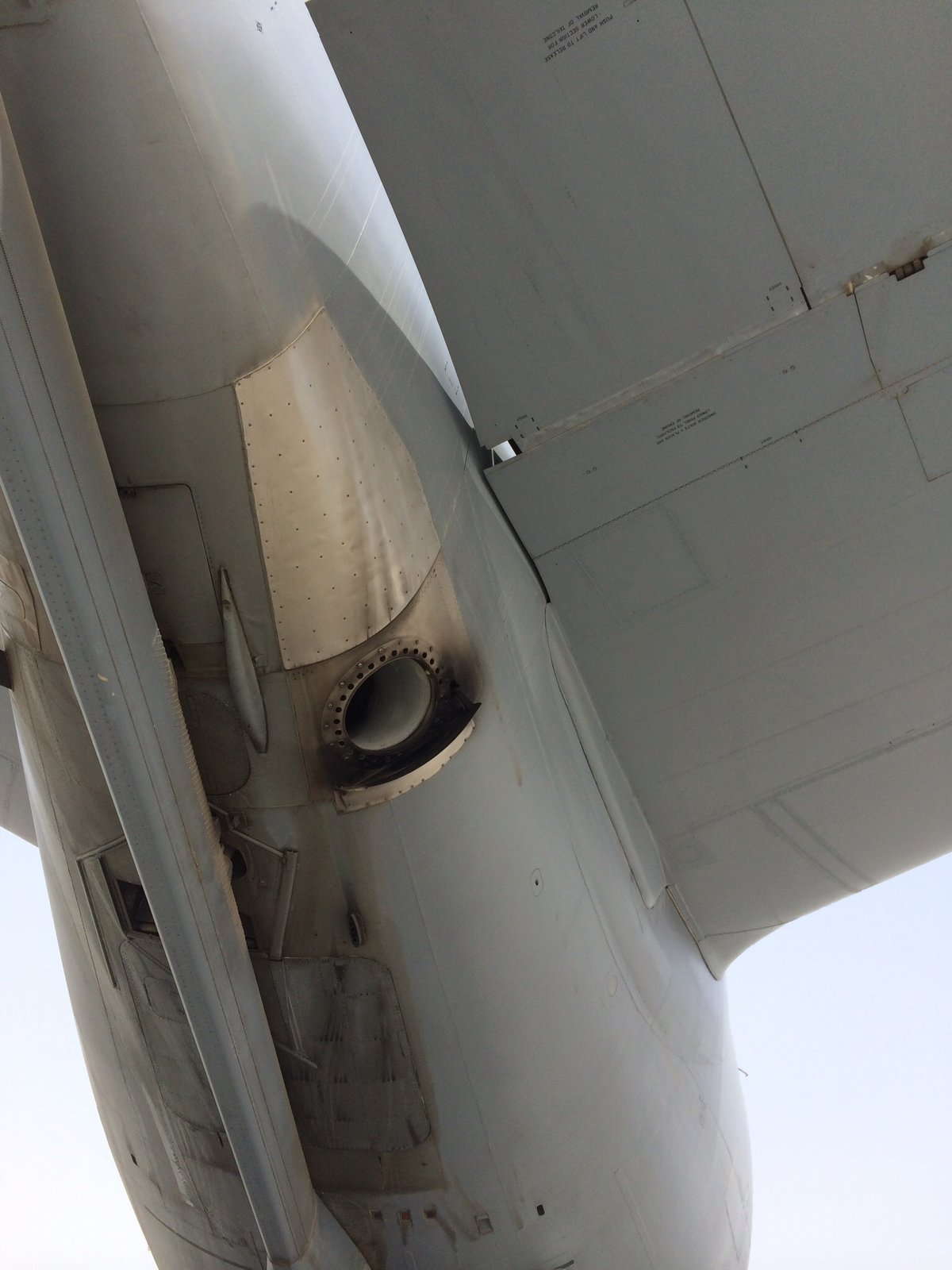

My KC-10 with the APU exhaust door open and the APU running. The inlet door is visible to the left and slightly downwards, partially obscured by the boom.



Juha

Member
I've seen NGA many times. It's absolutely empty, when there is no pallets.
I know that you know that. :)

Want pictures?


Trailblazer

Moderator
Staff member
Seeing as Look Up are actively naming Nordic Global and Western Global as "chemtrail tankers", I wonder whether the owner of those airlines might care to make a cease-and-desist order. These baseless claims are pretty clearly libellous.

That could spur Ian on to the legal action he wants to take, although in reality I doubt an airline would bother to take action against such a small-scale Facebook operation.


Juha

Member

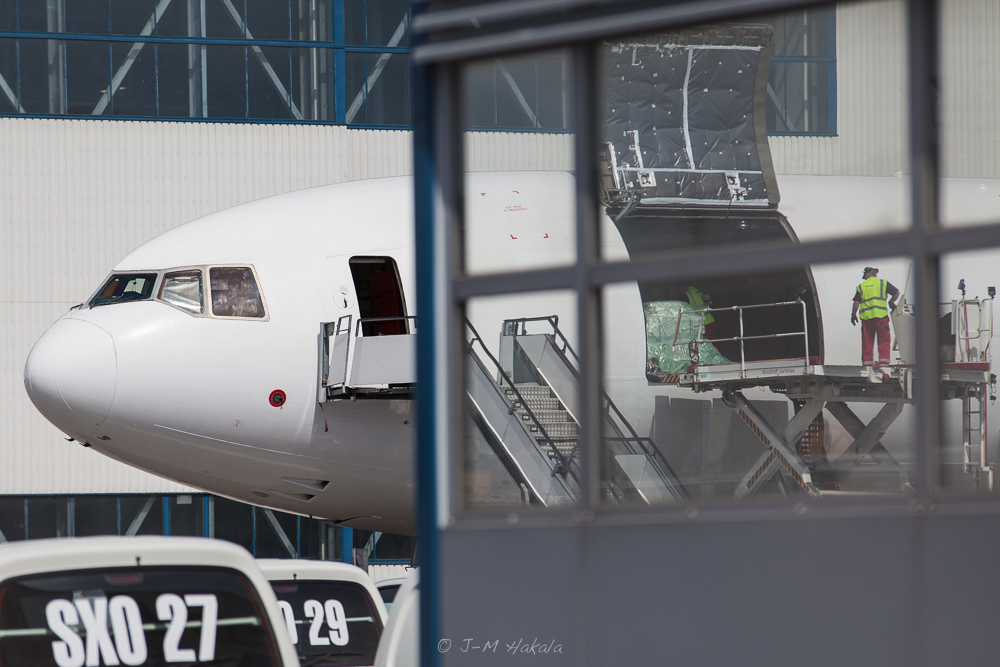

IMG_2033.jpg IMG_8789.jpg IMG_8801.jpg NGA didn't get Nordic Global signs for I while. After getting them, it was stored for a long time. So, where's plane is white, photos are just older. :)
