Iron Microspheres and Lead in Slag Wool? (Mineral Wool)

Mick West

Administrator
Staff member


After reading how most of the insulation in the world trade center was "Slag Wool" (a type of mineral wool insulation made from iron refining) I wondered if it might have some iron microspheres in it. So a little searching led me to the above image, from:
https://inspectapedia.com/insulation/Rock-wool-microscope-identification.php

They are very interesting because they look like iron microspheres. But without checking with a magnet, it's impossible to tell. They might possibly be melted fibers with some carbon making them dark.

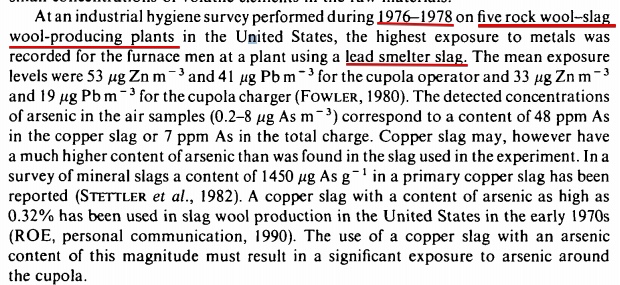

Another possibility is lead. Some slag wool was made from lead slag - although it's not clear when that practice stopped. Seems to have still being going on the 1970s though
http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.836.5918&rep=rep1&type=pdf
Metabunk 2018-10-16 12-16-32.jpg

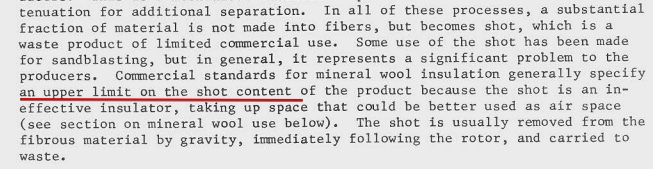

The "Fowler 1980" reference leads to:
https://www.cdc.gov/niosh/docs/80-135/NIOSH_Pub_80-135.pdf?id=10.26616/NIOSHPUB80135

Which describes how the process creates spheres ("shot") which is separated from the wool
Metabunk 2018-10-16 12-28-50.jpg

The shot here is slag though, not iron.

Last edited:
More on lead in slag wool:
https://www.osha.gov/dts/osta/otm/otm_v/otm_v_3.html

  1. Mineral wool insulation manufactured before about 1970 has been found to have lead particles. According to industry sources, lead slag is no longer used in the manufacture of mineral wool, although lead can be present as a trace impurity (CONSAD 1993).
Content from External Source
Construction of the World Trade Center towers was in 1968 to 1970
