Identified: Bent Contrail near Seattle [Private Jet at 41,000 ft]

Mick West

Administrator
Staff member
From twitter we have some excellent photos of a contrail that, via perspective foreshortening, appears to be flying near vertical, and then making a rather sharp turn.

A bit of investigation (in the thread below) narrows this down to a private jet flying at 41,000 feet. The contrail looks somewhat vertical because it is flying towards the camera, but it's actually horizontal.


It looks like a regular contrail coming over the horizon towards the viewer, and then making a turn. While it looks almost like a 90° turn, it's more like 10° due to perspective foreshortening.

Time is given as "around 8:20", PST, so UTC-7. so 03:20 UTC tomorrow July 1st. It appears to be approaching from the West.

Last edited:

Mick West

Administrator
Staff member

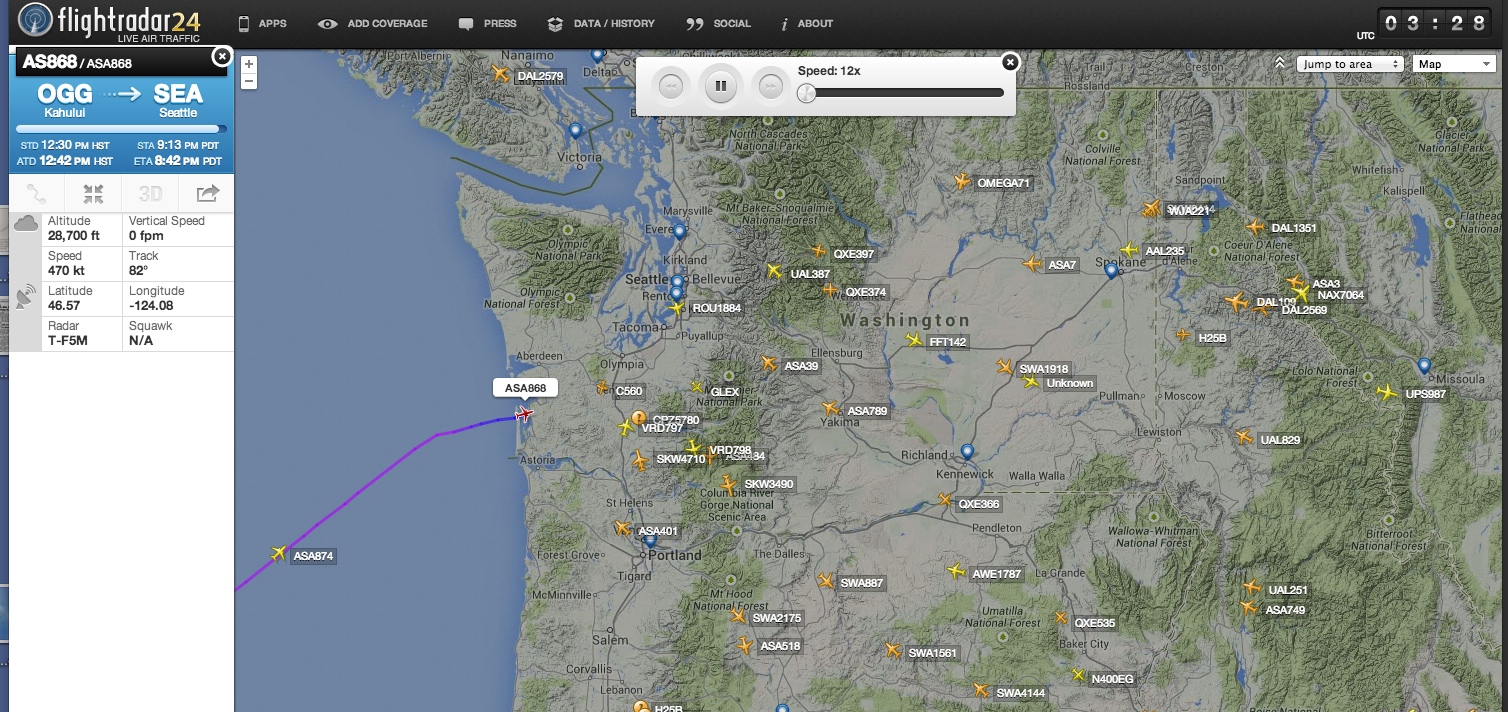

Maybe something like ASA868? Seems too low and far away though.
[UPDATE: no, not this]

Last edited:

WeedWhacker

Senior Member
"LOOKS" like a very 'sharp turn', but it is always about perspective.

If I have a rod that is bent, and show it to a viewer who is FIXED in place, the angle of that bent rod will vary, depending on POV.


Mick West

Administrator
Staff member

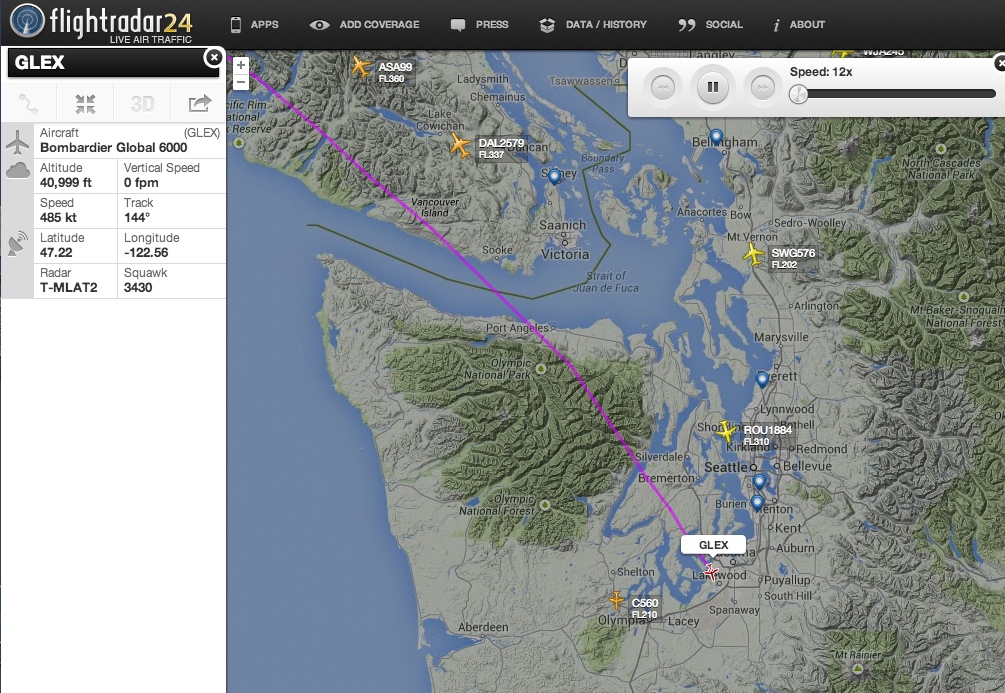

Planes coming from the NW - there's this Bombardier Global 600, at 41,000 feet.


Filtering it for above 38,000 feet, this is the only flight that shows up. So if there are contrail condition above that level, this explains why it's the only contrail on a clear blue sky.


Mick West

Administrator
Staff member

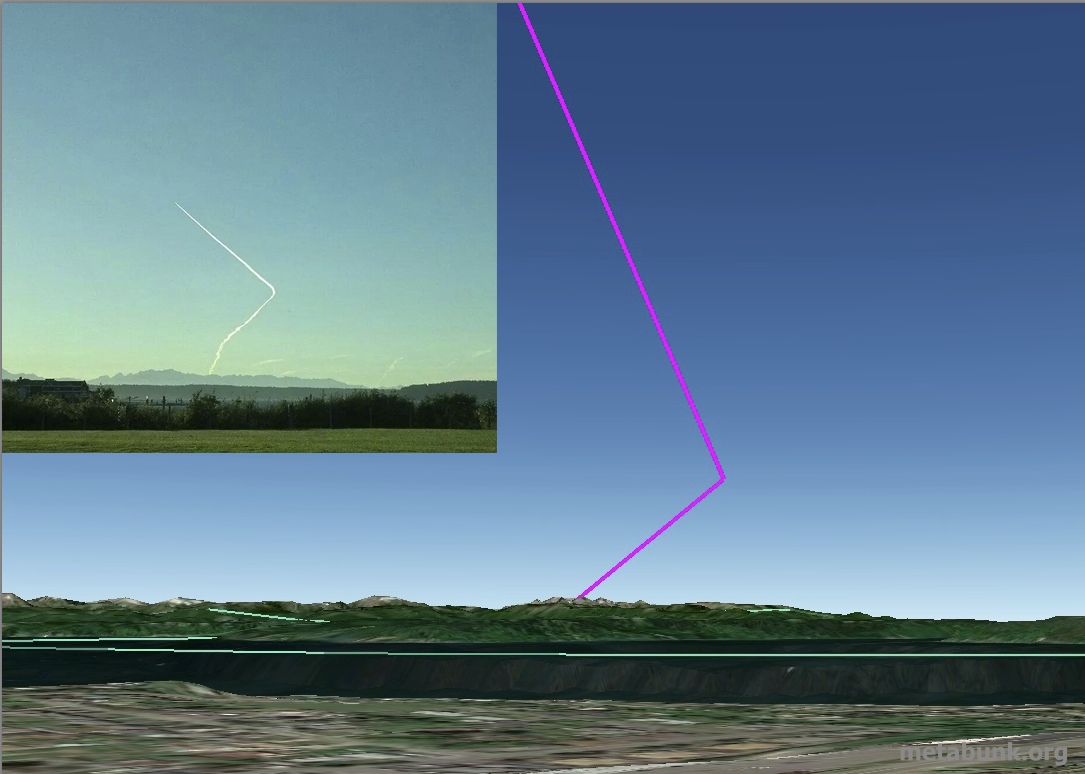

Can't get the GPS track, but just eyeballing a line at FL410 matches very well, even with this very slight angle:

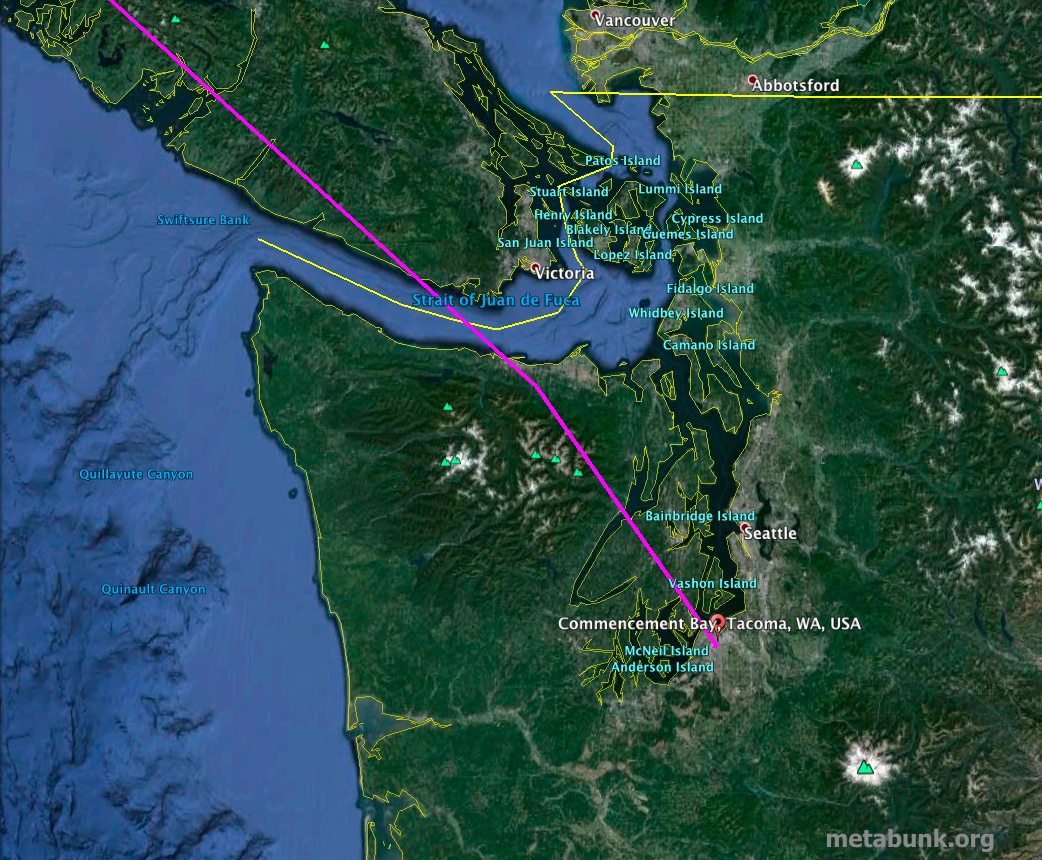

This is the view of this trail from the north side of Commencement Bay. Since the trail travel quite a lot with the wind, the shape of the trail will not match the shape of the track (track is shown here), so the actual view location might differ a bit. Also the two line segments shown he do not conform to the curvature of the earth, meaning they are a bit off in the middle.



So basically a private jet flying at 41,000 feet, above all the normal traffic.

Last edited:

captfitch

Active Member
Coincidently, the Global is he plane I fly. And FL410 is sort of low for cruise. Usually we cruise at 45 or 47.


Mick West

Administrator
Staff member
Coincidently, the Global is he plane I fly. And FL410 is sort of low for cruise. Usually we cruise at 45 or 47.
I suspect that was some kind of default. Perhaps just the FAA flight plan altitude?

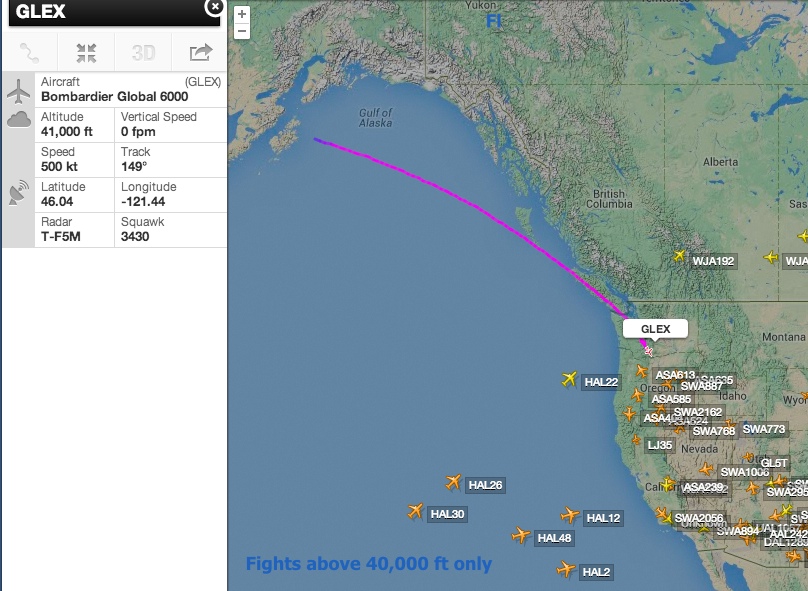

Here's the incoming track. Looks like it went on the the Phoenix area.


captfitch

Active Member
Oh I'm sure it's correct, it's just they chose a lower altitude. There are all sorts of reasons including fear of upper flight levels. Maybe a ride issue or they wanted to go fast and burn lots of fuel for some weird reason.


Mick West

Administrator
Staff member

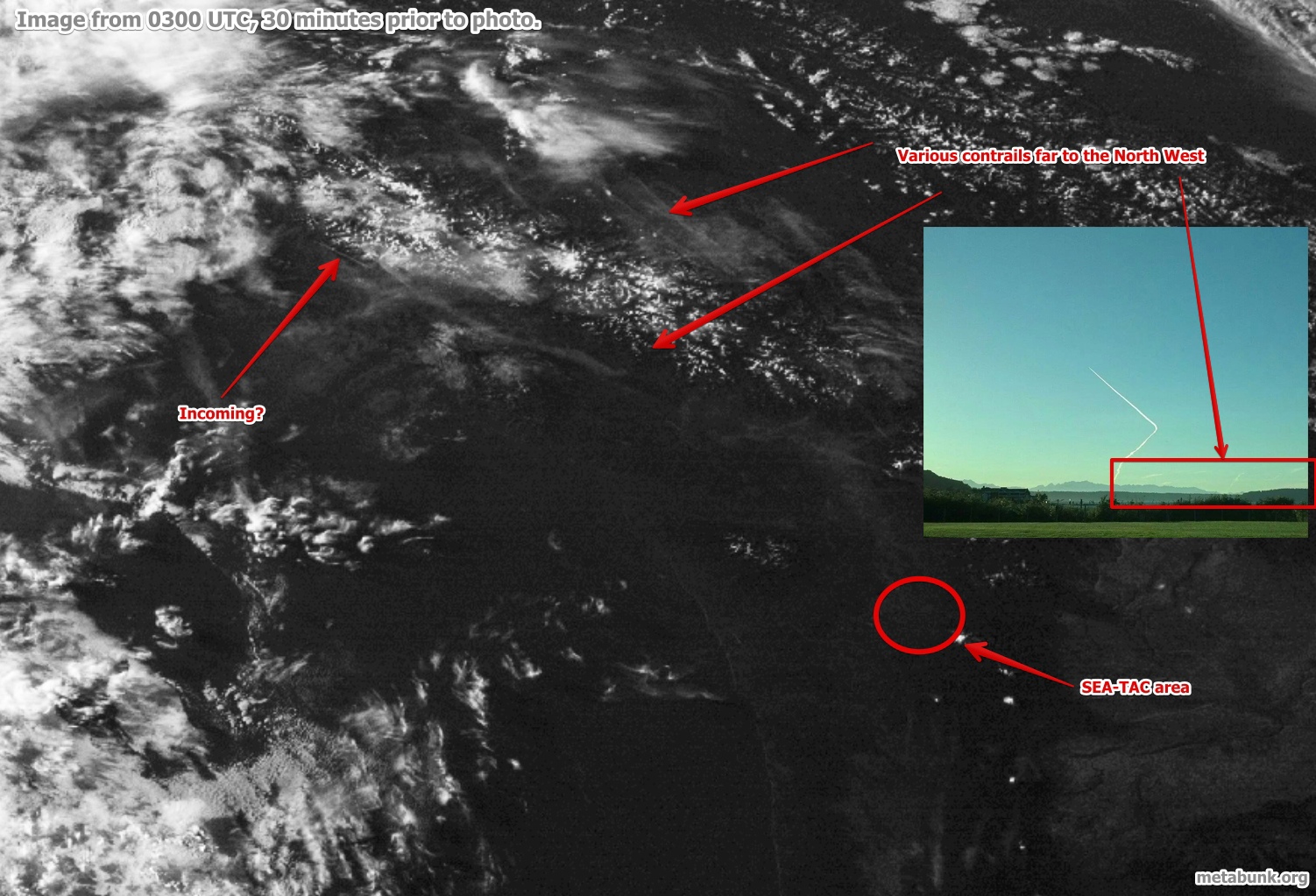

I downloaded the GEOS-West satellite image for 0300 (attached, 30MB)

It's too early for the actual bent contrail, however there's a possible early part of it. There are also some scattered contrails visible in John Olson's photo.



Attachments

captfitch

Active Member
What's the fear about?
Well, it may not really be true but there's a perception that time of useful consciousness drops off very rapidly above 410. Some people just aren't comfortable dealing with the possibility of rapid decompression above that. I'll admit I get a little nervous at 470 but mainly because the aircraft is rather boxed in performance wise.
