Debunked Claim: RH% too low for contrails

Balance

Senior Member

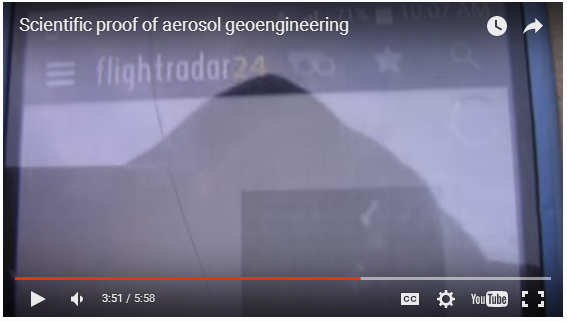

Video shows;
Contrails in the sky above.

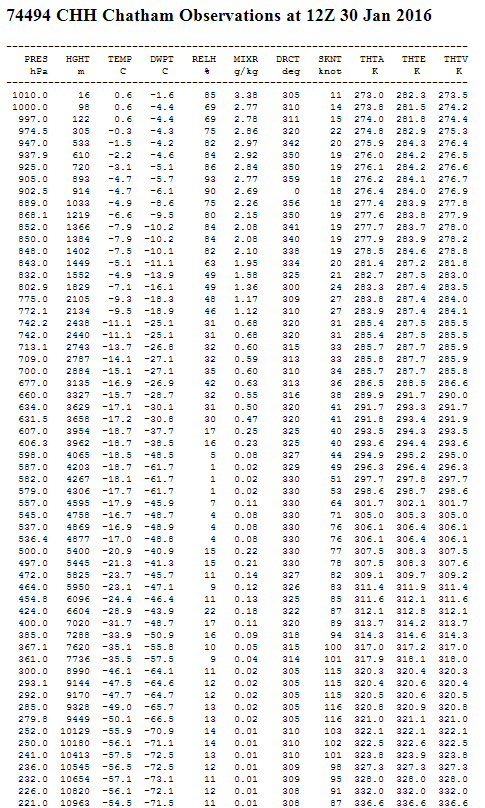

Weather data low 14RH% @10,000M
The uploader claims this proves he's not seeing contrails so concludes they're sprayed chemicals.


As we know, the oft used criteria for contrail formation persistence is a RH of ~65% so where's the disconnect here? I feel a layman's explanation would make an excellent exercise as this sort of "proof" is becoming more prevelant.

Last edited by a moderator:

M Bornong

Senior Member

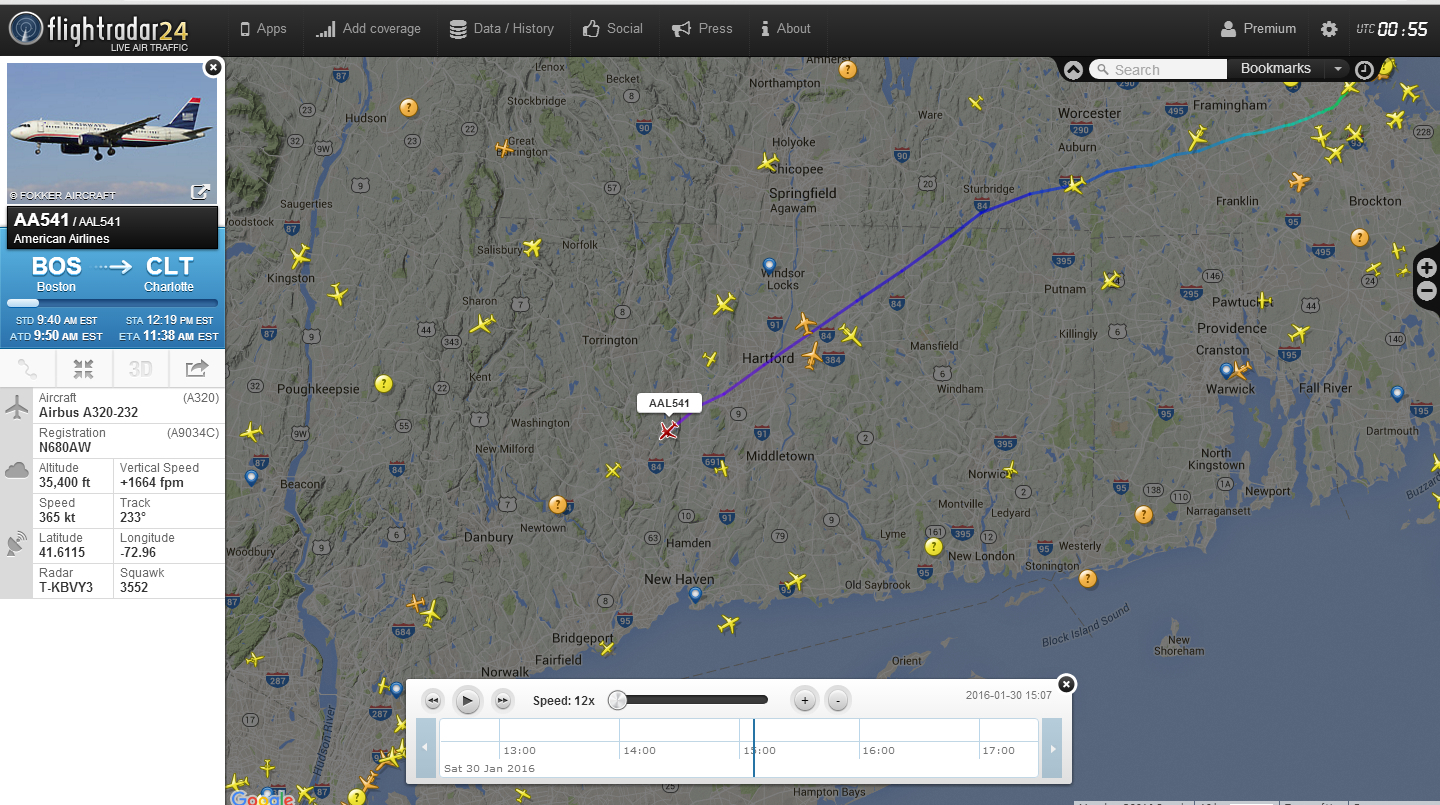

This is a possible candidate for the plane he couldn't identify, from the quick view in the video, I don't think he zoomed out far enough.



skephu

Senior Member
By the way, his statement that contrail formation requires 70% RH is wrong. There is no RH requirement for contrail formation. Only for contrail persistence.


deirdre

Moderator
Staff member
This is a possible candidate for the plane he couldn't identify, from the quick view in the video, I don't think he zoomed out far enough.
is your time right? 15:07, the plane is about 9:45 based on his vid start at 9:42


add:

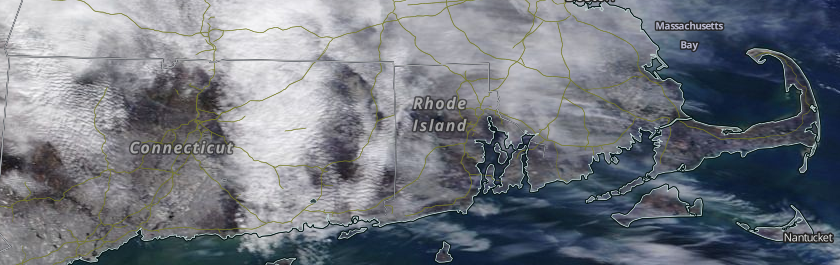

he's using "wx-now.com" for 'current weather'. I dont know what "wx-now" is since it covers the entire world, But CT news Friday night says Saturday was to be partly cloudy.
http://wxedge.com/2016/01/29/quiet-weekend-warm-start-to-february/


oops forgot my pic.. his 'current weather' is from an hour prior too according to his internet phone screen

Last edited:

Dan Page

Active Member
Why would he not use Brookhaven NY (KOKX), which is closer, or Albany NY (KALB) which is more upwind, for upper level RH. And yes a lot can happen in 3 hours, especially if the jet stream is close by, I don't know how to access days old upper level maps, so can't show that. With regards to contrails always with temp below -50 and above 300 HPA, that is most definitely not true, I have seen and identified many flights over this area that were completely contrail-less and at altitudes up to 41,000. Very hard to spot them with no contrail, FR24 is a big help, but even then, it helps when the sun is glinting off the fuselage.
I am also seeing people posting the contrails and then beside it a map of the RH at 30,000 ft confirming (in their mind) that the RH is too low for contrail formation thus it must be a chemtrail.
With regards to the surface weather report that he shows in the video, they are pretty much all automated now and I believe the cloud detector only goes as high as 20,000 ft, if there is nothing between the ground and that limit, then it will say the sky is clear. Also there can be cloud below it's limit that does not go over the sensor during the hour, thus it will report a clear sky.


Mick West

Administrator
Staff member
Nobody should ever use a a single radiosonde sounding to predict, justify, or falsify a contrail observation. They are highly inaccurate when measuring RH at low temperatures, and almost certainly not a good representation of the conditions at the contrail.

Even if the soundings seem accurate, and predict contrails, that's more luck than anything. If you go and use those soundings to show that the conditions are right for contrails, then that basically validates the argument that trails are forming in other, impossible, conditions.

So unless you know the balloon went though the trail, and it had a chilled mirror hygrometer, then using that data is at best pointless, and at worst highly counterproductive.

Last edited:

Henk001

Active Member
Nobody should ever use a a single radiosonde sounding to predict, justify, or falsify a contrail observation. They are highly inaccurate when measuring RH at low temperatures, and almost certainly not a good representation of the conditions at the contrail.

Even if the soundings seem accurate, and predict contrails, that's more luck than anything. If you go and use those soundings to show that the conditions are right for contrails, then that basically validates the argument that trails are forming in other, impossible, conditions.

So unless you know the balloon went though the trail, and it had a chilled mirror hygrometer, then using that data is at best pointless, and at worst highly counterproductive.
Is there a way to find out what kind of hygrometer is used for a particular sounding?


Dan Page

Active Member
Is there a way to find out what kind of hygrometer is used for a particular sounding?
There is a very good writeup on the two main types of hygrometers used worldwide, here:
http://onlinelibrary.wiley.com/doi/10.1029/2003GL016985/full
As Mick said, both have significant limitations in temps below -40, one being that it reads too dry, and two being that there is a time lag of 10 seconds at -20 to 80 seconds at -60, and that is for the better reference chilled mirror hygrometer. After reading through all the info, it was clear to me that RH measurements at temps below about -40 are not at all reliable and have a significant dry bias. Here are some excerpts:

It also occurred to me, what if many aircraft were equipped with sensors that automatically sent wx data to ground stns or satellite every 15 mins or so, they could be more accurate and reliable and would provide a much higher resolution picture of most of the airmass in which planes fly. The sensor equipment could be provided by the NWS, including the cost of the downlink/uplink. A worldwide system such as this would negate the need for the launching of 1000 radiosondes every 6-12 hours, and greatly improve the quality of data, including over the oceans, where radiosondes do not go. Perhaps we will see this in the future when the technology becomes cheap enough, including the satellites that would relay this data, maybe it could just be an addon to the already existing system that relays aircraft operating parameters to the airline companies on a regular basis.


cloudspotter

Senior Member
It also occurred to me, what if many aircraft were equipped with sensors that automatically sent wx data to ground stns or satellite every 15 mins or so, they could be more accurate and reliable and would provide a much higher resolution picture of most of the airmass in which planes fly. The sensor equipment could be provided by the NWS, including the cost of the downlink/uplink. A worldwide system such as this would negate the need for the launching of 1000 radiosondes every 6-12 hours, and greatly improve the quality of data, including over the oceans, where radiosondes do not go. Perhaps we will see this in the future when the technology becomes cheap enough, including the satellites that would relay this data, maybe it could just be an addon to the already existing system that relays aircraft operating parameters to the airline companies on a regular basis.
What about just using water vapour imagery from satellites?


Henk001

Active Member
What about just using water vapour imagery from satellites?
Satellites measure the total column water vapour in the atmosphere. It is very difficult to derive from that the water vapour content for a given atmospheric layer.
from: http://www.remss.com/measurements/atmospheric-water-vapor


Trailblazer

Moderator
Staff member
It also occurred to me, what if many aircraft were equipped with sensors that automatically sent wx data to ground stns or satellite every 15 mins or so, they could be more accurate and reliable and would provide a much higher resolution picture of most of the airmass in which planes fly. The sensor equipment could be provided by the NWS, including the cost of the downlink/uplink. A worldwide system such as this would negate the need for the launching of 1000 radiosondes every 6-12 hours, and greatly improve the quality of data, including over the oceans, where radiosondes do not go. Perhaps we will see this in the future when the technology becomes cheap enough, including the satellites that would relay this data, maybe it could just be an addon to the already existing system that relays aircraft operating parameters to the airline companies on a regular basis.
Much of the weather data that goes into the forecasting models already comes from routine airline flights. Tens of thousands of such observations go into each six-hourly run of the NOAA's GFS model, for instance.

Only a small proportion of the aircraft supplying this data also provide water vapour measurements, but I believe this is changing. From a quick search:

http://ocwws.weather.gov/afp/resources/AircraftWxObs-Jan07RAM.ppt


Also see this 2014 Bloomberg article. It states that fewer than 1% of commercial aircraft have the humidity sensors. http://www.bloomberg.com/news/artic...ecome-weathermen-as-sensors-upend-forecasting


Mick West

Administrator
Staff member
As Mick said, both have significant limitations in temps below -40, one being that it reads too dry, and two being that there is a time lag of 10 seconds at -20 to 80 seconds at -60, and that is for the better reference chilled mirror hygrometer. After reading through all the info, it was clear to me that RH measurements at temps below about -40 are not at all reliable and have a significant dry bias.
It's not just that they have a dry bias, they also have a "No Response Level", which is an altitude above which they stop responding to changes in humidity and either return a fixed low value, or zero. Have a look at this graph of three types of RH meters with altitude. SW (red) is the accurate one. The other two have a dry bias and then stop working above 8,500m (~28,000 feet, just when you need them to be accurate).



Dan Page

Active Member
It's not just that they have a dry bias, they also have a "No Response Level", which is an altitude above which they stop responding to changes in humidity and either return a fixed low value, or zero. Have a look at this graph of three types of RH meters with altitude. SW (red) is the accurate one. The other two have a dry bias and then stop working above 8,500m (~28,000 feet, just when you need them to be accurate).

Yes, I did see that in the web site I posted, just neglected to mention it.


Ross Marsden

Senior Member
The data has to be used with caution.
There is a known dry bias in the measured RH; the modest quality instrument is operating at the limit of its capability.
User needs to be aware that the data is times in UTC, not local time.
RH at a point is quite variable in time, and can vary markedly in the horizontal as well.

Modeled RH is a better indication, but that too has limitations.
