Debunked: Chemtrail Plane and Other Unlabeled Photos from Facebook etc.

Mick West

Administrator
Staff member
There's been a lot of photos stuck up on the internet without a description of what they are, with the suggestion that they are related to the "chemtrail" theory. I've collected a lot of the earlier ones on contrail science:
http://contrailscience.com/contrail-or-chemtrail/

and there's a thread here that collects a lot of the ballast barrel photos:
https://www.metabunk.org/threads/661-Debunked-Chemtrail-Plane-Interior-(Ballast-Barrels)

The thing is, these photos all came from somewhere, and that original location had the information about what they were. In every case the person who re-appropriated the photo for the chemtrail story had to deliberately ignore the original description. At best this might be an oversight, but it really seems like it can't be anything more than deliberate deception, a conscious effort to bolster the story by putting up loads of "suspicious" photos which are actually not suspicious at all, if they had told you where they found them, and what they were.

There's a lot of this going on on Facebook right now. The vast majority of these photos are are posted without attribution and which are then shared by chemtrail enthusiasts to various chemtrail groups as "evidence", when in reality they are anything but.

While it's usually easy to identify a photo with a Google image search, over time, if a photo gets popular enough then it will end up on hundreds of chemtrail blogs, and spam mirrors of those blogs, and the original source can be harder to track down. For example, the classic image of an icing test nozzle gives nearly 500 results:


So for debunking purposes it's useful to identify the images as soon as possible, which also might help prevent them spreading so fast, and acquiring misleading titles. So this (sticky) thread is intended as a place to post these photos, with links to the original source, and an explanation of what they are. And if anyone seems to be misrepresenting them, then that misrepresentation should be exposed and debunked.

Guidelines:

  1. One photo per post, so that people can link directly to the post.
  2. Link to the misleading usage
  3. Include the photo as it is used on the Facebook page, so Google can find this page easier
  4. If the Facebook description or comments include misleading or inaccurate information then copy that
  5. Add a link to the original source of the image
  6. Include a copy of the original photo if it is significantly different
  7. Copy text from the original source explaining what it is
  8. Add additional photos of the object/scene if they help understand it
  9. Add your own additional explanation as needed
The quickest way to identify images to is use Google images
http://images.google.com


Note, you can't drag images directly from the timeline, click on the image first to view it in "theater" mode, then drag from there.

I invite the original posters of these photos to respond with corrections to any post below, which you can do by posting here, on my Facebook page, and/or on your facebook page. If I have got anything wrong, please point it out, and I will immediately correct it.

Last edited:

Mick West

Administrator
Staff member
https://www.facebook.com/photo.php?...65176835.61035.100003622311420&type=1&theater

No description, one comment:
Cecil Donovan Poison
Content from External Source
("Liked" by Moon)

Original Source:
http://www.cassidian.com/en_US/web/guest/cassidian-produces-1000th-target-drone

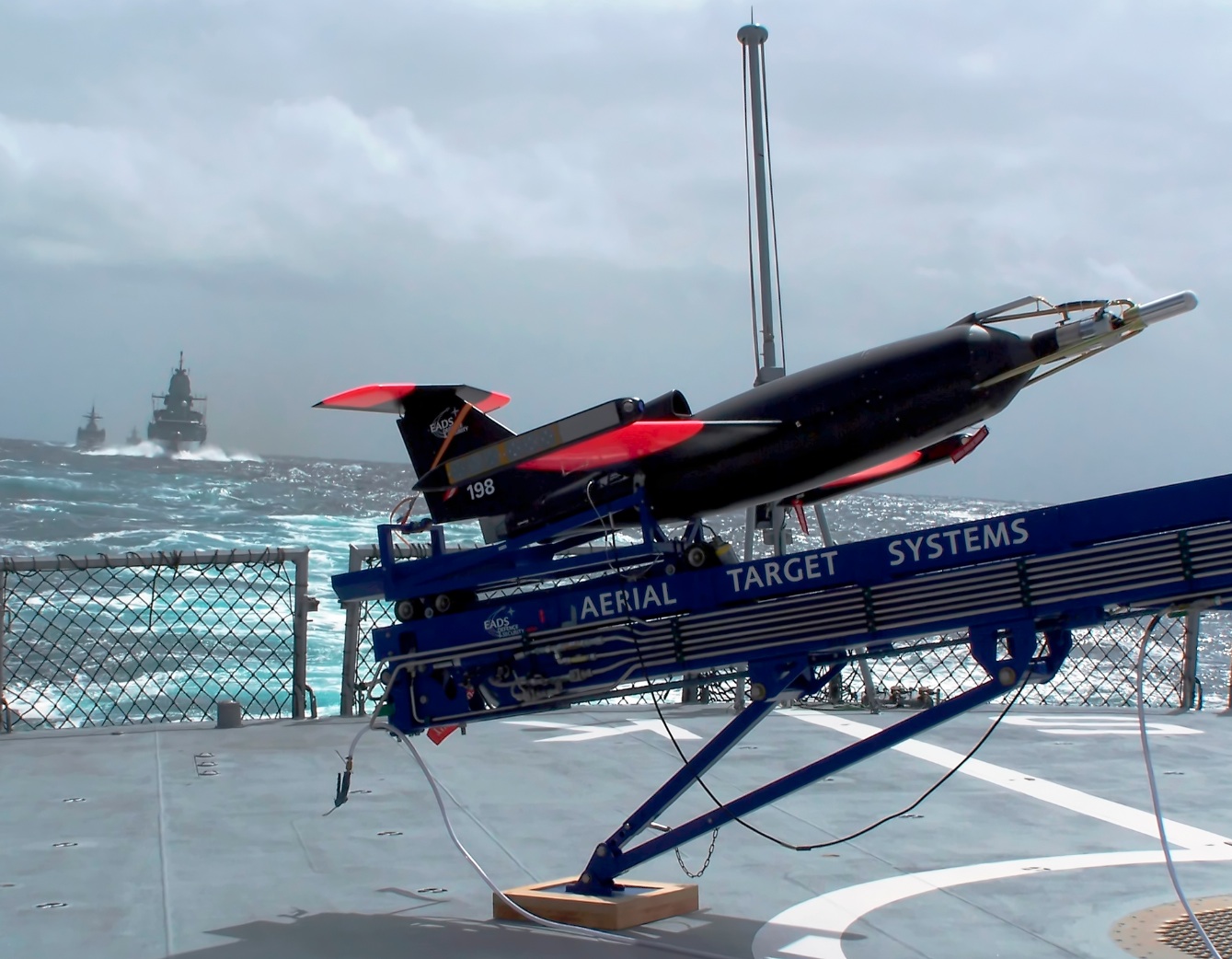

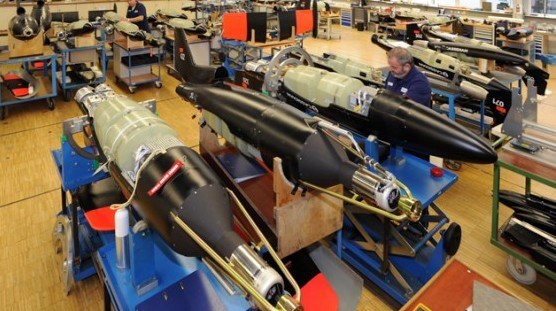

Cassidian has produced its 1,000th target drone at its site in Friedrichshafen. On Tuesday, the DT 45 target drone was finalised for use by the German Navy. Target UAVs are used to train air defence units and flight crews as well as to test guided missiles.Since 2002, Cassidian has been constructing target drones that can be equipped with a wide variety of sensors and transmitters. This includes, for example, infra-red and radar emitters for simulating threat scenarios, such as hostile aircraft or missile attacks.
"For over ten years now, the units have been using our target drones for air defence training for all armed forces on their respective weapon systems, and for practising the interaction between all participants," said Stefan Baten, Head of Target Systems & Services. He went on to add: "By providing armed forces with the ability to portray complex scenarios, we can offer them clear added value in terms of tactical combat."
Content from External Source
Basically they are small high speed drones used for target practice. Here's one ready to launch:

Last edited:

Mick West

Administrator
Staff member
https://www.facebook.com/photo.php?...65176835.61035.100003622311420&type=1&theater


Original Source
http://defenceforumindia.com/aero-india-2013-air-show-rehearsals-by-aircraft-1743

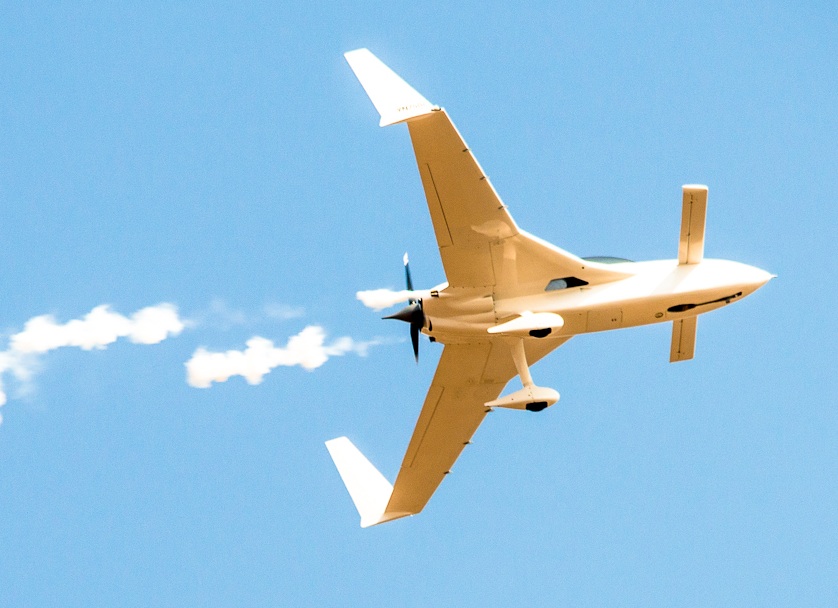

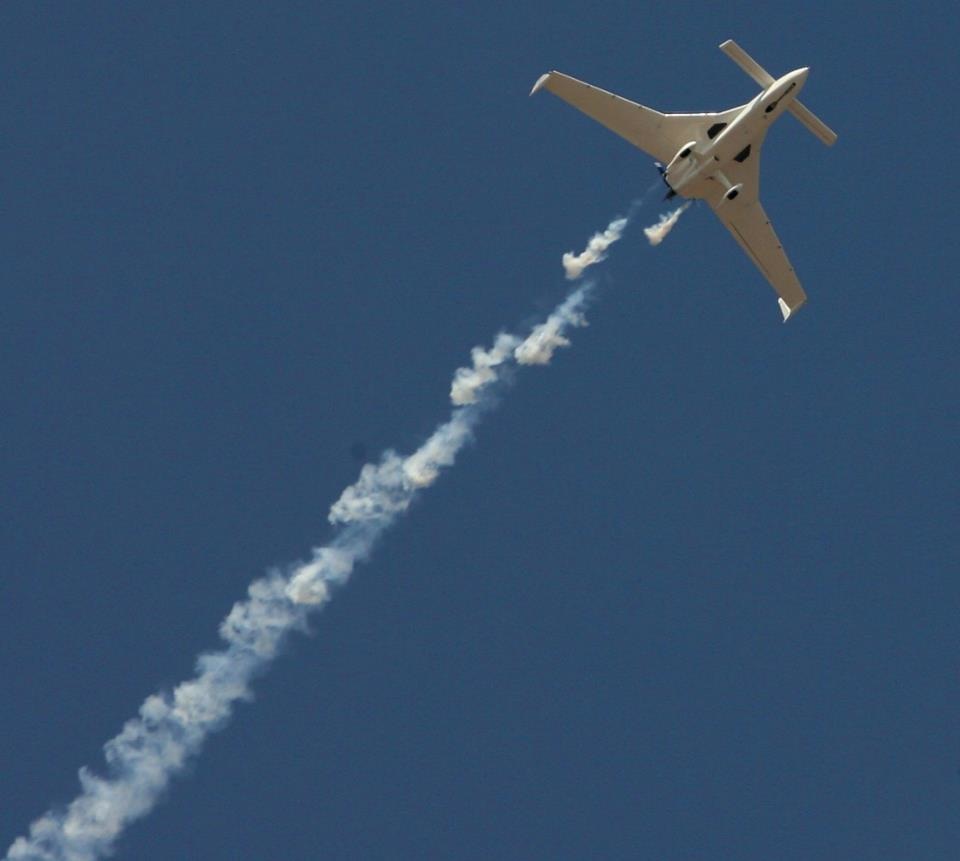

This is a Rutan Long-EZ at the 2013 Aero India air show.
http://en.wikipedia.org/wiki/Rutan_Long-EZ

The white trail is not a contrail, it's aerobatic smoke - i.e. smoke specifically intend to leave a trail for use in sky-writing or aerobatic displays. It comes from injecting some kind of oil into the hot exhaust (a "smoke system"). The following photo is from the Wikipedia page:


I'm not entirely sure if the "puff-puff" comes from the alternating exhausts, or it's being chopped by the propellor. But I think more likely the former.

Here's a smoke system in operation on a different plane:
http://achtungskyhawk.wordpress.com...tional-airshow-varazdin-11-12-07-2009-part-1/

Closeup of the smoke system. As with most such systems, the smoke is generated by injecting Diesel or paraffin into the exhaust (which can also be tinted to change its color).
Content from External Source

Last edited:

Mick West

Administrator
Staff member

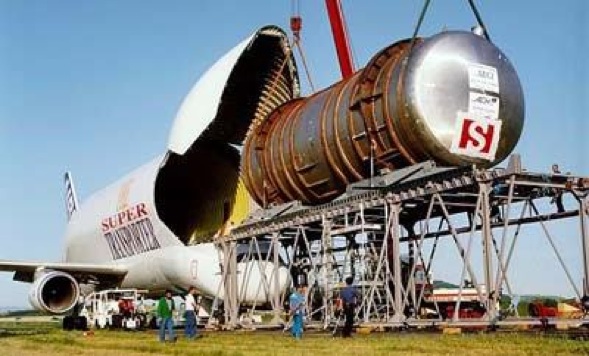

https://www.facebook.com/photo.php?...65176835.61035.100003622311420&type=1&theater

Comments:
21 people like this.
16 shares

Raul Amado Garcia Bessone Menudo tanque le ponen al avión ahí estan los patogenos..
Often tank put the plane there are the pathogens... (Translated by Bing)
6 hours ago · Edited · Like · 3

Maggie Mae Hite Wtf is that???just a big bucket of aluminum oxide?
6 hours ago · Like · 2

Madisonstar Moon hahahah
6 hours ago · Like

Madisonstar Moon well we can see that the tank it fitted for the jumbo airbus super tanker
6 hours ago · Edited · Like

Monika Moehwald-Doelz http://www.youtube.com/watch?feature=player_embedded&v=mtUf390jsZM#!
5 hours ago · Like · 4

Madisonstar Moon nice Monika Moehwald-Doelz I am really glad u posted this
5 hours ago · Like · 2

Maggie Mae Hite Im scared to watch her post!!hahaha....no really...i am.
5 hours ago · Like · 1

Madisonstar Moon if we could only use technology to better mankind instead of destroying it
5 hours ago · Like · 5

Cecil Donovan Then they wouldn't have there way with us...and know that ain't happnin
3 hours ago via mobile · Like · 1

Cecil Donovan @MMD^...I knew it was man made...because there rachets...I just never researched it...Thnx
about an hour ago via mobile · Like
Content from External Source

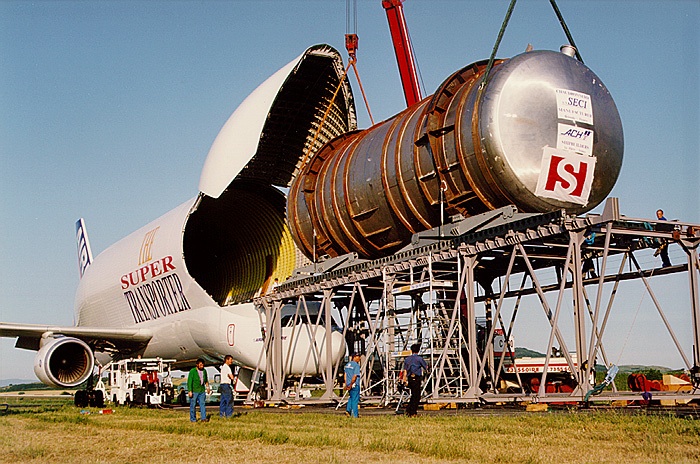

It's not a "super tanker", it's a Super Transporter, the A300-600ST.

Original Source: http://www.aerospace-technology.com/projects/stbeluga/
In June 1997, Beluga was used to transport a chemical tank of 36t, 17.6m in length and 6.5m in diameter. The chemical tank and its supports weighed 45t. The Beluga transported the tank from Societe Europeenne de Chaudronnerie Industrielle (SECI) in Central France to Le Havre in Northwest France for installation on a ship. In a two-year period, Beluga carried 18 tanks.
Content from External Source


Since the Beluga's payload is 47t (metric tonnes), and the tank weighs 45t, then the only way it's going in the plane is if it's empty. Very obviously this is nothing to do with spraying.

(Science warning: with dimension of about 17m long, 6m diameter (rounding down to account for wall thickness), that's 17*3*3*3.14 = 480 cubic meters, if it were filled with just water it would weigh 527 metric tons. More than ten times the payload of the Beluga)

Last edited:

Cairenn

Senior Member.
Not exactly the right place for this, but has anyone managed to figure out how much a contrail cloud might weigh? It strikes me that it would be impossible for them to be entirely 'sprayed' because of the weight issue


Mick West

Administrator
Staff member
Last edited:

Ross Marsden

Senior Member.
There is a 1972 paper about it here:
Measurements of the Growth of the Ice Budget in a Persisting Contrail


ABSTRACT
An experiment was conducted with the NCAR Sabreliner to measure the ice water content (IWC) and
the total ice budget Within its contrail. Particle size distributions were measured with an optical-array
particle size spectrometer. The experiment was performed in a region of the atmosphere void of natural ice
crystals (Cirrus) but estimated to be above ice saturation and favorable to ice crystal growth.

The IWC measured was found to be in excess of 0.1 gm near the contrail axis with average values oi a
few hundredths of a gram throughout the contrail. The measured water mass within the contrail was found
to be four orders of magnitude greater than that computed as a combustion product.
Average crystal sizes
of nearly 0.5 mm allow for a transfer of moisture at generation level to much lower levels before re-evaporation.
Because 0f the magnitude of the measured effect and its believed frequent occurrence, the overall effect
of sub-tropopause jet traffic is likely to lower the water abundance at the most traveled levels.

The total number of ice crystals produced is similar to the number of droplets expected in the initial
liquid Water contrail. All ice crystals appear to be produced through the freezing of droplets.


The rate of diffusional spreading of the contrail corresponds to an eddy diffusivity of 1.5)(105 cm2 sec"\.
No turbulence was detected and the diffusion appears isotropic after the rapid dissipation of the initial
vertically organized turbulent Wake.


TWCobra

Senior Member.
Hi Cairenn,

The other parameter to know regarding the weight of a contrail is the fuel flow of the particular aircraft. Here is a rough guide of average fuel flows by aircraft type, always remembering that the fuel flow will be higher in the early part of the cruise when the aircraft is heaviest.

A380: 13,000 kg/Hr
B747-400: 10,000 kg/hr
B777: 7,000 kg/hr
A340-300: 6,600 kg/hr
A330: 6,000 kg/hr
B767: 5,000 kg/hr
B757: 4,000 kg/hr
B737: 2500 kg/hr
A320: 2500 kg/hr

To find the weight of a contrail that persists for one hour apply the fuel flow figures for the applicable type and multiply by 13,000. The result, in metric tonnes, is why chemtrailing is physically impossible.


Mick West

Administrator
Staff member
https://www.facebook.com/photo.php?....134977926632950.26372.100003622311420&type=1

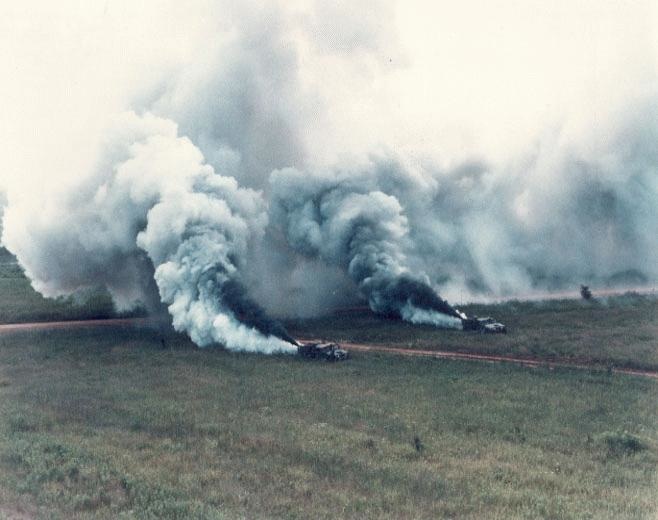

It's a smoke screen generator, photos from at least 13 years ago.

Facebook Comments:
Linda Stoyka ~ good grief.
10 hours ago · Like · 1

Madisonstar Moon they are testing chemical weapons Linda
10 hours ago · Edited · Like · 2

Manuela Costa On the ground? By trucks? Do you know where this is Madison?
9 hours ago · Like · 1

Madisonstar Moon Manuela Costa the pic had no location available but that's probably because it was undisclosed.
9 hours ago · Like

Manuela Costa hmmmmm.......
Content from External Source
Original Source:
http://www.fas.org/man/dod-101/sys/land/m56.htm


Saturday, February 05, 2000

M56 COYOTE
GENERATOR, SMOKE, MECHANICAL: MOTORIZED DUAL PURPOSE UNIT:

MISSION: The M56 Coyote enhances the division and corps commander's ability to deny the enemy information, to protect his forces, and to dominate the maneuver battle. Six M56 Coyotes form the smoke platoon. The M56 will operate in support of light and airborne maneuver units by disseminating smoke on the move and from stationary positions to defeat enemy sensors and smart munitions such as tank thermal sights, guided munitions, directed energy weapons, and other systems operating in the visual through far-infrared regions of the electromagnetic spectrum.
Content from External Source

Last edited:

Mick West

Administrator
Staff member
https://www.facebook.com/photo.php?....249539065176835.61035.100003622311420&type=1

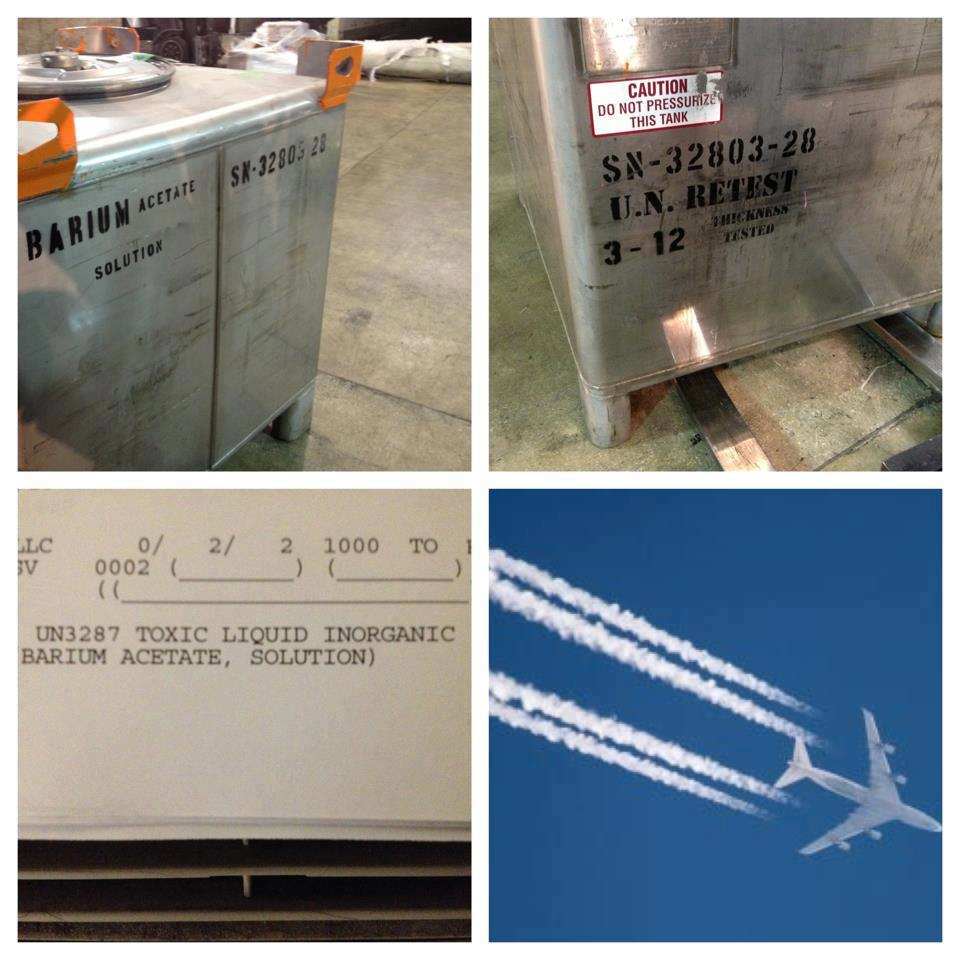

The implication here is obviously that the tanks of toxic chemicals are being sprayed out of a plane.

The tank shown here in a 350 gallon steel IBC (Intermediate Bulk Container) a standard container in the chemical industry.This looks like one made by Hoover, the Liquitote brand:
http://www.hooversolutions.com/liquitote-ibc.html

Barium acetate is an industrial chemical used in printing. All this image shows is that Barium acetate solution exists, and is sometimes shipped in IBCs.

The "UN" might seem like a nefarious reference to the United Nations (and hence the New World Order). It actually DOES refer to the United Nations, UN3287 is simply a United Nations identifier meaning "Toxic Liquid, inorganic", like it says on the print-put there.
http://en.wikipedia.org/wiki/List_of_UN_numbers_3201_to_3300

Last edited:

justanairlinepilot

Senior Member.
We see UN all the time in training. We are not allowed to ship hazardous materials on our passenger commercial aircraft (liability) but we are still responsible for recognizing the material for the possibility it gets put on the aircraft.

U

Unregistered

Guest
bla bla bla...how much do they pay you for bla bla? i have hundreds of photos and footages from Portugal...if you whant i can show them to you...


Mattnik

Moderator
Select, say, the 5 that best support what you believe are chemtrails and go for it. Date and location of each will be useful too.


Mick West

Administrator
Staff member

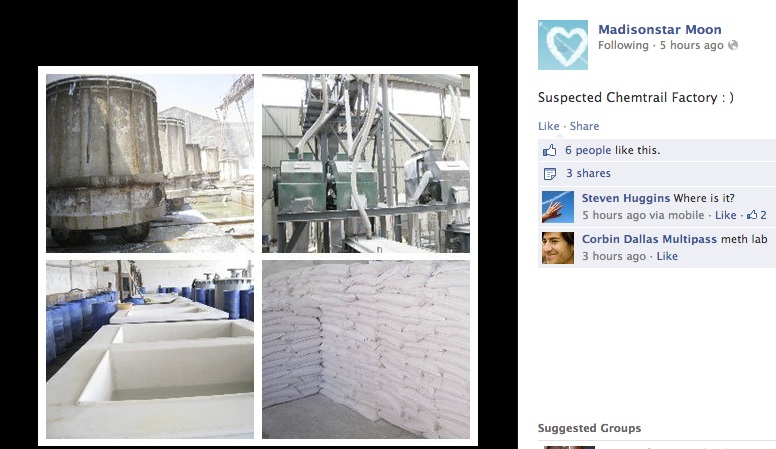

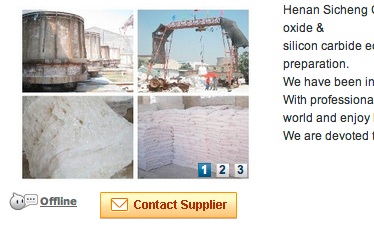

A supposed "chemtrail factory"

https://www.facebook.com/photo.php?...65176835.61035.100003622311420&type=1&theater

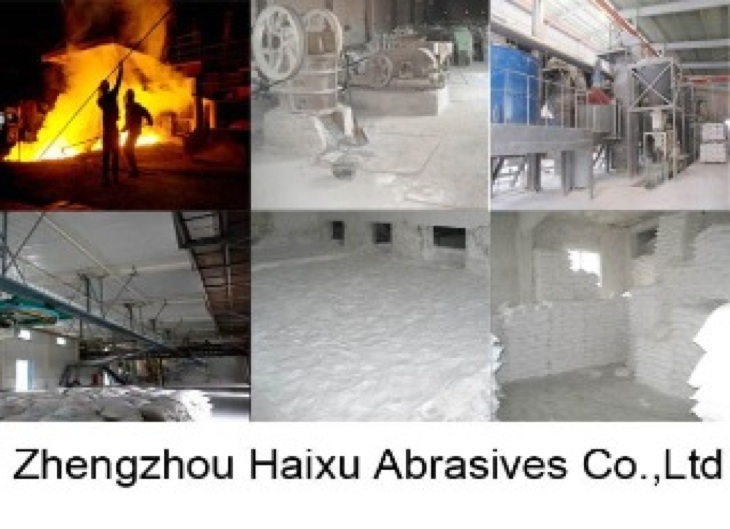

This is Henan Sicheng Co., Ltd formarly the Zhengzhou Haixu Abrasives Co in Gaocun Xiang, Xingyang City, Zhengzhou, Henan, China
http://zzhaixu.en.alibaba.com/

Zhengzhou Haixu Abrasives Co., Ltd, founded in 1999, is specialized in White Fused Alumina, Brown Fused Alumina, Silicon Carbide and other related products.
Content from External Source
http://sichengtrade.en.alibaba.com/company_profile.html

Henan Sicheng Co., Ltd, manufacturer & supplier of abrasive product aluminum oxide &
silicon carbide ect for sandblasting, grinding, polishing, surface cleaning and preparation.
Content from External Source
Abrasives are things like the coating for sandpaper, which is a very common use of Alumina (Aluminum Oxide).

http://en.wikipedia.org/wiki/Aluminium_oxide#Applications
Aluminium oxide is used for its hardness and strength. It is widely used as an abrasive, including as a much less expensive substitute for industrial diamond. Many types of sandpaper use aluminium oxide crystals. In addition, its low heat retention and low specific heat make it widely used in grinding operations, particularly cutoff tools.
Content from External Source
And being as it's so hard and abrasive, it's the last thing you'd want to put though a jet engine.

Last edited:

ottomaddick

New Member
Not exactly the right place for this, but has anyone managed to figure out how much a contrail cloud might weigh? It strikes me that it would be impossible for them to be entirely 'sprayed' because of the weight issue
A contrail or anything suspended in the air must have, atmospherically speaking, neutral buoyancy. It could have weight, but weight would affect its ability to remain aloft as it would eventually descend to a lower and presumably warmer level where the moisture would return to a gaseous state. Or...it could descend to a colder altitude where it moisture would form vapor or even a condensate (water in liquid form...we call rain).
I was happy to find this forum. Mostly because I want to help teach people the difference between science and ignorance. It would seem that these chemtrail nut jobs are trying to put the airline, and aviation business in general out of business. I am not looking forward to a stagecoach ride from Fl to AZ if they get their way.


Mick West

Administrator
Staff member
A contrail or anything suspended in the air must have, atmospherically speaking, neutral buoyancy. It could have weight, but weight would affect its ability to remain aloft as it would eventually descend to a lower and presumably warmer level where the moisture would return to a gaseous state. Or...it could descend to a colder altitude where it moisture would form vapor or even a condensate (water in liquid form...we call rain).

Contrail fall rate is dependent on particle size, not weight or buoyancy in the normal sense. Ice is a lot denser than air, but very tiny ice crystals had a very high surface area to mass ratio. A long fully developed contrail can weigh hundreds of tons.


Mick West

Administrator
Staff member
https://www.facebook.com/photo.php?...65176835.61035.100003622311420&type=1&theater


This is from:

http://www.defense.gov/News/NewsArticle.aspx?ID=116894
Air Force reservists assigned to the 302nd Airlift Wing load a U.S. Forest Service Modular Airborne Fire Fighting System unit onto a C-130 Hercules at Peterson Air Force Base, Colo., June 24, 2012. The 302nd Airlift Wing has been tasked by the National Interagency Fire Center to support wildland aerial firefighting missions in the Rocky Mountain area. U.S. Air Force photo by Ann Skarban
Content from External Source
High res image:
http://www.defense.gov/DODCMSShare/NewsStoryPhoto/2012-06/hrs_120624-F-JI045-005.jpg

Last edited:

Cairenn

Senior Member.
I see she has now blocked me. I did message her the info on it.

The blocking implies that she KNOWS that she is promoting a lie.


Cairenn

Senior Member.
Of course I am sure it will. She did ask for me to friend her, but after the battering I took on the BP spill, I have to limit who sees my wall. My friends were getting harrassed for their comments.


Mick West

Administrator
Staff member
Last edited:

TWCobra

Senior Member.

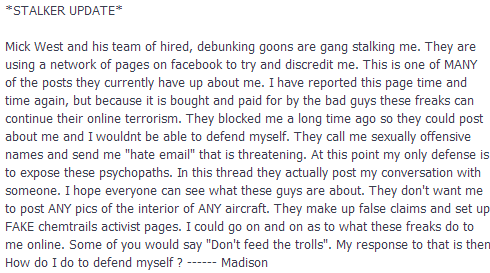

Some fairly startling claims from Madison.... hate emails... sexually offensive names etc etc etc. The last sentence needs comment. How do you defend yourself Madison? Stop posting bunk!


Example: Vortices.jpg

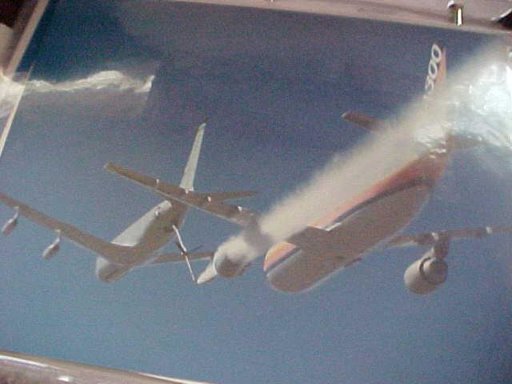

This is a photo of vortices both forming in mist behind an A340 and condensation forming over the wings. Stop posting bunk.


This is a photo of the missile countermeasures (flares) fitted to a military C130. Stop posting bunk.



Ditto the above except it is a C17. Stop posting Bunk.


Mick West

Administrator
Staff member
It's not helping that there's a bunch of other non-polite anti-CT pages that she assumes are affiliated with Metabunk, but have nothing at all to do with me. I even banned one from the Metabunk page due to the offensive name ("Petition to move [chemtrailers] to the comedy channel")


Mick West

Administrator
Staff member

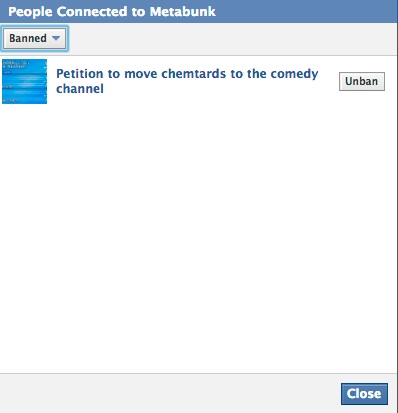

And Madison is not blocked anywhere that I know of. Certainly not here. This is the entire ban list for the Facebook page:



Perhaps Madison could share her ban list for comparison?

Last edited:

George B

Extinct but not forgotten Staff Member
It's not helping that there's a bunch of other non-polite anti-CT pages that she assumes are affiliated with Metabunk, but have nothing at all to do with me. I even banned one from the Metabunk page due to the offensive name ("Petition to move [chemtrailers] to the comedy channel")

The bad thing is there are several not-polite anti-CTers . . . it gets confusing to people who are called names, etc . . . on both sides . . . don't know how to correct this situation except to always be polite no matter what the provocations . . .


Cairenn

Senior Member.
I was polite and she banned me from her page, when all I had posted was the link to the original photo.

[...]


Belfrey

Senior Member.
Another one from Madisonstar Moon, pictures of what looks like grad students in a research airplane:
Which is pretty much what it turns out to be. They are from a CalTech group which is doing research "broadly aimed at improving our understanding of the physics and chemistry of atmospheric aerosols, at scales ranging from the urban to the global atmosphere." See here:
If there actually were materials being intentionally released into the atmosphere by "chemtrails" planes, this is a research group that would be able to detect them.
