Dark Beam in front of a Contrail, Massa, Italy [Edge Shadow]

Mick West

Administrator
Staff member


This is an excellent example of a contrail edge shadow in Italy. Edge shadows happen when a part of a contrail is lined up with the sun (from the point of view of the observer). This creates a slab of shadow through the haze, and the observer sees it edge on, so it looks like a dark beam extending in front of the contrail, often down to the ground. The curved section (and the straight section to the right) is still leaving a shadow, but because the camera is not lined up with it and the sun, you can't see it.

This example is particularly nice due to the level of detail we have about when and where it happened, August 11th, 2015, at 11:19 local time.
https://striscianera.wordpress.com/2015/08/17/ciao-mondo/

Estate 2015 .. precisamente l’11 agosto alle ore 11:19 in via Delle Pinete di Marina di Massa (Toscana – Italia) località “Partaccia” (44°01’38.5″N 10°04’07.2″E ovvero 44.027371, 10.068663).
Content from External Source

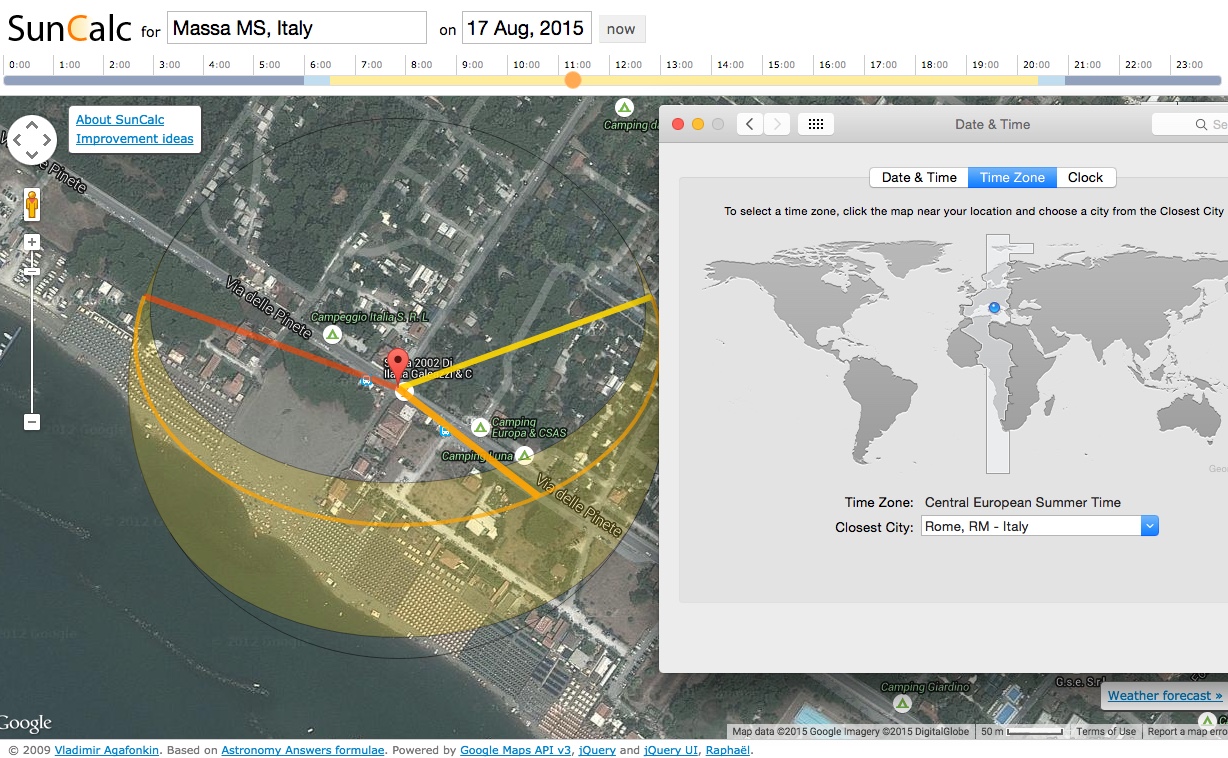

We can use suncalc.net to see where the sun is. SunCalc shows the time in the local time of the browser, so I set my computer time to Italy time (Central European Summer Time).
http://suncalc.net/#/44.0273,10.0687,17/2015.08.17/11:15


The orange line points toward the sun. It shows that the sun was nearly directly in front of the car, aligned nearly along Via delle Pinete.

Looking at air traffic at that time (CEST is UTC_2, so 9:19 UTC) we see the culprit:


Air France 1504 (Google Earth track attached)

We can view this in Google Earth, and see that it's a match:


Attachments

  • FlightAware_AFR1504_LFPG_LIRF_20150811.kml
    16.5 KB · Views: 895
